SMC water tank combined with the SMC molding panel, sealing materials, metal structure and piping system to onsite assemble together. We can assemble water tanks with 0.125m3~125,00m3 according to your need.
- Product Details
- {{item.text}}
Quick Details
-
Weight:
-
300-9500KG
-
Size:
-
different as each model
-
Weight (KG):
-
1 kg
-
Product name:
-
FRP Tank
-
Color:
-
White
-
Usage:
-
Water Treament
-
Technology:
-
Polishing
-
Shape:
-
Rectangular
-
Type:
-
Water Filter Parts
-
MOQ:
-
1set
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HW
-
Material:
-
Plywood Case, Fiberglass
-
Weight:
-
300-9500KG
-
Size:
-
different as each model
-
Weight (KG):
-
1 kg
-
Product name:
-
FRP Tank
-
Color:
-
White
-
Usage:
-
Water Treament
-
Technology:
-
Polishing
-
Shape:
-
Rectangular
-
Type:
-
Water Filter Parts
-
MOQ:
-
1set

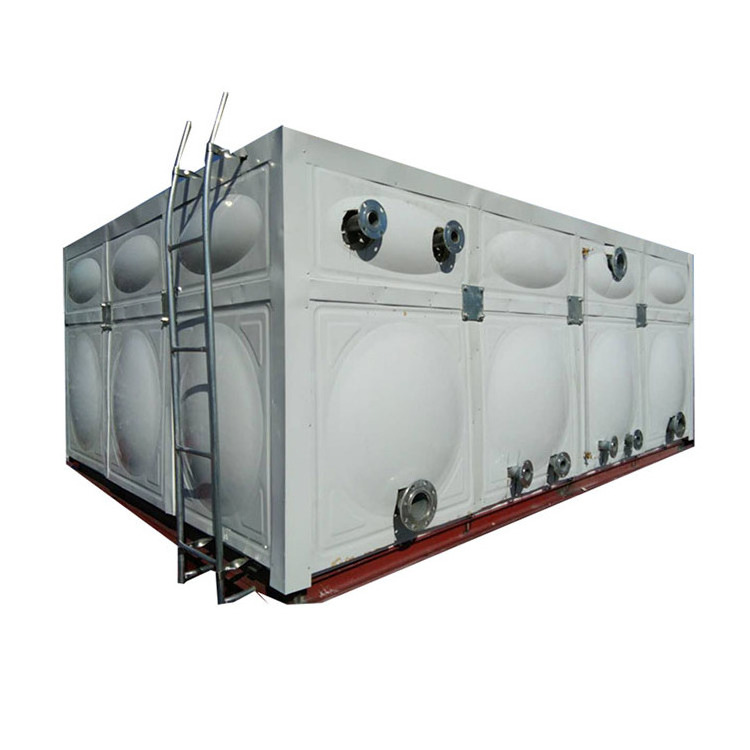

SMC FRP Water Tank
SMC Water Tank is made of fiberglass reinforced plastics which is divided into FRP modular type and SMC combination type. The major advantage is light weight, anti-rusted, non-leakage, long durable time and easy to clean. It is widely used in hotel, school, hospital and coal mine enterprise.
Characteristics of SMC water tank
1. It is the water tank of new type adopted in the world presently and is assembled by wholly good quality SMC plates.
2. Food grade resin is adopted, so the quality of water is good and clean, without pollution, high strength, light weight, corrosion resistant, nice appearance, long service life, easy to maintenance etc.
3. It is widely used in mine industry, enterprises & public institutions, houses, hotels, etc, and serves as the water storage facility for drinking water, sewage water for treatment, water for fire distinguish, and other water.
The parts about frp tank
(1) Panels (Bottom panel, wall panel, roof panel and manhole).
(2) Internal parts (Internal ladder, tie piece rod, support, flanges and rubber).
(3) External parts (External ladder, angle iron, tie piece board, bolts and nuts).
(4) U-steel base (surface treatment can be painted or hot dipped galvanized or stainless steel).
(2) Internal parts (Internal ladder, tie piece rod, support, flanges and rubber).
(3) External parts (External ladder, angle iron, tie piece board, bolts and nuts).
(4) U-steel base (surface treatment can be painted or hot dipped galvanized or stainless steel).
|
SIZE OF PANEL
|
WEIGHT OF EACH PANEL
|
|
|
|
|
|
|
|
|
||||||||
|
|
5#
|
8#
|
10#
|
12#
|
14#
|
16#
|
18#
|
20#
|
22#
|
||||||||
|
1*1m
|
12kg
|
17.5kg
|
21kg
|
25kg
|
29kg
|
33kg
|
37kg
|
41kg
|
45kg
|
||||||||
|
1*0.5m
|
7kg
|
9kg
|
11kg
|
13kg
|
15kg
|
17kg
|
19kg
|
21kg
|
23kg
|
||||||||
|
0.5*0.5m
|
4.5kg
|
4.8kg
|
5.8kg
|
6.7kg
|
7.5kg
|
8.5kg
|
9.5kg
|
/
|
/
|
||||||||
|
Thickness
|
6-22mm
|
|
|
|
|
|
|
|
|
||||||||
|
TANK HEIGHT (mm)
|
THICKNESS OF EACH PANEL
|
|
|
|
|
|
|
||||||
|
|
Bottom
|
1st layer
|
2nd layer
|
3rd layer
|
4th layer
|
5th layer
|
Roof
|
||||||
|
1000
|
10#
|
10#
|
/
|
/
|
/
|
/
|
5#
|
||||||
|
1500
|
10#
|
10#
|
8#
|
/
|
/
|
/
|
|
||||||
|
2000
|
12#
|
10#
|
8#
|
/
|
/
|
/
|
|
||||||
|
2500
|
12#
|
12#
|
10#
|
8#
|
/
|
/
|
|
||||||
|
3000
|
14#
|
12#
|
12#
|
8#
|
/
|
/
|
|
||||||
|
3500
|
16#
|
14#
|
12#
|
10#
|
8#
|
/
|
|
||||||
|
4000
|
18#
|
18#
|
14#
|
12#
|
10#
|
/
|
|
||||||
|
4500
|
20#
|
18#
|
14#
|
12#
|
10#
|
8#
|
|
||||||
|
5000
|
22#
|
20#
|
16#
|
12#
|
10#
|
8#
|
|
||||||
