Quick Details
-
Wheel Size(mm):
-
180
-
Surface Roughness(μm):
-
1.6 μm
-
Table Size(mm):
-
152X304
-
Year:
-
2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIJIN
-
Voltage:
-
220V/380V/110V
-
Dimension(L*W*H):
-
930X780X730mm
-
Weight (KG):
-
210
-
Power (kW):
-
0.55
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Surface Grinding Machine
-
Table size:
-
152x304mm
-
grinding wheel size:
-
180x32x13mm
-
power:
-
550W
-
warranty:
-
one year
-
high quality:
-
high precision
Quick Details
-
Grinding Length(mm):
-
0
-
Table Travel (X) (mm):
-
1
-
Table Travel (Y) (mm):
-
1
-
Wheel Size(mm):
-
180
-
Surface Roughness(μm):
-
1.6 μm
-
Table Size(mm):
-
152X304
-
Year:
-
2023
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DIJIN
-
Voltage:
-
220V/380V/110V
-
Dimension(L*W*H):
-
930X780X730mm
-
Weight (KG):
-
210
-
Power (kW):
-
0.55
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Surface Grinding Machine
-
Table size:
-
152x304mm
-
grinding wheel size:
-
180x32x13mm
-
power:
-
550W
-
warranty:
-
one year
-
high quality:
-
high precision

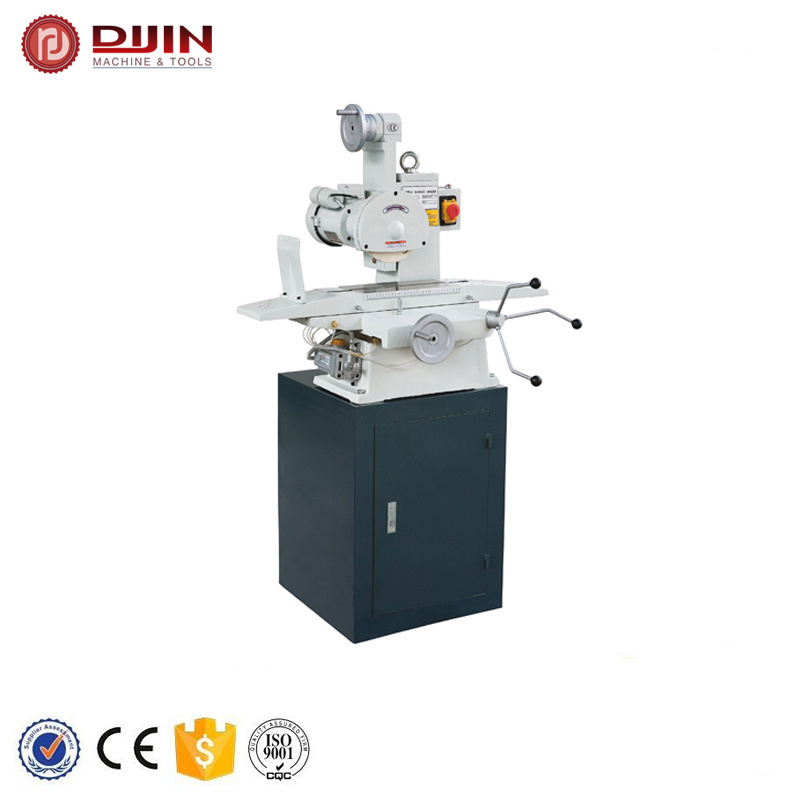

Mini surface grinder M612( MJ7115 )
specification :
|
SPECIFICATIONS |
Metric |
Inch |
|
Longitudinal stroke |
340mm |
14 |
|
cross strock |
170mm |
7 |
|
vertical strock |
210mm |
8 |
|
Table size |
152mm×304mm |
6×12 |
|
Width of T-slot |
1-12mm |
1-0.47 |
|
Cross feed per graduation |
0.02mm |
0.001 |
|
Cross feed per round |
2.54mm |
0.1 |
|
Vertical feeds per graduation |
0.025mm |
0.001 |
|
Vertical feed per round |
1.25mm |
0.05 |
|
Roughness |
1.6μm |
|
|
Size fo grinding wheel |
180mm×32mm×13mm |
|
|
Power of motor |
0.55kw |
|
|
N. W. / G.W.of machine |
210/258kg |
|
|
N. W. / G.W.of stand |
30/54kg |
|
|
Overall dimension of machineL×W×H |
930×780×730mm |
|
|
Case dimension of machineL×W×H |
930×780×1480mm |
|
|
Case dimension of standL×W×H |
720×550×550mm |
|
Standard accessory :
grinding wheel, grinding wheel adaptor,grinding wheel dresser, pad irons, tools, etc.
Optional accessory ;
permanent magnetic chuck :
precision flat vise :
machine stand
ball guide way
