Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Haifei
-
Model Number:
-
HS12F-10PZJS
-
Mounting Hole Size:
-
12mm
-
Head shape:
-
Flat round head
-
Operation Type:
-
self compound
-
Switch combination:
-
1NO
-
Lamp Color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED Voltage:
-
0-250V
-
switch type:
-
slow moving double contact
-
Shell Materials:
-
Nickel Plated Brass/Stainless Steel/Aluminium Oxide
-
touch point:
-
Sliver alloy
-
Base Material:
-
plastic
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67 IK10
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Haifei
-
Model Number:
-
HS12F-10PZJS
-
Mounting Hole Size:
-
12mm
-
Head shape:
-
Flat round head
-
Operation Type:
-
self compound
-
Switch combination:
-
1NO
-
Lamp Color:
-
Red Green Yellow Blue White Orange Purple Pink
-
LED Voltage:
-
0-250V
-
switch type:
-
slow moving double contact
-
Shell Materials:
-
Nickel Plated Brass/Stainless Steel/Aluminium Oxide
-
touch point:
-
Sliver alloy
-
Base Material:
-
plastic
-
Certification:
-
CE
Product Description
8mm 10mm 12mm 16mm 19mm 22mm 25mm 28mm 30mm push button switch latching momentary illuminated waterproof buttons switches
| The Product Parameters | |||
| Project | Parameter | Project | Parameter |
| Contact type | Slow moving single contact | Operation Schedule | Connected:1.8mm,Total:3.5mm |
| Contact Resistance | ≤50mΩ | Actuating Force | about 8N |
| Insulation Resistance | ≥1000mΩ | Mounting panel thickness | ≤4mm or customised the others |
| Dielectric Strength | 1500VAC min | Nut torque | 5~14N.m |
| Ambient Temperature | -25℃~+55℃ | Outshell/Press Key | Stainless Steel/ copper plated/ aluminum oxide |
| Electrical Life |
50000 cycles |
Base material |
PA66 |
| Mechanical Life |
Latching-200,000 cycles Momentary-1000,000 cycles |
Transmissive cover |
PC |
| Protection Level | IK10 | Pins Contact | Copper palted sliver |
| Waterproof Level | IP67 | Spring | Steel wire |
| Led Lamp Parameters | |
| Project | Parameter |
| Led Symbol |
Ring/Power Symbol/Dot/Ring+Power Symbol/Customized
|
| Led Color | Red , Green , Blue , Yellow , Orange , White , Purple , Pink |
| Rated Voltage | AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V |
| Rated Current | ≤20mA |
| Reference Life | 40,000hours |

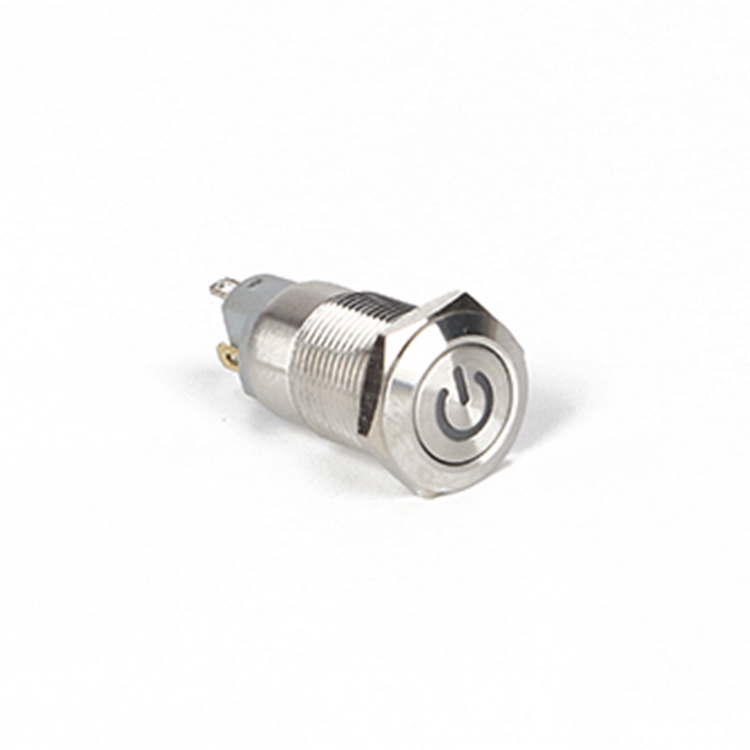

Product Show
