* Lid applicator with CO2 blanket generator; very reliable
* Intuitive operator color touch screen
* Wash downsystems for easy cleaning
- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
METO
-
Dimension(L*W*H):
-
1.20x 0.73 x1.7M
-
Weight:
-
133 KG
-
Fill Capacity:
-
500PCS/STATION|1 STATION
-
Power:
-
Singel Phase 110V-240VAC 50/60Hz is default
-
Power consumption:
-
800W
-
Gross Weight:
-
232KG
-
Packing Size (L*W*H):
-
1.35x1.0x1.93M
-
Main Material:
-
AISI304, Aluminum Alloy and POM
-
CO2 Regulator:
-
58-65 psi(0.4MPa-0.45Mpa)
-
Beer Source Requirement:
-
Temperature: 30.2 - 32F (-1 to 0C) Carbonation
-
Air Regulator:
-
87-102 psi(0.6MPa-0.7Mpa)
-
Time setting way:
-
Siemens PLC 200 smart and IEV3 Touch Screen
Quick Details
-
Machinery Capacity:
-
500BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Beer
-
Filling Accuracy:
-
99%
-
Voltage:
-
220V 50-60HZ
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
METO
-
Dimension(L*W*H):
-
1.20x 0.73 x1.7M
-
Weight:
-
133 KG
-
Fill Capacity:
-
500PCS/STATION|1 STATION
-
Power:
-
Singel Phase 110V-240VAC 50/60Hz is default
-
Power consumption:
-
800W
-
Gross Weight:
-
232KG
-
Packing Size (L*W*H):
-
1.35x1.0x1.93M
-
Main Material:
-
AISI304, Aluminum Alloy and POM
-
CO2 Regulator:
-
58-65 psi(0.4MPa-0.45Mpa)
-
Beer Source Requirement:
-
Temperature: 30.2 - 32F (-1 to 0C) Carbonation
-
Air Regulator:
-
87-102 psi(0.6MPa-0.7Mpa)
-
Time setting way:
-
Siemens PLC 200 smart and IEV3 Touch Screen
Product Overview

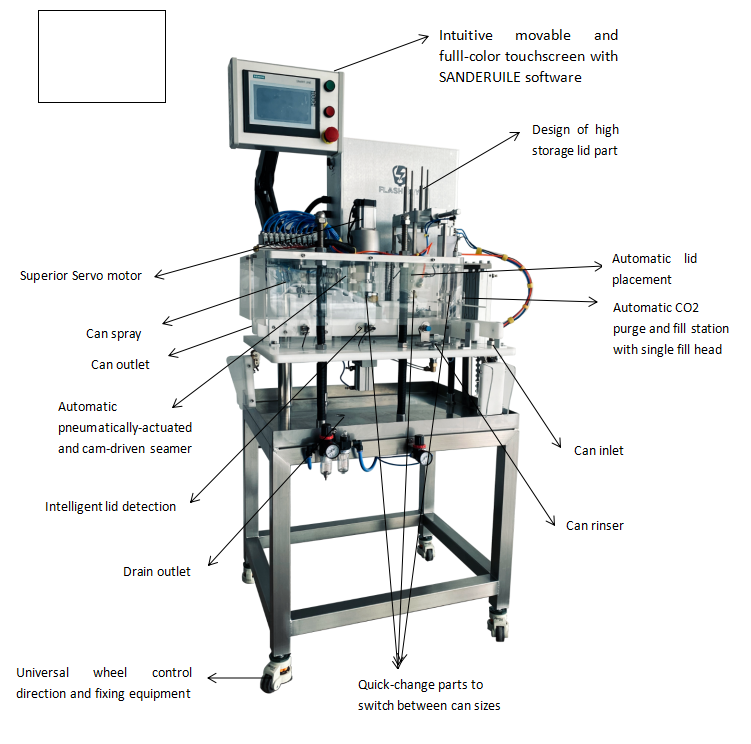

FBCS1-1 Flash Boy Canning System Can filler seamer
Capabilities
* Industry-first ability to handle Crowlers,sleek, slim, and of course, standard cans
* Tiny tabletop footprint
* Fully automated purge, fill, lid apply, seam
* Simple/quick change between can sizes
* Lids placed on foam
* Designed for ease of maintenance/operation
* Adjustable timers for all system functions
* CIP/SIP for fill system
* Industry-first ability to handle Crowlers,sleek, slim, and of course, standard cans
* Tiny tabletop footprint
* Fully automated purge, fill, lid apply, seam
* Simple/quick change between can sizes
* Lids placed on foam
* Designed for ease of maintenance/operation
* Adjustable timers for all system functions
* CIP/SIP for fill system
FEATURES AT A GLANCE
Flashboy Can filling machine
* Patent-pending cans-less wedge seamer : fast, repeatable; low maintenance
* Lid applicator with CO2 blanket generator; very reliable
* Intuitive operator color touch screen
* Wash downsystems for easy cleaning
* Lid applicator with CO2 blanket generator; very reliable
* Intuitive operator color touch screen
* Wash downsystems for easy cleaning
with can management table
Side view of canning line
Back view of canning line
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
|
|
1
|
Power
|
Singel Phase 110V-240VAC 50/60Hz is default
|
Main Material
|
AISI304, Aluminum Alloy and POM
|
|
2
|
Controls Air:
|
90 psi 1 cfm of clean, dry air
|
Beer Source Requirement
|
Temperature: 30.2 - 32F
(-1 to 0C)
Carbonation: 2.4 to 2.7 volumes CO2 (4.6 to 5.2 g/L CO2)
Pressure：22psi（0.15MPa）
Connection: 1.5" Tri-clamp |
|
3
|
Operating weight
|
133KG
|
CO2 Regulator
|
58-65 psi（0.4MPa-0.45Mpa） from plant system connected to canning system with 10mm OD barbed fitting
|
|
4
|
Equipment Size:W*L*H
|
1.20x 0.73 x1.7M
|
CO2 pressure
|
58-65 psi(0.4MPa-0.45Mpa)
|
|
5
|
Packing Size :L*W*H
|
1.35x1.0x1.93M
|
Air Regulator
|
87-102 psi（0.6MPa-0.7Mpa） from plant system connected to canning system with 10mm OD barbed fitting
|
|
6
|
Gross Weight
|
232KG
|
Air pressure
|
87-102 psi（0.6MPa-0.7Mpa）
|
|
7
|
Work Capacity
|
500PCS/STATION|1 STATION
|
Time setting way
|
Siemens PLC 200 smart and IEV3 Touch Screen
|
|
8
|
Power consumption
|
800W
|
Seamer
|
Cemented Carbide
Panasonic Motor
|
|
9
|
Dissolved Oxygen
|
≤50ppb
|
Can type
|
FBCS1-1 can be configured for nearly all standard can sizes! Change over between different can dimensions is a snap, requiring
only a few simple tools and less than 30 minutes. |
|
10
|
Rinse function
|
3S/pc（adjustable）
|
Spray function
|
2S/pc（adjustable）
|
PRODUCT CONFIGURATION
Pre flushing
Testing
Power
