Quick Details
-
machine name:
-
10kw IGBT high frequency induction heating brazing welding machine
-
power:
-
10-50kw
-
frequency:
-
high frequency
-
cooling:
-
water cooling
-
induction cable:
-
soft induction cable
-
Application:
-
induction brazing
-
Type:
-
Automation
-
Usage:
-
Automatic Control Operation
-
Function:
-
metal heat treatment
-
Certification:
-
ce iso
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Canroon
-
Weight (KG):
-
60
-
machine name:
-
10kw IGBT high frequency induction heating brazing welding machine
-
power:
-
10-50kw
-
frequency:
-
high frequency
-
cooling:
-
water cooling
-
induction cable:
-
soft induction cable
-
Application:
-
induction brazing
-
Type:
-
Automation
-
Usage:
-
Automatic Control Operation
-
Function:
-
metal heat treatment
-
Certification:
-
ce iso
Small portable handheld 10kw IGBT high frequency induction heating brazing welding machine
Contact:Sandy Liu
Mobile/Whatsapp/Wechat:0086-13715137235
Parameters of small portable handheld 10kw IGBT high frequency induction heating brazing welding machine:
|
Model |
Rated input voltage & frequency |
Rated input power |
Rated input current |
Output frequency |
Cooling water pressure / flow rate |
Dimension |
|
CR2100-010B-14TW1 |
3-phase
|
10KVA |
15A |
10~40KHZ |
4~6 bar ≥12L/min |
L: 581mm W: 283mm H: 334mm |
|
CR2100-015B-14TW1 |
15KVA |
22A |
||||
|
CR2100-020B-14TW1 |
20KVA |
30A |
||||
|
CR2100-025B-14TW1 |
25KVA |
37A |
4~6 bar ≥19L/min |
|||
|
CR2100-030B-14TW1 |
30KVA |
45A |
||||
|
CR2100-035B-14TW1 |
35KVA |
53A |
||||
|
CR2100-040B-14TW1 |
40KVA |
60A |
||||
|
CR2100-050B-14TW1 |
50KVA |
75A |

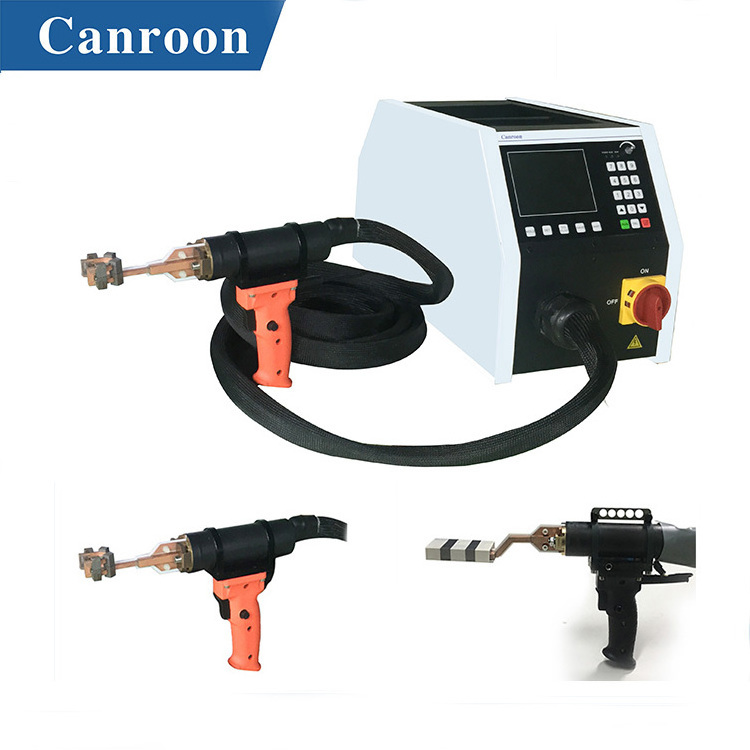

Pictures of small portable handheld 10kw IGBT high frequency induction heating brazing welding machine:
Applications of small portable handheld 10kw IGBT high frequency induction heating brazing welding machine:
Induction brazing of short circuit ring, copper wires on motor stator, rotor bar, rotor coil, heat exchanger,
brass with Ag-Cu alloy as welding solder to make slip ring, copper plate, steel bar, etc
HHT (hand held transformer) is easy to operate, and can be integrated with Robot Arm for automotion production, two buttons to control the machine working:
Inductors are important part of induction heater, it is precisely designed, manufactured by good quality material, and tested many times before outgoing, it is detachable, and can be customized accoridng to your workpiece:
Advantages of small portable handheld 10kw IGBT high frequency induction heating brazing welding machine:
· High Temp. & Fast Heating
Able to reach >1000℃ within seconds.
· Accurate Control
The interface offers two basic control modes to choose including temperature control and power control . Thus brings the benefit of wide applicability and precise control of heating process.
· Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
· Easy Maintenance
Due to modular design, the maintenance will be easy and low-cost.
· Self-Diagnosis
Once fault occurs, CR2100 will act with display of fault code, which was detailed explained in the manual book.
All of our small portable handheld 10kw IGBT high frequency induction heating brazing welding machine is carefully packed in wooden case for safe delivery, by sea, by air according to your need.
