- Product Details
- {{item.text}}
Quick Details
-
Dispensing Stroke:
-
X400*Y1200*Z50mm
-
Product Weight:
-
Max.4.5kg
-
Maximum Speed:
-
2000mm/s
-
Vision Methodology:
-
CCD
-
Injection Valve Speed:
-
200 points/s
-
Transport Height:
-
900±20mm
-
Transport Direction:
-
Left-Right; Right-Left; Left-Left; Right-Right
-
Power Supply:
-
1 PH AC 220V 50/60Hz (Option:110V to 230V)
-
Weight:
-
850 Kg
-
Dimension:
-
W1290*D1260*H1380mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ICT
-
Weight (KG):
-
200
-
Dispensing Stroke:
-
X400*Y1200*Z50mm
-
Product Weight:
-
Max.4.5kg
-
Maximum Speed:
-
2000mm/s
-
Vision Methodology:
-
CCD
-
Injection Valve Speed:
-
200 points/s
-
Transport Height:
-
900±20mm
-
Transport Direction:
-
Left-Right; Right-Left; Left-Left; Right-Right
-
Power Supply:
-
1 PH AC 220V 50/60Hz (Option:110V to 230V)
-
Weight:
-
850 Kg
-
Dimension:
-
W1290*D1260*H1380mm

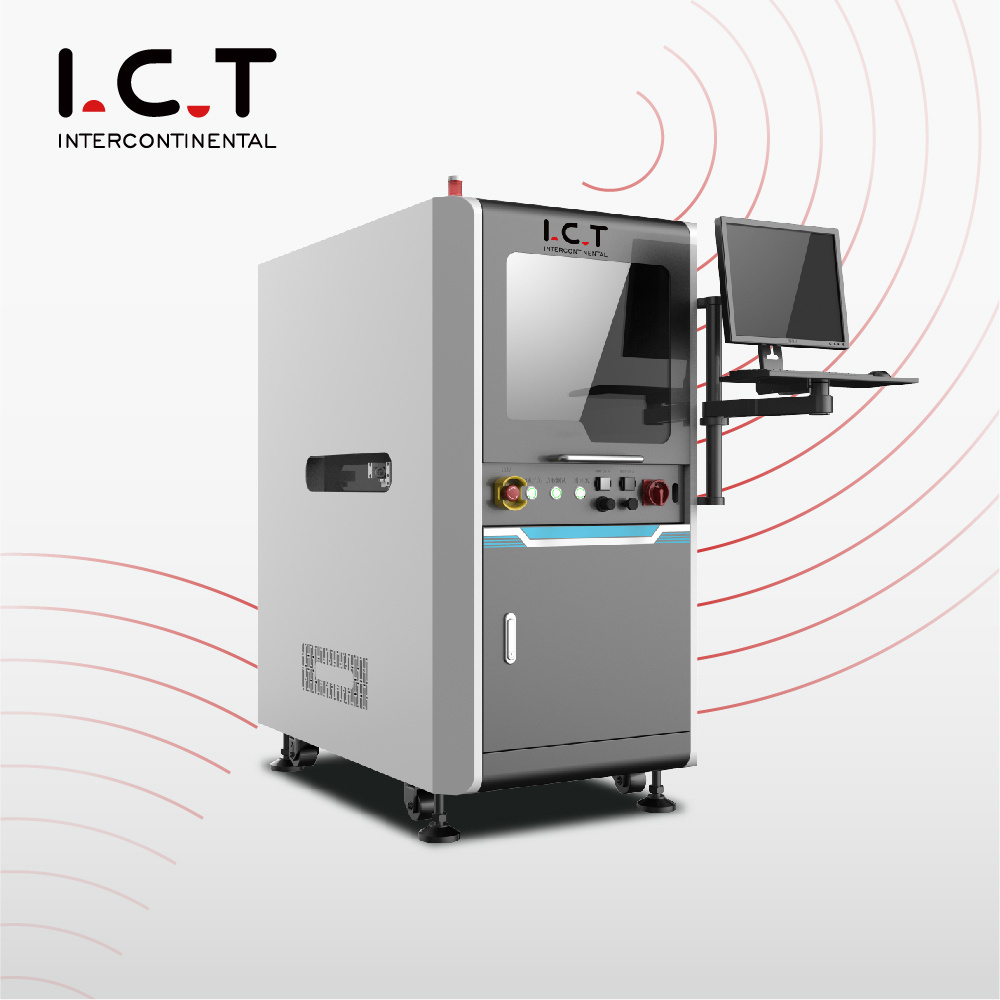

High Precision Automatic Dispensing Machine for SMT for PCB
Product Description
SMT PCBA coating line solution：
(PCBA coating loader+ selective coating machine +coating conveyor + IR curing oven)
(PCBA coating loader+ selective coating machine +coating conveyor + IR curing oven)
2. Continuous surface spraying, automatic detecting initial distance and coated width.
3. Stepper motor reciprocating coating, can be arbitrary set about PCB before and after the offset. Special aluminum alloy orbit and stainless steel conveyor chain.
4. Equipped with a fan-shaped spray glue valve, can be automatically.
5. Rubber valve automatically soak, to prevent clogging.
PCBA Coating Machine T550
Features:
1. PLC control, windows operation, fault acousto-optic alarm and menu display.
2. Continuous surface spraying, automatic detecting initial distance and coated width.
3. Servo motor reciprocating coating, can be arbitrary set about PCB before and after the offset.Special aluminum alloy orbit and stainless steel conveyor chain.
4. Equipped with a fan-shaped spray glue valve, can be automatically.
5. Rubber valve automatically soak, to prevent clogging.
6. Inlet and outlet are equipped with communication socket, can online connection with other machines.
7. Independent paint container barrels
8. Equipped with exhaust gas collection, outfalls.
2. Continuous surface spraying, automatic detecting initial distance and coated width.
3. Servo motor reciprocating coating, can be arbitrary set about PCB before and after the offset.Special aluminum alloy orbit and stainless steel conveyor chain.
4. Equipped with a fan-shaped spray glue valve, can be automatically.
5. Rubber valve automatically soak, to prevent clogging.
6. Inlet and outlet are equipped with communication socket, can online connection with other machines.
7. Independent paint container barrels
8. Equipped with exhaust gas collection, outfalls.
|
Model
|
PCBA Coating Machine I.C.T - T550
|
|
Dimension
|
L1100*W1300*H1700mm
|
|
Weight
|
Approx.750kg
|
|
PCB Size(mm)
|
50*50 ~ 450*450
|
|
PCB Thickness
|
0.4~6mm
|
|
PCB Warpage
|
<1%
|
|
Transport Height
|
900±20mm
|
|
Transport Direction
|
Left-Right; Right-Left
|
|
Transport Speed
|
Max 3500mm/s
|
|
Air Pressure
|
4.5~6Kg/cm2
|
|
Power Supply
|
AC:220±10%,50/60HZ, 2.5Kw
|
|
Control Method
|
PC Control
|
Certifications
Packing & Delivery
Our Company
About I.C.T：
I.C.T is a leading provider of factory planning solution. we have 3 wholly-owned factories, providing professional consultation and services for global customers. We have more than 22 years of electronic industry experience, through our superior resources in China to provide global customers with systematic overall solutions. We not only provide a complete set of equipment, but also provide full range of technical support and services, and give customers more reasonable professional advice. We help many customers to set up factories in LED, TV, mobile phone, DVB, EMS and other industries all over the world. We are trustworthy.
Exhibition
Customers' Feedback
Related Products
FAQ
Q: What we can do for you?
A: One-stop SMT Solution Supplier; Reliable SMT Partner
Q: Are you a trade company or manufacturer?
A: Full SMT machines maufacturer for smt line in China; OEM & ODM service are available.
Q: What is your delivery date?
A: About 35 days after receipt of pay
ment.
Q: What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
Q: What your main customers?
A: Huawei, Foxconn, Vtech, Sumida, Kemet, Vishay, Bosch, Canon, Jabil etc.
Q: Why choose you?
A: Leading SMT Supplier in China; Professional Supplier on Alibaba;
Trade assurance to USD 560,000+; Professional after-sales service team.
