Quick Details
-
Product name:
-
high quality PTFE sheet PTFE plate
-
Color:
-
White
-
Application:
-
Industry
-
Material:
-
100% Virgin PTFE
-
length:
-
20m
-
Size:
-
8*8/10*10/12*12/20*20mm
-
Package:
-
Wooden Cases
-
Temperature:
-
-180 to +260C
-
Density:
-
2.3g/cm3
-
Customized:
-
Supply
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SEONTEC
-
Model Number:
-
PTFE Sheet
-
Product name:
-
high quality PTFE sheet PTFE plate
-
Color:
-
White
-
Application:
-
Industry
-
Material:
-
100% Virgin PTFE
-
length:
-
20m
-
Size:
-
8*8/10*10/12*12/20*20mm
-
Package:
-
Wooden Cases
-
Temperature:
-
-180 to +260C
-
Density:
-
2.3g/cm3
-
Customized:
-
Supply
Products Description

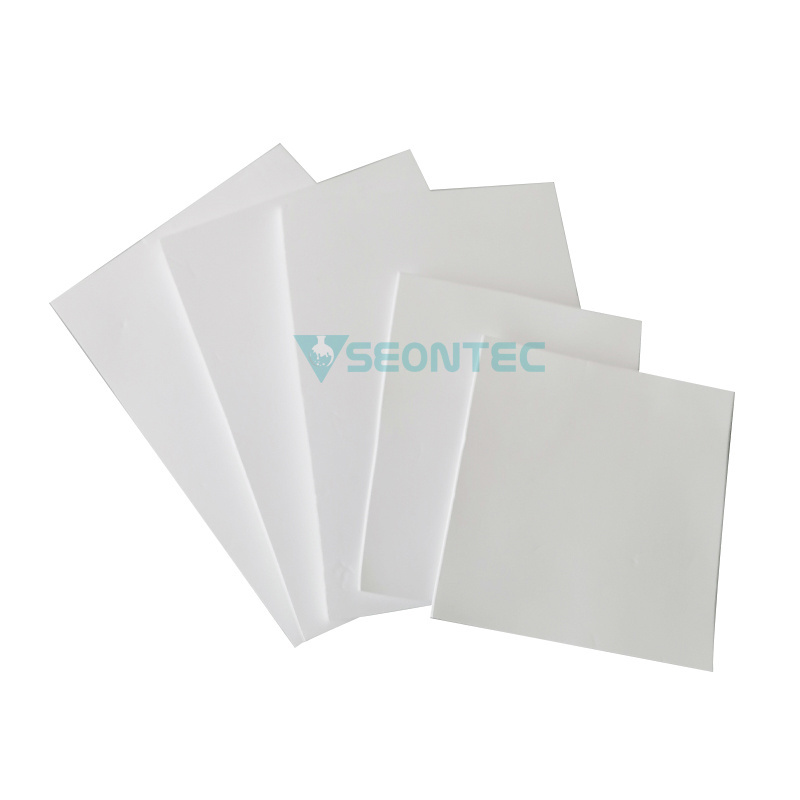

PTFE Molded SHEET
PTFE molded sheet is manufactured by molding method with PTFE granular resin. PTFE is the most chemical resistance of all known plastics. It does not age. It has the lowest coefficient of friction of all known solid materials and a wide range of practicable temperature from -180° C -+260C.
|
Properties
|
unit
|
Result
|
|
Apparent density
|
g/cm 3
|
2.10~2.30
|
|
≥Tensile strength(min)
|
MPa
|
15.0
|
|
≥Crack elongation(min)
|
%
|
150
|
|
≥Dielectric strength(min)
|
Kv/mm
|
10
|
|
PTFE Molded Sheet,Skived Sheet/Tape
|
|
|
|
|||
|
Type
|
Thickness(mm)
|
Width(mm)
|
Length(mm)
|
|||
|
PTFE Molded Sheet
|
3 ~ 100
|
150 ~ 2000
|
Max 2000
|
|||
|
Note:Size also can be customized
|
|
|
|
|||
PTFE skived sheet
PTFE skived sheet is used in reaction kettle, storage tank, valve, container, liner and gasket which work under all kinds of corrosive dielectric. It also can be used as liner of anti-corrosion pipes, oilless lubricator and adhesive material for sliding orbit of machines and dielectric at any frequencies. It has a wide range of operation temperature between -180℃-+260℃.
|
Item
|
Unit
|
Result
|
|
Density
|
g/cm3
|
2.10—2.30
|
|
Tensile strength
|
MPa
|
≥15.0
|
|
Tear elongation
|
%
|
150
|
|
Voltage
|
KV/mm
|
10
|
|
Product
|
Specification
|
|
|
|||
|
PTFE skived sheet
|
Width (mm)
|
Thickness (mm)
|
Tolerance (mm)
|
|||
|
|
300—1200
|
0.2—6.5
|
0.2mm—1mm: ±0.02 mm
|
|||
|
|
1200—1500
|
0.5—5.0
|
1mm—4mm: ±15%
|
|||
|
|
1500—2000
|
1.0—4.0
|
4mm—6.5mm: ±20%
|
|||
|
Note:Size also can be customized
|
|
|
|
|||
