Quick Details
-
Model Number:
-
2S series 001
-
Brand Name:
-
BLCH
-
Customized support:
-
NO
-

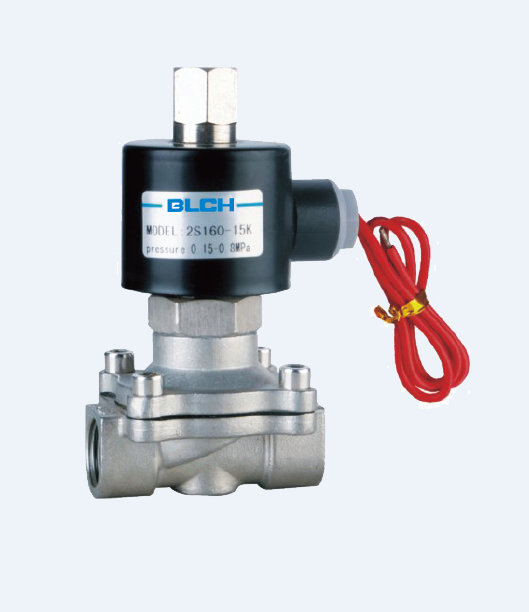

Product name:
-
water level control valve
-
Action type:
-
Guide Drive
-
Model type:
-
Normal Close Type
-
Working temperature:
-
5-80
-
Operating voltage range:
-
±10%
-
Working medium:
-
Air Water Oil Gas
-
Certification:
-
ISO9001:2008
-
Standard or Nonstandard:
-
Standard
-
seal ring material:
-
NBR EPDM OR
-
Wiring form:
-
4 series
Quick Details
-
Port Size:
-
1/8-2
-
Warranty:
-
1 YEARS
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
2S series 001
-
Brand Name:
-
BLCH
-
Customized support:
-
NO
-
Product name:
-
water level control valve
-
Action type:
-
Guide Drive
-
Model type:
-
Normal Close Type
-
Working temperature:
-
5-80
-
Operating voltage range:
-
±10%
-
Working medium:
-
Air Water Oil Gas
-
Certification:
-
ISO9001:2008
-
Standard or Nonstandard:
-
Standard
-
seal ring material:
-
NBR EPDM OR
-
Wiring form:
-
4 series
|
Model |
2S025-06 |
2S025-08 |
2S040-10 |
2S160-15 |
2S200-20 |
2S250-25 |
2S350-35 |
2S400-40 |
2S500-50 |
|
Working Fluid |
Air, Water, Steam |
||||||||
|
Action type |
Guide Drive |
||||||||
|
Model type |
Normal Close Type |
||||||||
|
flow diameter (mm) |
2.5 |
2.5 |
4 |
16 |
20 |
25 |
35 |
40 |
50 |
|
Cv value |
0.23 |
0.23 |
0.6 |
4.8 |
7.6 |
12 |
24 |
29 |
48 |
|
Port size |
1/8″ |
1/4″ |
3/8″ |
1/2″ |
3/4″ |
1″ |
1/4″ |
1/2″ |
2″ |
|
Working Fluid Viscosity |
20CST(Below) 50CST(Below) |
||||||||
|
Operating pressure kgf/cm² |
0-7 Wrter "0-5 Air" 0-7 Oil "0-5 Gas"0-7 |
||||||||
|
Max working pressure kgf/cm² |
10, 10.5 |
||||||||
|
Working temperature°C |
5~80 |
||||||||
|
Operating voltage range |
±10% |
||||||||
|
Body material |
2w:Brass; 2s:Stainless Steel |
||||||||
|
Seal ring material |
NBR EPDM OR VITON |
||||||||
