High
torque
- Product Details
- {{item.text}}
Quick Details
-
Output Speed:
-
280~~7rpm
-
Warranty:
-
one year
-
Weight (KG):
-
4 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chenxin
-
Ratio:
-
5 10 15 20 25 30 40 50 60 80 100 160 180 200
-
installation:
-
foot mounted/flange mounted
-
output shaft:
-
18 22 28 32 40
-
color:
-
blue
-
Input type:
-
inline motor
-
motor:
-
three phsae
-
power model:
-
standard model or brake model
-
Quality Guarantee:
-
One year
-
Certificate:
-
ISO9001:2008
-
Extra service:
-
OEM
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
3.2N.M~~764N.M
-
Input Speed:
-
1400rpm
-
Output Speed:
-
280~~7rpm
-
Warranty:
-
one year
-
Weight (KG):
-
4 KG
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Chenxin
-
Ratio:
-
5 10 15 20 25 30 40 50 60 80 100 160 180 200
-
installation:
-
foot mounted/flange mounted
-
output shaft:
-
18 22 28 32 40
-
color:
-
blue
-
Input type:
-
inline motor
-
motor:
-
three phsae
-
power model:
-
standard model or brake model
-
Quality Guarantee:
-
One year
-
Certificate:
-
ISO9001:2008
-
Extra service:
-
OEM

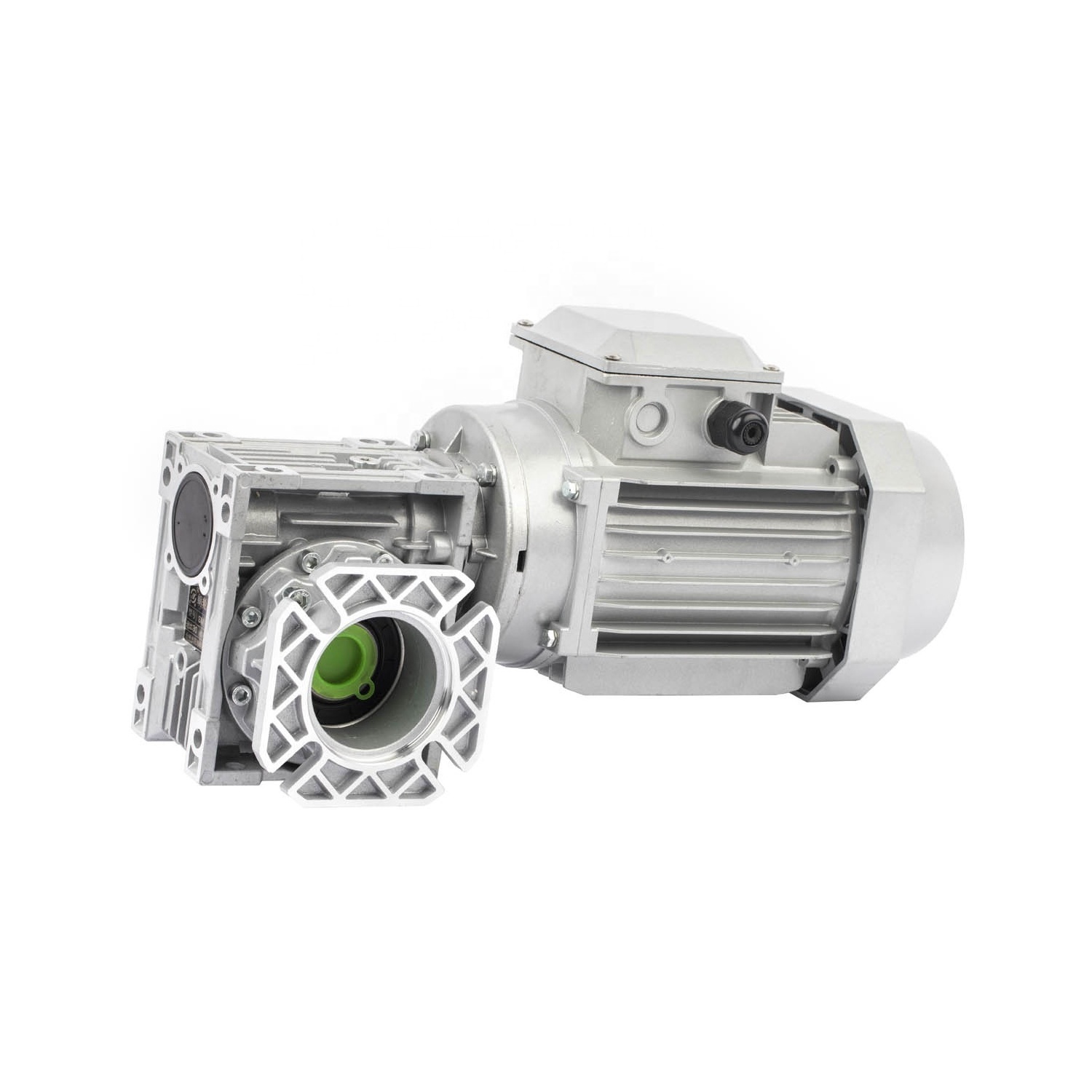

SMRV SERIES WORM
GEAR UNITS
torque
Products Description
Technical performance and selection reference
|
Motor power
|
Model
|
speed ratio
|
output speed
|
output toruqe
|
|
0.25kw 1400rpm
|
RV075
|
60
|
24rpm
|
68.0N.M
|
|
|
RV075
|
80
|
18rpm
|
80.0N.M
|
|
|
RV075
|
100
|
14rpm
|
94.0N.M
|
|
0.37kw 1400rpm
|
RV075
|
40
|
35rpm
|
74.0N.M
|
|
|
RV075
|
50
|
28rpm
|
88.0N.M
|
|
|
RV075
|
60
|
24rpm
|
97.0N.M
|
|
|
RV075
|
80
|
18rpm
|
119.0N.M
|
|
|
RV075
|
100
|
14rpm
|
139.0N.M
|
|
0.55kw 1400rpm
|
RV075
|
25
|
56rpm
|
76.0N.M
|
|
|
RV075
|
30
|
47rpm
|
87.0N.M
|
|
|
RV075
|
40
|
35rpm
|
108.0N.M
|
|
|
RV075
|
50
|
28rpm
|
128.0N.M
|
|
|
RV075
|
60
|
24rpm
|
144.0N.M
|
|
|
RV075
|
80
|
18rpm
|
177.0N.M
|
|
|
RV075
|
100
|
14rpm
|
206.0N.M
|
|
0.75kw 1400rpm
|
RV075
|
15
|
94rpm
|
66.0N.M
|
|
|
RV075
|
20
|
70rpm
|
85.0N.M
|
|
|
RV075
|
25
|
56rpm
|
101.0N.M
|
|
|
RV075
|
30
|
47rpm
|
117.0N.M
|
|
|
RV075
|
40
|
35rpm
|
147.0N.M
|
|
|
RV075
|
50
|
28rpm
|
174.0N.M
|
|
|
RV075
|
60
|
24rpm
|
196.0N.M
|
|
|
RV075
|
80
|
18rpm
|
250.0N.M
|
|
1.1kw 1400rpm
|
RV075
|
10
|
140rpm
|
66.0N.M
|
|
|
RV075
|
15
|
94rpm
|
95.0N.M
|
|
|
RV075
|
20
|
70rpm
|
122.0N.M
|
|
|
RV075
|
25
|
56rpm
|
148.0N.M
|
|
|
RV075
|
30
|
47rpm
|
171.0N.M
|
|
|
RV075
|
40
|
35rpm
|
216.0N.M
|
|
|
RV075
|
50
|
28rpm
|
263.0N.M
|
|
|
RV075
|
60
|
24rpm
|
297.0N.M
|
|
1.5kw 1400rpm
|
RV075
|
7.5
|
186rpm
|
68.0N.M
|
|
|
RV075
|
10
|
140rpm
|
89.0N.M
|
|
|
RV075
|
15
|
94rpm
|
129.0N.M
|
|
|
RV075
|
20
|
70rpm
|
166.0N.M
|
|
|
RV075
|
25
|
56rpm
|
202.0N.M
|
|
|
RV075
|
30
|
47rpm
|
233.0N.M
|
|
|
RV075
|
40
|
35rpm
|
299.0N.M
|
|
2.2kw 1400rpm
|
RV075
|
7.5
|
186rpm
|
99.0N.M
|
|
|
RV075
|
10
|
140rpm
|
131.0N.M
|
|
|
RV075
|
15
|
94rpm
|
189.0N.M
|
|
|
RV075
|
20
|
70rpm
|
249.0N.M
|
|
|
RV075
|
25
|
56rpm
|
304.0N.M
|
|
|
RV075
|
30
|
47rpm
|
247.0N.M
|
|
3.0kw 1400rpm
|
RV075
|
7.5
|
186rpm
|
135.0N.M
|
|
|
RV075
|
10
|
140rpm
|
178.0N.M
|
|
|
RV075
|
15
|
94rpm
|
258.0N.M
|
|
4.0kw 1400rpm
|
RV075
|
7.5
|
186rpm
|
180.0N.M
|
|
|
RV075
|
10
|
140rpm
|
237.0N.M
|
Specification
|
Product name
|
SNRV worm gear reducer
|
|
Ratio
|
5,7.5,10,15,20,25,30,40,50,60,80,100
|
|
Power
|
0.25~4.0 KW
|
|
Color
|
Blue/Silver/Black or on Request
|
|
Weight
|
9 Kg
|
|
Material
|
025-105 aluminum alloy, 110-150 cast iron
|
|
|
The worm material is 20Cr carburized and quenched, thesurface hardness reaches 58-62 degrees, and afterprocessing, thecarburized
laver retains a depth of 0.3-05mm |
|
|
Womm gear hub ductile iron 01500, tooth tin bronze ZOSN10-1
|
|
Oil seals
|
NAK
|
|
Single unit input versions
|
SMRV : fitted for motor flanged coupling
|
|
|
SMRV:The tail of the worm has an extension shaft
|
|
|
SRV : with input shaft
|
|
|
SRV-E : With bidirectional input shaft worm
|
|
Suitable motor pole
|
2pole,4pole,6pole
|
|
Inch size
|
Available
|
|
Personal customization
|
Available
|
|
Extra service
|
OEM
|
|
Quality Assurance
|
1 year
|
|
Features
|
High precision, stable transmission and large output torque.Also meens high quality, long service life.
|
|
|
Suitable for omni-directional installation
|
|
|
Can be easily mounted with various accessories like torque arms, different types of flanges, shafts and so on
|
|
|
Good rust resistance
|
|
Surface coating
|
First, the shell is treated by surface particle blasting, and then, through special anticorrosion treatment, RAL5010 blue plastic
powder or A7205 white plastic powder is sprayed in the shell, or the color plastic powder specified by the customer is attached tothe surface of the box body after high temperature. |
|
|
|
|
|
After polishing and sanding, it is dried at high temperature and then sprayed with RAL5010 paint in the shell.
|
We produce speed reducers in strict accordance with ISO9001 standard to provide our customers with high quality gearboxes at competitive prices. Our gearboxes are equipped with accessories from international famous brands, such as oil seal from SKF brand,lubricant from Shell brand, and bearing from NSK brand. The housing and gear are produced in our company under stringent quality control. All our products are available in large stocks, and we can also provide you with customized reducer solutions, pleasefeel confident to contact us.
Taizhou Sihai Machinery Co., Ltd.
History:
More than 20 years of experience in the manufacture of reducer products.Scale: Cover working area of 13300 square. meters,have more than 113 employees.
Technology: A group of professional . technical engineers and a strong R&D team.
Management: Scientific ERP management and strict quality control system.
Equipment: 50 CNC lathes,6 machining. centers, 6 gear grinding machines, 2 high-speed.hard hobbing machines, 12 gear hobbing
machines. 10 CNC cylindrical grinding machines,4 CNC internal grinding machines 1spectrometer, high-speed gear shaping 1 machine,
2 gear measuring centers 1 coordinate measuring instrument.
lnnovation: Continuously diversify products range to satisfy customers'needs.Production capacity: 1000 pcs/day.
Long-term supplier of world-class companies: t he main markets are in Southea st Asia, Europe, Middle East.
Marketing model: All export business.
Technology: A group of professional . technical engineers and a strong R&D team.
Management: Scientific ERP management and strict quality control system.
Equipment: 50 CNC lathes,6 machining. centers, 6 gear grinding machines, 2 high-speed.hard hobbing machines, 12 gear hobbing
machines. 10 CNC cylindrical grinding machines,4 CNC internal grinding machines 1spectrometer, high-speed gear shaping 1 machine,
2 gear measuring centers 1 coordinate measuring instrument.
lnnovation: Continuously diversify products range to satisfy customers'needs.Production capacity: 1000 pcs/day.
Long-term supplier of world-class companies: t he main markets are in Southea st Asia, Europe, Middle East.
Marketing model: All export business.
FAQ
Q1:Are you a manufacturer or a trader?
A1:We are manufacturers. . If it is convenient for you, we can first hold a video
conference to visit our factory, or you can follow our factory through tips，and you are also welcome to visit our factory in
China.
conference to visit our factory, or you can follow our factory through tips，and you are also welcome to visit our factory in
China.
Q2:How to choose a reducer that meets our requirements?
A2:Tell me the reducer information, or provide the reducer related
parameter diagram, or give me some clear photos of the reducer and related equipment. I would appreciate it if you could tell me
the type of reducer you used initially.
parameter diagram, or give me some clear photos of the reducer and related equipment. I would appreciate it if you could tell me
the type of reducer you used initially.
Q3:What is the quality of your products?
A3:Quality is always the foundation of our
company.I suggest you buy a sample to evaluate the quality.Taizhou Sihai Machinery Co.,Ltd.Engaged in research and development,
design and production of reducer for more than 20 years.
company.I suggest you buy a sample to evaluate the quality.Taizhou Sihai Machinery Co.,Ltd.Engaged in research and development,
design and production of reducer for more than 20 years.
Q4. Can I get 3D and 2D drawings?
A4: Of course you can, we have standard
drawings. In addition, the input size of the gearbox can be customized according to different motors. We will manufacture
different drawings according to your needs
drawings. In addition, the input size of the gearbox can be customized according to different motors. We will manufacture
different drawings according to your needs
Q5. How long will it take for the lead time?
A5: Generally, we keep many regular standard products in stock, if the stock is low, it will take 10-15 days, and the customized products will take longer. It takes
20-45 days, but we are very flexible in terms of delivery time, which will depend on the specific order
20-45 days, but we are very flexible in terms of delivery time, which will depend on the specific order
