Quick Details
-
Product name:
-
Frozen constant temperature small oscillator
-
Material:
-
ABS plastics\stainless steel
-
Power supply:
-
220V 50Hz
-
MOQ:
-
1 SET
-
Control temperature:
-
5°C~60C(Environmental temperature25°C)
-
Maximum capacity(each layer):
-
1000ml*6/500ml*12/250ml*20(Fixed furniture)
-
Usage:
-
Laboratory Experiment
-
Input power:
-
1100w
-
Size:
-
790*565*490mm
-
Packing:
-
Wooden Cases
Quick Details
-
Brand Name:
-
YIDI
-
Model Number:
-
THZ-C-1
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
Frozen constant temperature small oscillator
-
Material:
-
ABS plastics\stainless steel
-
Power supply:
-
220V 50Hz
-
MOQ:
-
1 SET
-
Control temperature:
-
5°C~60C(Environmental temperature25°C)
-
Maximum capacity(each layer):
-
1000ml*6/500ml*12/250ml*20(Fixed furniture)
-
Usage:
-
Laboratory Experiment
-
Input power:
-
1100w
-
Size:
-
790*565*490mm
-
Packing:
-
Wooden Cases
|
Experimental oscillator
THZ-C-1
|
|
|
|
Oscillation frequency
|
20~350rpm
|
|
|
Amplitude
|
26mm
|
|
|
Maximum capacity(each layer)
|
1000ml*6/500ml*12/250ml*20(Fixing fixture)
|
|
|
Standard confuguration
|
Spring rack
|
|
|
Dimension of the tray (mm)
|
450*340mm
|
|
|
Time range
|
0~999/H
|
|
|
Control temperature
|
5C~ 60C(Environmental temperature25℃
|
|
|
Temperature increment
|
±0.1℃
|
|
|
Inner temperature error
|
±0.5℃
|
|
|
Input power
|
1100W
|
|
|
Size ( mm )
|
790×565×490mm
|
|
|
Net weight
|
80kg
|
|
|
Light
|
8w
|
|
|
Power supply
|
220V 50Hz
|
|

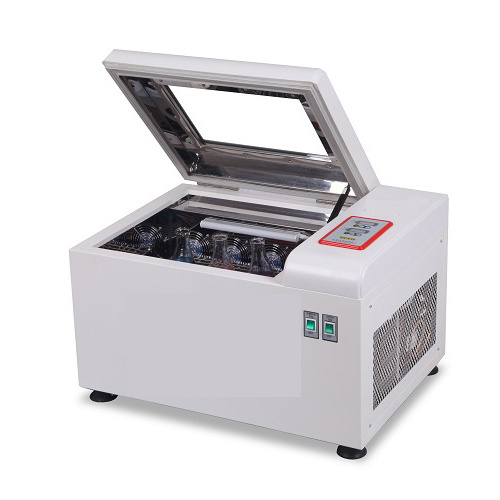

Constant temperature small bench oscillator is designed for users who need small operate area. It has the characteristics of small size and large working space. Can be placed on a sturdy countertop or floor. This type of shaker is equipped with PID temperature control system and brushless DC motor control system, which can meet the needs of users who have higher requirements for temperature and speed.
Bench thermostatic oscillator is widely used in the culture of bacteria, fermentation, hybridization and biochemical reaction, as well as enzyme, cell tissue research and so on, which have high requirements for temperature and oscillation frequency. In medicine, biology, molecular science, pharmaceutical, food, environmental protection and other research and application has a wide range of important applications
1. Intelligent sound and light fault alarm.
2. Ultra-bright LCD display each set parameters and measured parameters, 10 meters away from the instrument can be clear at a glance, read the speed and temperature parameters.
3. Run parameter encryption lock to avoid human error.
4. Set the timer for 0~999 minutes (or hours).
5. Brushless DC motor control system, with speed regulation, constant torque, constant speed, no carbon brush, maintenance free, precise speed control, speed stability ≤1%.
6. Have slowly start function to protect the safety of samples during start up.
7. With power failure recovery function, the equipment can automatically resume operation according to the original set procedure after the power suddenly loses power and calls again.
8. Streamline and luxurious machine shape with rich aesthetic design concept, electrostatic spray case body, large screen and visible glass window.
9. The transmission adopts three-dimensional integrated mechanism with stable operation and large bearing capacity.
12. The control part of the whole machine is powered by a separate power box, which is very convenient for maintenance.
