Quick Details
-
Positioning Accuracy (mm):
-
1 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2800 mm
-
Repeatability (X/Y/Z) (mm):
-
1 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAMACH
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*180mm
-
Power (kW):
-
35
-
Weight (KG):
-
5500
-
Spindle Brand:
-
HQD 9.0KW auto tool change
-
Inverter:
-
Sunfar 11KW
-
Drive motor:
-
Japan Yaskawa 850W servo and driver
-
Taiwan guide rail X/Y/X axis:
-
25mm
-
Positioning cylinder X axis:
-
2 sets
-
Positioning bar Y axis:
-
Installed in two sides of Y axis
-
Vacuum Pump:
-
Domestic water cycle 5.5kw*2 sets
-
Drill group:
-
HQD 5+4 vertical
-
Tool change device:
-
8 tool automatic change(Disc type)", with 8 ISO tool holder
-
Reducer:
-
Helical gear reducer,2m rack
Quick Details
-
Working Table Size(mm):
-
1300*2800
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 18000 rpm
-
Positioning Accuracy (mm):
-
1 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2800 mm
-
Repeatability (X/Y/Z) (mm):
-
1 mm
-
Spindle Motor Power(kW):
-
9
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SAMACH
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1300*2500*180mm
-
Power (kW):
-
35
-
Weight (KG):
-
5500
-
Spindle Brand:
-
HQD 9.0KW auto tool change
-
Inverter:
-
Sunfar 11KW
-
Drive motor:
-
Japan Yaskawa 850W servo and driver
-
Taiwan guide rail X/Y/X axis:
-
25mm
-
Positioning cylinder X axis:
-
2 sets
-
Positioning bar Y axis:
-
Installed in two sides of Y axis
-
Vacuum Pump:
-
Domestic water cycle 5.5kw*2 sets
-
Drill group:
-
HQD 5+4 vertical
-
Tool change device:
-
8 tool automatic change(Disc type)", with 8 ISO tool holder
-
Reducer:
-
Helical gear reducer,2m rack
Product Description

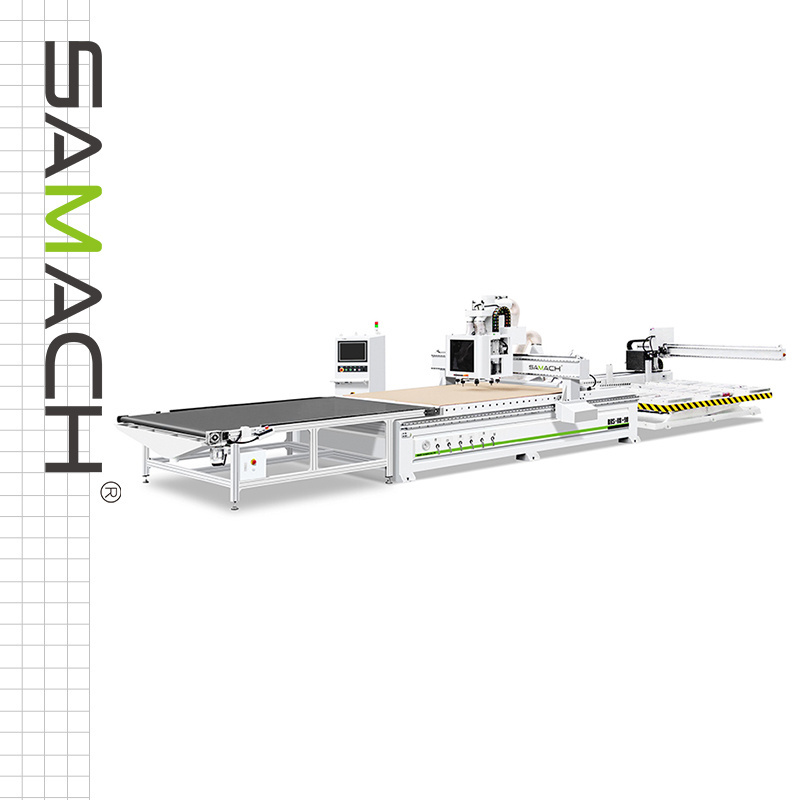

SAMACH Automatic CNC 1325 Router Wood Router Nesting Line CNC Cutting Machine
Parameter
|
Model
|
|
RKS-K8+9V
|
|
|
Work stroke
|
X*Y*Z
|
1300*2800*50mm
|
|
|
Spindle motor
|
Brand
|
HQD 9.0KW auto tool change
|
|
|
Panel thickness
|
Rotation speed
|
18000r/min
|
|
|
Drive system
|
Model
|
Japan Yaskawa 850W servo drive
|
|
|
Inverter
|
Brand
|
Sunfar 11KW
|
|
|
Taiwan guide rail
|
X/Y/X axis
|
25mm
|
|
|
Positioning cylinder
|
X axis
|
2 sets
|
|
|
Positioning bar
|
Y axis
|
Installed in two sides of Y axis
|
|
|
Workable
|
PVC vacuum adsorption
|
Total 6 areas, 2 holes in each area
|
|
|
Vacuum Pump
|
Mode
|
Domestic water cycle 5.5kw*2 sets
|
|
|
Drill group
|
Boring block
|
HQD 5+4 vertical
|
|
|
Tool change device
|
|
"8 tool automatic change(Disc type)", with 8 ISO tool holder
|
|
|
Reducer
|
|
Helical gear reducer,2m rack
|
|
|
Pushing device
|
|
Auto loading, unloading device (lifting worktable and belt conveyor platform)
|
|
|
Label
|
|
Automatic label printer
|
|
|
|
X/Y axis
|
25m/min
|
|
|
|
Z axis
|
10m/min
|
|
|
Operation instruction
|
|
G-code, *.NC
|
|
