Quick Details
-
Brand Name:
-
WSEE
-
Warranty Time:
-
13 month
-
Item:
-
SOR719 4 way AGC optical node/HFC optical node with return path
-
Wavelength:
-
1100~1600nm
-
Optical input range:
-
-8~+2dBm
-
bandwidth:
-
47~862MHz&1006MHz
-
Return path bandwidth:
-
5~30&42&65MHz
-
RF output level:
-
110dBuV
-
Optical connector:
-
SC/APC or FC/APC
-
Power Supply:
-
AC30~AC110V or AC165~245V
-
Net weight:
-
2.8KG
-
Warranty:
-
1year
Quick Details
-
Type:
-
outdoor optical receiver
-
Model Number:
-
WS-SOR719
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WSEE
-
Warranty Time:
-
13 month
-
Item:
-
SOR719 4 way AGC optical node/HFC optical node with return path
-
Wavelength:
-
1100~1600nm
-
Optical input range:
-
-8~+2dBm
-
bandwidth:
-
47~862MHz&1006MHz
-
Return path bandwidth:
-
5~30&42&65MHz
-
RF output level:
-
110dBuV
-
Optical connector:
-
SC/APC or FC/APC
-
Power Supply:
-
AC30~AC110V or AC165~245V
-
Net weight:
-
2.8KG
-
Warranty:
-
1year

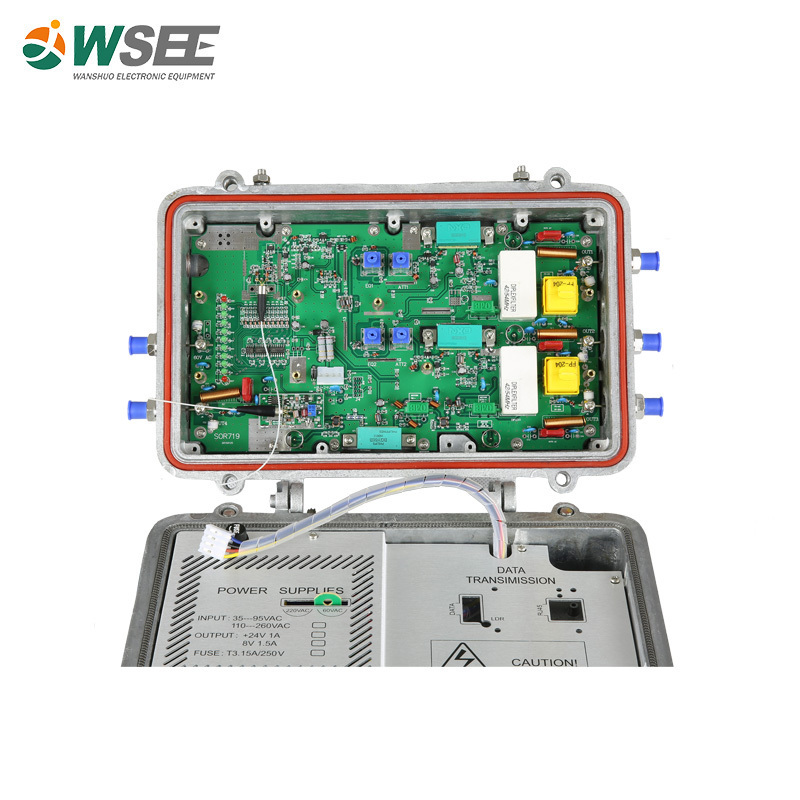

SOR719 4 way AGC optical node/HFC optical node with return path
1. SOR719 4 way AGC optical node/HFC optical node with return path
2. OR719 optical node is an outdoor 4 outputs and waterproofing receiver. It is mainly used in the FTTB network that can realize the analog and digital signal to the users. It can work together with ONU or EOC to realize the network convergence.
3. OR719 4 way optical node AGC control range is +2~-8dBm, when the optical input power +2~-8dBm, the output level will be same, which is easy for debug.
|
Technical Data |
OR719 4 Way Optical Node |
|
Wave Length |
1100~1600nm |
|
Optical input power |
-8dBm~+2 dBm |
|
Optical AGC range |
-8dBm~+2 dBm |
|
Optical Return Loss |
>45dB |
|
Optical Connector |
FC/APC&SC/APC |
|
Bandwidth |
40~750&862&1006MHz |
|
Flatness |
±0.75dB@40~750 MHz ±1dB@40~862&1006 MHz |
|
RF return loss |
≥16dB@40~550MHz ≥14dB@550~750@862&1006MHz |
|
ATT adjustable range |
0-30dB |
|
EQ adjustable range |
0-18dB |
|
RF Impedance |
75Ω |
|
C/N (Note3) |
≥51dB |
|
CTB(Note 3) |
≥65dB |
|
CSO(Note 3) |
≥62dB |
|
Return Path Wavelength |
1310nm&1550nm |
|
Return Path Bandwidth |
5-30MHz & 42MHz & 65MHz(max:200MHz) |
|
Return Path Output Power |
1&2MW@1310nm| or customized |
|
Return Path Flatness |
±0.75dB |
|
Power supply |
AC35-AC90V & AC140V-265V or customized |
|
Main board voltage |
+24V,+8V |
|
Working Tem. |
-25℃ ~+55℃ |
|
Consumption |
≤27w |
|
Power supply way |
220V@ Chinese outlet with 1m power cord 60V@G283 independent power supply port |
|
Net Size |
325*200*120mm |
|
Weight withinnerbox |
3.4kgs(N.W.2.8kgs) |
|
Wholecartonweight |
29kgs(8pcs) |
