Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
clean link
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Paper frame foldaway filter
-
Application:
-
Air-condition filtration system
-
Type:
-
High Dust Capacity
-
Usage:
-
Widely Used Dust Filter
-
Size:
-
Customsize
-
Final resistance:
-
200-400
-
Material:
-
non-woven fabrics,synthetic fiber
-
Certification:
-
ISO9001
Quick Details
-
Core Components:
-
Not available
-
Efficiency:
-
G4.F5.F6.F7.F8.
-
Porosity:
-
1-10um
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
clean link
-
Dimension(L*W*H):
-
Customized Size
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
No overseas service provided
-
Product name:
-
Paper frame foldaway filter
-
Application:
-
Air-condition filtration system
-
Type:
-
High Dust Capacity
-
Usage:
-
Widely Used Dust Filter
-
Size:
-
Customsize
-
Final resistance:
-
200-400
-
Material:
-
non-woven fabrics,synthetic fiber
-
Certification:
-
ISO9001
Paper frame 20 x 25 x 4 merv 8 pleated ac furnace air filter

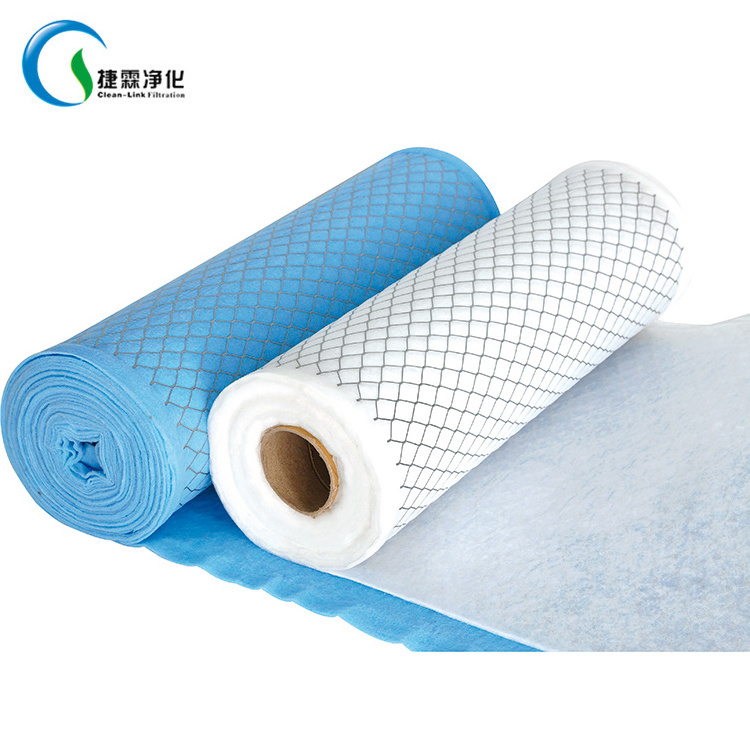

1.The filtration material is made from non-woven fabrics, and the synthetic fiber. It has the advantage of the large dust holding capacity, the low pressure loss in the initial period and lager air flow.
2.The filtration material compounds with the material net, and is designed into the foldaway, which will provide the current air with the largest filtration area, 5 times’ filtration area as the common plane mesh. Paper frame and metal frame are available, which is convenient for replace, less purchasing expense.
3.The moisture-proof: 100%;
4.Heat resistance: 80℃;
5.The rank of the filtration: G4.F5.F6.F7.F8.
1.Large dust holding capacity
2.The low pressure loss in the initial period
3.Lager air flow
Note: Other specifications are available on request.
|
N ormal size |
A ctual size W*H*W(mm) |
Rated air flow( m³ /h) |
||
|
|
|
1.5m/s |
2.5m/s |
3.0m/s |
|
24*24*1 |
595*595*22 |
2040 |
3400 |
- |
|
20*24*1 |
495*595*22 |
1785 |
2975 |
- |
|
20*20*1 |
495*495*22 |
1445 |
2380 |
- |
|
12*24*1 |
287*595*22 |
1020 |
1700 |
- |
|
24*24*2 |
595*595*44 |
2040 |
3400 |
4250 |
|
20*24*2 |
495*595*44 |
1700 |
2805 |
3570 |
|
20*20*2 |
495*495*44 |
1445 |
2380 |
2975 |
|
16*24*2 |
390*595*44 |
1445 |
2380 |
2675 |
|
16*20*2 |
390*495*44 |
1105 |
1870 |
2380 |
|
12*24*2 |
287*595*44 |
1020 |
1700 |
2125 |
|
24*24*4 |
595*595*90 |
2040 |
3400 |
4250 |
|
20*20*4 |
495*495*90 |
1455 |
2380 |
2975 |
|
12*24*4 |
287*595*90 |
1020 |
1700 |
2125 |
Pre-filter for the air-condition filtration system. It can lengthen the working life of the middle and high efficiency filter.
