Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
GM-6
-
Display:
-
4 Digits Backlit LCD
-
Measuring Angle:
-
60
-
Range:
-
0.1~200 Gloss Units
-
Accuracy:
-
±1.0GU
-
Measuring Area:
-
7x14mm(Ellipse)
-
Power Supply:
-
3.7V Lithium Ion Rechargeable Battery
-
Operating Conditions Temp::
-
0~40
-
Humidity::
-
<85%RH
-
Dimensions Main Unit::
-
156x67x28mm
-
Dimensions Probe::
-
58x28x108mm
-
Certification:
-
CE
Quick Details
-
Warranty:
-
14 months
-
Power:
-
Electronic
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
GM-6
-
Display:
-
4 Digits Backlit LCD
-
Measuring Angle:
-
60
-
Range:
-
0.1~200 Gloss Units
-
Accuracy:
-
±1.0GU
-
Measuring Area:
-
7x14mm(Ellipse)
-
Power Supply:
-
3.7V Lithium Ion Rechargeable Battery
-
Operating Conditions Temp::
-
0~40
-
Humidity::
-
<85%RH
-
Dimensions Main Unit::
-
156x67x28mm
-
Dimensions Probe::
-
58x28x108mm
-
Certification:
-
CE

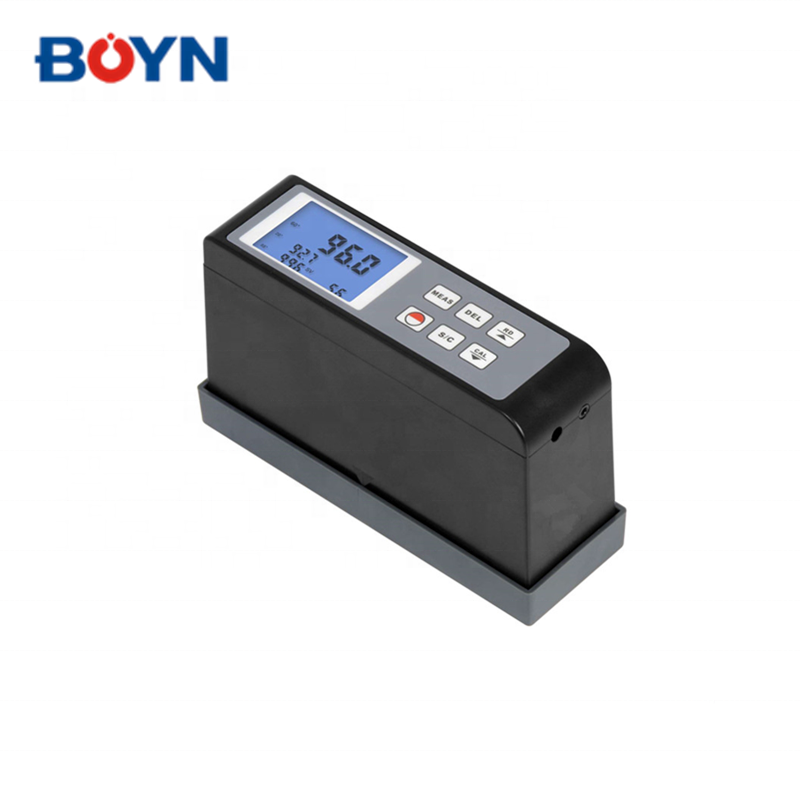

G M-6 Auto calibration paint/marble gloss meter
Spec
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement
Features
In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
Accurate measurement, good repetitveness.
Small in size, easy to carry.
Auto calibration.
Intelligent design, rapid measurement.
Able to store 254 groups of measurements.
Built-in lithium ion rechargeable battery.
Backlight display, suitable for low light environment.
Use USB/RS-232 data output to connect with PC.
Provide data output choice.
Material And Angle Selection Recommended
* 20°: High gloss paint, printing ink, plastics, paper and other materials.
* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
* 85°: Low gloss paint, camouflage coatings materials.
Specifications
|
Display |
4 Digits Backlit LCD |
|
Measuring Angle |
60º |
|
Range |
0.1~200 Gloss Units |
|
Gloss Units |
GU |
|
Accuracy |
±1.0GU |
|
Resoltuion |
0.1 |
|
Repeatability |
±0.5GU |
|
Measuring Area |
7x14mm(Ellipse) |
|
Data Memorized |
254 Groups |
|
Operating Conditions |
Temp:0~40ºC Humidity:<85%RH |
|
Power Supply |
|
|
Dimensions |
140x45x75mm |
|
Weight |
305g(Including Batteries) |
|
Stabdard Accessories |
Main Unit |
|
Holder with Calibration Standard |
|
|
AC Adapter |
|
|
Optical Cleaning Cloth |
|
|
Carrying Case |
|
|
Operation Manual |
