Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIECANG
-
Model Number:
-

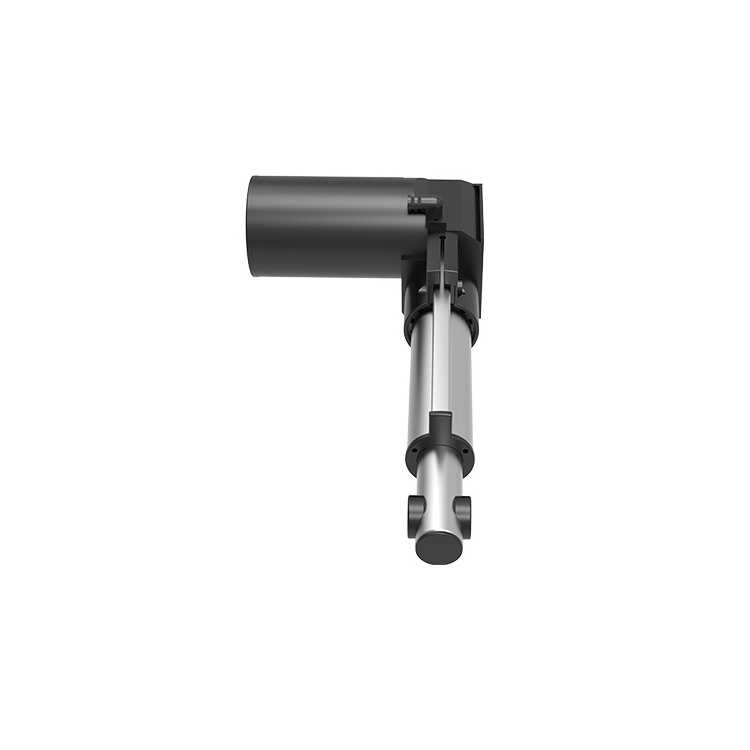

JC35D
-
Torque:
-
100+
-
Product Name:
-
JC35D
-
Max. Load Push:
-
6000N
-
Max. Load Pull:
-
4000N
-
Self-lock:
-
4000N
-
Typical Speed Unloaded:
-
25mm/s
-
Typical Speed Full Load:
-
3mm/s
-
Standard Protection Class:
-
IP43
-
Ambient Temperature:
-
+5℃~ +40℃
-
Noise:
-
<48dB
Quick Details
-
Speed(RPM):
-
1
-
Continuous Current(A):
-
1A
-
Efficiency:
-
1
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIECANG
-
Model Number:
-
JC35D
-
Torque:
-
100+
-
Product Name:
-
JC35D
-
Max. Load Push:
-
6000N
-
Max. Load Pull:
-
4000N
-
Self-lock:
-
4000N
-
Typical Speed Unloaded:
-
25mm/s
-
Typical Speed Full Load:
-
3mm/s
-
Standard Protection Class:
-
IP43
-
Ambient Temperature:
-
+5℃~ +40℃
-
Noise:
-
<48dB
Products Description
Features
1. DC 24V permanent magnet motor;
2. The maximum thrust is 6000N, the maximum pull is 4000N
3. The shell color is gray or black optional
4. Protection IP43
5. The inner tube adopts stainless steel tube
6. Low noise, the average noise level is lower than 48dB (environmental noise≤40dB)
7. Built-in electronic limit switch
8. High-strength front and rear fixing device
9. Passed certification: CE, UL
Options
·Safety nut: optional
·Only push no pull function: optional
·Hall sensor feedback: optional
·Reed switch feedback: optional
Usage
Duty cycle of work: 10%; work for 2 minutes, rest for 18 minutes
Operating temperature: 5~40℃
Storage temperature: -10~50℃
Supporting controller: can be matched with Jiechang standard controller
Relative humidity: 20%-90% at 25°C, non-condensing
Atmospheric pressure: 700-1060hPa
