Quick Details
-
After-sales Service Provided:
-
Video technical support
-
Raw material:
-
wood chips,sawdust
-
Name:
-
Rotary dryer
-
Application:
-
dryer wood chips,sawdust
-
Motor:
-
Siemens Motor
-
Capacity:
-
0.47-0.91 t/h
-
Product name:
-
Drum Rotary Dryer
-
Keywords:
-
Biomass Drying Euipment
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Weight:
-
100000 KG, 5-10t
-
After-sales Service Provided:
-
Video technical support
-
Raw material:
-
wood chips,sawdust
-
Name:
-
Rotary dryer
-
Application:
-
dryer wood chips,sawdust
-
Motor:
-
Siemens Motor
-
Capacity:
-
0.47-0.91 t/h
-
Product name:
-
Drum Rotary Dryer
-
Keywords:
-
Biomass Drying Euipment

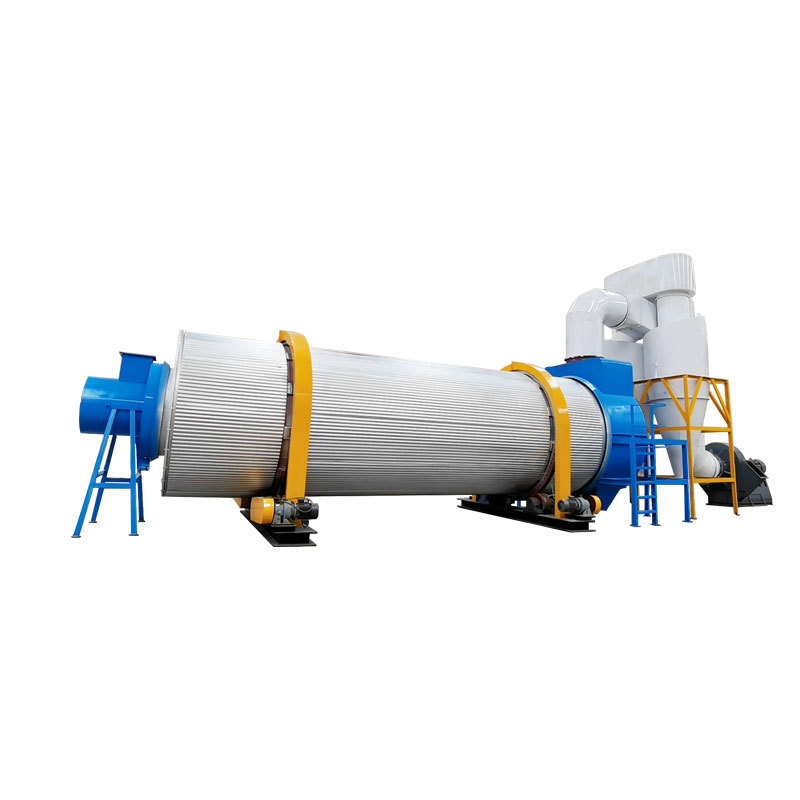

Drying Machine YGHG 2.2*24 Wood Sawdust High Quality Rotary Dryer
Introduction of Sawdust Rotary Dryer
Sawdust dryer with heating furnace, feed port, rotating cylinder, delivery pipe, dust collector and discharge port. Wet material is continuously sent to the drying cylinder by a conveyor. Heat air makes full contact with the material. Being delivered and scattered by the high-speed hot air, water in the wet material is evaporated. The material gets fully dried in the rotating cylinder.
Sawdust dryer is widely used in industries like biomass fuel, wood pellet fuel, sawdust briquette, farming etc. The applicable materials are wood powder, wood shavings, sawdust, wood chipps, straws, grass, etc
Technical Parameter of Sawdust Rotary Dryer
|
Model |
Power(kw) |
Evaporation (t/h) |
Cylinder Diameter(mm) |
Cylinder Length(m) |
|
YGHG1.2*12 |
5.5+15+2.2+1.5 |
0.3-0.6 |
1.2 |
12 |
|
YGHG1.5*12 |
11+18.5+3+2.2 |
0.47-0.91 |
1.5 |
12 |
|
YGHG1.8*18 |
18.5+37+3+2.2 |
1.01-1.90 |
1.8 |
18 |
|
YGHG2.0*18 |
18.5+55+5.5+2.2 |
1.25-2.3 |
2.0 |
18 |
|
YGHG2.2*24 |
22+90+5.5+2.2 |
2.02-3.36 |
2.2 |
24 |
|
YGHG2.5*24 |
22+90+5.5+3 |
2.61-4.16 |
2.5 |
24 |
|
YGHG3.0*24 |
30+132+5.5+3 |
3.76-5.6 |
3.0 |
24 |
Inner Sturcture of Rotary Dryer Machine
The inner structure of Rotary Dryer Machine for Drying Sawdust is dryer wall plate + triangle plate,widely increase the drying efficiency, larger capacity. It is mainly used for drying wood chips,wood sawdust,efb fiber etc.
Design: spiral plate weld, accord with welding rule, it won't easily crack and deformation.
Material of Rotary Dryer Machine
The toral weight of Rotary Dryer Machine for Drying Sawdust is 10t-30t, which makes sure the dryer work stable,firmly enough.
Material: Q235 carbon steel
Customer cases
1. Are you manufacturer or Trading Company
Yes, we are professional Manufacturer
2. What is the Capacity per hour can you do?
1t/h to 20t/h.
3. Do you send engineer to clients' place to install the equipment ?
Yes, we have professional After-sales Department.
4.What kind of raw material can dry? what is the requirement?
Raw material: sawdust, agricultural staw, efb fiber, rice husk, peanut shell etc.
5. What is your Address?
Zhangqiu,Jinan city, Shandong Province.
