Quick Details
-
Brand Name:
-
HONZ
-
Model Number:
-
HZ-DTGA3-6C
-
Voltage:
-
110V/220V
-
Gross Power:
-
35W
-
Dimensions(L*W*H):
-
630*800*580mm
-
Weight:
-
60kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
3d t shirt printing machine
-
Printhead:
-
DX5 metal print head
-
Ink:
-
Textile ink
-
Ink type:
-
CMYK+LC+LM or CMYK+2White
-
Printer platform size:
-
320*800mm
-
printing working size:
-
320*600mm
-
Print Thickness:
-
0 -180mm
-
Application:
-
print garment materials like cotton, polyester, spandex etc.
-
Print Resolution:
-
5760*1440dpi
-
Ink Cartridge:
-
Continuous Ink Supply System (CISS)
-
Certification:
-
CE Certification
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONZ
-
Model Number:
-
HZ-DTGA3-6C
-
Voltage:
-
110V/220V
-
Gross Power:
-
35W
-
Dimensions(L*W*H):
-
630*800*580mm
-
Weight:
-
60kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
3d t shirt printing machine
-
Printhead:
-
DX5 metal print head
-
Ink:
-
Textile ink
-
Ink type:
-
CMYK+LC+LM or CMYK+2White
-
Printer platform size:
-
320*800mm
-
printing working size:
-
320*600mm
-
Print Thickness:
-
0 -180mm
-
Application:
-
print garment materials like cotton, polyester, spandex etc.
-
Print Resolution:
-
5760*1440dpi
-
Ink Cartridge:
-
Continuous Ink Supply System (CISS)
-
Certification:
-
CE Certification
Paypal dtg a3 t-shirt printer 3d t shirt printing machine for sale

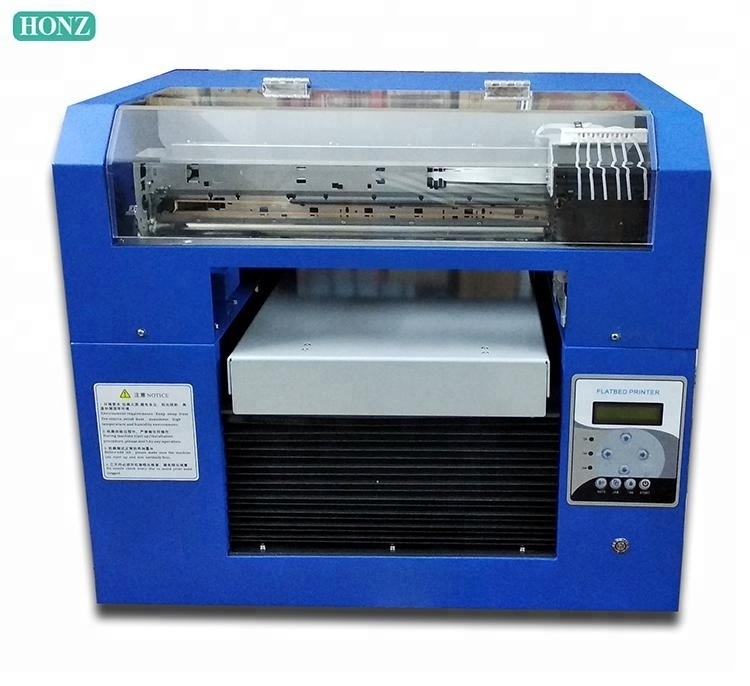

HZ-DTGA3-6C t-shirt printer description:
T- shirt Printer as known as Direct to Garment Printer (DTG) printer , i t is a machine that directly prints ink on garment s . Its performance is stable, you can print bright images on any light-colored, dark-colored garments or fabric. After washing, printed image color not fade.
DTG inkjet printer no need plate making, no need color registration, and imaging once. For multi-color, gradient, DTG printer has unique advantage.
D igital T-shirt printer advantage feature:
1. Simple operation, c omputer operation, auto printing, very convenience
2. Fast print speed: Low input cost, high-speed printing is completely suitable for industrial mass production;
3. O vercome the limits of materials: can print on clothing or textiles of different thickness;
4. Height adjustment: Height can be adjusted according to the printed object.
5. Use large-capacity ink cartridges: It avoids the impact of printing efficiency due to frequent replacement of ink cartridges, while minimizing printing costs.
6. Low printing cost: Compared with the existing thermal transfer process, it can save more than 80% of the cost.
7. M eet the needs of quick sample or personalized T-shirt printing demand .
This T-shirt printer can print garment materials like cotton, polyester, spandex, silk, nylon etc.
HZ- DTG A3-6C DTG garment printer specification:
|
Model |
HZ- DTG A3-6C t-shirt printer |
|
Printer head |
DX5 metal print head |
|
Printing process |
Micro Piezo 90 nozzles*6 colors |
|
Minimum Ink Droplet Size |
1.5 Pico liters |
|
Print Resolution |
5760*1440dpi |
|
Printer platform size |
320*800mm |
|
printing working size |
320*600mm |
|
Print Thickness |
0 -180 mm |
|
Print Speed |
Print a A4 size image on light color t-shirt need 3 minute s with high resolution |
|
Height Adjustment |
Semi - automatic , height sensing, photoelectric shooting limit switch |
|
Ink consumption |
Approximately 10ml ink of each color to print one square meters image |
|
Ink type |
Water based textile ink |
|
Ink Color |
Cyan , Magenta , Yellow , Black , 2 white (CMYK+2White) o r Cyan , Magenta , Yellow , Black , Light cyan , Light Magenta (CMYK+LC+LM) |
|
Ink Cartridge |
Continuous Ink Supply System (CISS) |
|
Platform in and out |
Automatic , l aser positioning, accurate |
|
Platform lift |
Automatic, T-type screw |
|
Software |
acro rip / mengtai |
|
Working environment |
Temperature: 10°-35° C (50°-95° F) Humidity: 20%-80% RH |
|
Working voltage |
110V/220V AC |
|
power |
Max 35W |
|
data transmission |
USB 2.0 high speed |
|
Operation System |
Windows® 2000, XP, XP Professional X 64 and Windows Vista™, Windows 7, Macintosh® OS X 10.2.8, 10.3.9, 10.4.11, 10.5.x and 10.6.x |
|
Printer Weight |
Net Weight : 60 kg Gross Weight : 90 kg |
|
Machine Size |
Net size: 630*800*580mm Package size : 740*920*760mm |
6 colors A3 size DTG printer use DX5 print head, keep 2880*1440dpi printing resolution.
DTG printer use water based textile ink, with white textile ink, it can print on any colors of fabric, garments.
A3 size garment printer ink cartridge use Continuous Ink Supply System (CISS). please see picture at below: Ink dampers and CISS.
Water based textile ink, for DTG printer use. Click picture for more textile ink details:
DTG printer print on White t-shirs and Black t-shirts printing samples, keep high printing resolution.
DTG printer use water based textile ink, printing image realistic and achieve photo quality. Printed image is waterproof, sun-resistant, abrasion-resistant and color does not fade.
