Quick Details
-
Table Travel (Y) (mm):
-
510
-
Dimension(L*W*H):
-
2496*2530*2679
-
Weight (T):
-
5600 T
-
Range of Spindle Speed(r.p.m):
-
100 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5/11/15
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
100 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
10
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTG
-
Voltage:
-
380V 50HZ
-
Controlling Mode:
-
Cnc System
-
Processing:
-
Metal Vertical Milling Machine
-
CNC or Not:
-
CNC Systemn
-
Precision:
-
High Precision Machining Center
-
Keywords:
-
Vmc Machine Center
-
Function:
-
Machining Metal
-
Spindle speed:
-
8000/10000/12000rpm
-
Usage:
-
Metal Parts Machining Center
-
Certification:
-
CE ISO
-
Key word:
-
CNC Machining Center Vertical
Quick Details
-
Table Size (mm):
-
1000x500
-
Number of Axes:
-
2, 3, 4, 5
-
Table Travel (X) (mm):
-
860
-
Table Travel (Y) (mm):
-
510
-
Dimension(L*W*H):
-
2496*2530*2679
-
Weight (T):
-
5600 T
-
Range of Spindle Speed(r.p.m):
-
100 - 12000 r.p.m
-
Spindle Motor Power(kW):
-
7.5/11/15
-
Max. Table Load(kg):
-
500 kg
-
Feed Speed(mm/min):
-
100 - 10000 mm/min
-
Rapid Feed Speed(m/min):
-
10
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DMTG
-
Voltage:
-
380V 50HZ
-
Controlling Mode:
-
Cnc System
-
Processing:
-
Metal Vertical Milling Machine
-
CNC or Not:
-
CNC Systemn
-
Precision:
-
High Precision Machining Center
-
Keywords:
-
Vmc Machine Center
-
Function:
-
Machining Metal
-
Spindle speed:
-
8000/10000/12000rpm
-
Usage:
-
Metal Parts Machining Center
-
Certification:
-
CE ISO
-
Key word:
-
CNC Machining Center Vertical

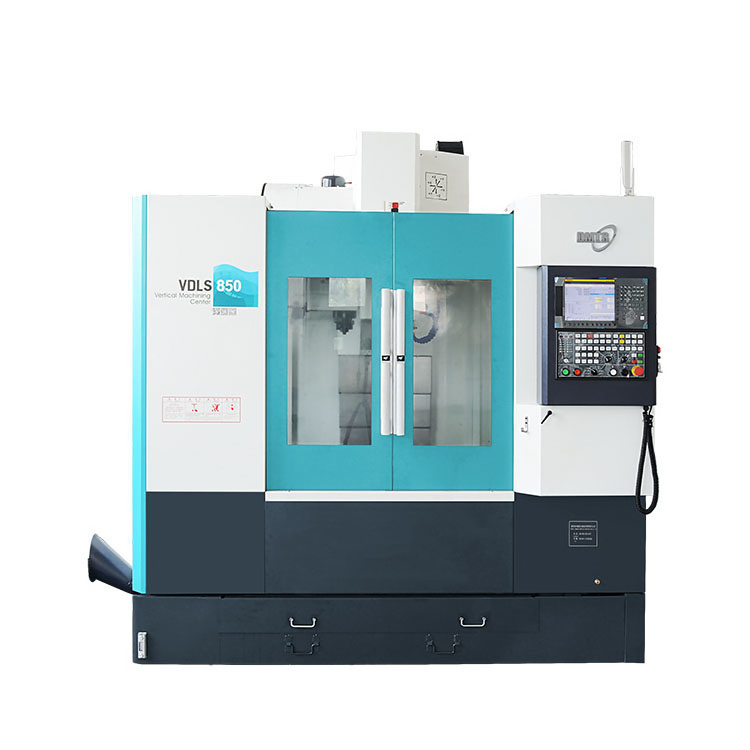

Vdls850 12000rpm Dalian Dmtg Vmc850 4 Axis CNC Vertical Machining Center CNC Milling Machine Vmc Machine
|
TABLE
|
Worktable size
|
mm
|
1000*500
|
|
|
T-Slot (Quantity*Width*Distance)
|
mm
|
5*18*100
|
|
|
Max load of worktable
|
kg
|
500
|
|
TRAVEL
|
X/Y/Z axis travel
|
mm
|
860/510/560
|
|
|
X/Y/Z axis guideway type
|
mm
|
Linear guideway
|
|
|
Distance from spindle center to column
|
mm
|
607
|
|
|
Distance from spindle nose to table
|
mm
|
145~705
|
|
FEED RATE
|
Rapid traverse of X/Y/Z axis
|
m/min
|
36/36/30
|
|
|
Cutting feed rate
|
mm/min
|
0~10000
|
|
SPINDLE
|
Max spindle speed
|
r/min
|
12000
|
|
|
Spindle taper
|
|
No.40 (7:24)
|
|
ATC system
|
Tool magazine capacity
|
|
24T/Arm
|
|
|
Tool shank type
|
|
BT40
|
|
|
Max tool weight
|
kg
|
8
|
|
|
Max tool diameter (w/o adjacent tools)
|
mm
|
24T: φ78/155
|
|
|
Max tool length
|
mm
|
300
|
|
|
Time of tool change (T-T)
|
s
|
24T: 2.5
|
|
ACCURACY
|
X/Y/Z axis positioning accuracy
|
mm
|
0.008/0.008/0.008
|
|
|
X/Y/Z axis repeatability accuracy
|
mm
|
0.005/0.005/0.005
|
|
CONTROL SYSTEM
|
Controller
|
|
GSK/SIEMENS/FANUC
|
