Quick Details
-
Certification:
-
CE Certificate
-
Roller Size:
-
96mm Dia. x 100mm Width
-
Press Accuracy:
-
≤±0.005
-
Press Thickness Range:
-
0-2mm, adjustable
-
Press Width:
-
Max 100mm
-
Product Dimensions:
-
L350 x W240 x H350(mm)
-
Weight:
-
45kg
Quick Details
-
Place of Origin:
-
Fujian, China
-
After-sales Service Provided:
-
Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Product Name:
-
Battery Roll Press Machine
-
Certification:
-
CE Certificate
-
Roller Size:
-
96mm Dia. x 100mm Width
-
Press Accuracy:
-
≤±0.005
-
Press Thickness Range:
-
0-2mm, adjustable
-
Press Width:
-
Max 100mm
-
Product Dimensions:
-
L350 x W240 x H350(mm)
-
Weight:
-
45kg

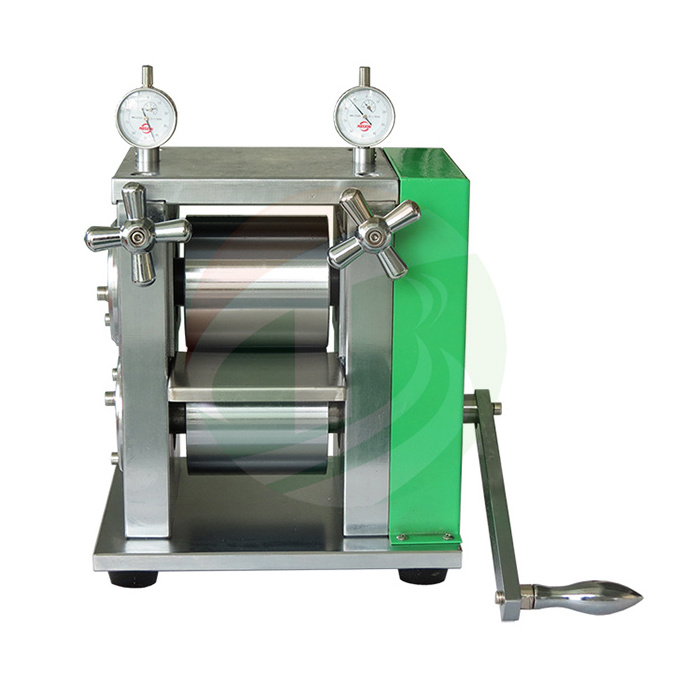

100mm Width Lab Small Hand Manual Battery Roll Press Machine Calender Machine Price For Electrode Rolling
1. TOB-SG-100L is a Lab Manual Roller Press Machine. The roller size is 96mm Dia. x 100mm Width. It is an ideal press machine for adjusting thickness to increase the density of battery electrode active material.
2. This lab roller press machine is mainly used in lithium battery electrode, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually pressed.
|
Model |
TOB-SG-100L |
|
Warranty |
One Year limited warranty with lifetime support |
|
Structure |
|
|
Roller size |
96mm Dia. x 100mm Width Roller surface with Cr electroplated coating, roller surface finish >0.8 |
|
Press accuracy |
≤±0.005 |
|
Press thickness range |
0-2mm, adjustable |
|
Press width |
Max 100mm |
|
Product dimensions |
L350mm x W240mm x H350mm |
|
Weight |
45kg |
|
Application Notes |
|
Here are some of our test results for your reference.
|
Electrode |
Size |
Original thickness |
Finished thickness |
|
LiFePO4 doble sided coated |
W50 x L260 mm |
0.205mm |
0.09mm |
|
LiMn2O4 doble sided coated |
W50 x L260 mm |
0.205mm |
0.09mm |
|
Copper foil + graphite single sided coated |
W75 x L240 mm |
0.09mm |
0.04mm |
Battery roll press machine accessory
Packing details
We also provide Electric Roller Press Machine and Roller Heat Press Machine, you can click the picture to get more details.
Electric Roller Press Machine TOB-DG-100L
Roller Heat Press Machine TOB-JS-100L
