Quick Details
-
Instruction for use:
-
Agricultural
-
Model Number:
-
GG-001
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Qingcheng
-
Application:
-
Vegetable Fruits Flowers
-
Usage:
-
Flower Vegetable Growing
-
Color:
-
Transparent
-
Ventilation:
-
Roof Ventilation+side Ventilation
-
Service:
-
Technical Service
-
Shading System:
-
Inside+outside Shading
-
Delivery time:
-
Deposit
-
Structure:
-
Aluminum Ally Profile Connection
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
Qingcheng
-
Instruction for use:
-
Agricultural
-
Model Number:
-
GG-001
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
Qingcheng
-
Application:
-
Vegetable Fruits Flowers
-
Usage:
-
Flower Vegetable Growing
-
Color:
-
Transparent
-
Ventilation:
-
Roof Ventilation+side Ventilation
-
Service:
-
Technical Service
-
Shading System:
-
Inside+outside Shading
-
Delivery time:
-
Deposit
-
Structure:
-
Aluminum Ally Profile Connection
PRODUCT OVERVIEW

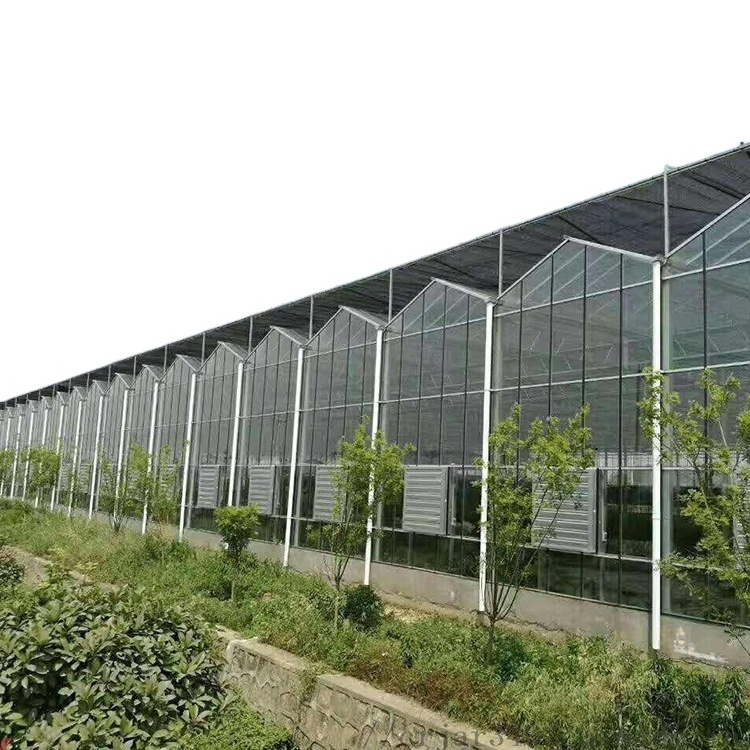

Glass Greenhouse
Glass Greenhouse has the characteristics of high light transmittance, beautiful appearance, simple and stable structure, and strong anti-corrosion.
It is suitable for plants with high requirements for sunlight. Each span of the glass multi-span greenhouse has 3 roofs, and each span has two slopes. The skeleton material of the greenhouse is generally made of galvanized steel material, which is connected by anti-rust bolts.greenhouses can be used in all areas of agriculture such as breeding, kinds of economic plants growing,commercial
ecological sightseeing park and scientific research ect.
|
Product Name
|
Glass Greenhouse
|
|
Span Width
|
8m/9.6 m/10m or customization
|
|
Bay Width
|
4m (customization)
|
|
Height of Greenhouse
|
4-8m (customization)
|
|
Roof Covering
|
5mm tempered glass
|
|
Side covering
|
5+9+5mm double layer glass
|
|
Wind load
|
45~55km/m2
|
|
Snow load
|
0.40~0.5KN/m2
|
|
Max. rainfall
|
140mm/h
|
|
Hanging load
|
25~30kg/m2
|
|
Optional system
|
Side ventilation, roof ventilation, Outside shading system, Inside shading system, cooling system, heating system, drip irrigation
system, fogging system, aotomatic control system, hydroponic system and so on. |
|
Application
|
Used for Vertical Agricultural Hydroponic Vegetable Cultivation Greenhouse
|
APPLICATION
|
1
|
Planting vegetable, for example, tomato, cucumber, peper, chilli, leaf vegetable, etc.
|
|
|
|
|||
|
2
|
Planting flower.
|
|
|
|
|||
|
3
|
Planting fruits.
|
|
|
|
|||
|
4
|
Soilless culture.
|
|
|
|
|||
|
5
|
Agriculture trial.
|
|
|
|
|||
|
6
|
As restaurant
|
|
|
|
|||
|
7
|
For sightseeing
|
|
|
|
|||
Glass Greenhouse Advantages
1.Agricultural Glass Greenhouse provides ideal environment for plants growth. It can resist heavy and strong snow/wind, and very easy to clean and maintain.
2.The light transmittance is more than 90%.
3. Glass Greenhouse is Venlo shape with modern and novel apperance, stable structure, The life time of the greenhouse structure is more than 20years.
4. It can be equipped with inside and outside shading system, top and side window ventilation system, wet curtain and fan cooling system, heating system, automatic system and so on.
5.Other equipments can be applied according to the user's planting needs.
SUCCESSFUL PROJECT
GREENHOUSE SYSTEM
Mainly Frame
The Frame Materials of greenhouse are hot dip galvanized steel and accessories.The structure is strong and durable.
The warranty period of frame is 15~25 years.
Covering Material
Roof cover is mostly 5mm tempered glass sheet, or 8mm twin wall polycarbonate sheet.
The side wall is usually covered by 5+6+5mm double layer glass.
Sides Cover
The greenhouse has both side ventilation and top ventilation system.
Good ventilation can constantly supplement the carbon dioxide needed by plants, promote the growth of plants, and also regulate the temperature to provide a good living environment for plants
Shading Systems
Outer Shading Systems: black round wire shade net with 75% shading rate.
Inner Shading Systems: white aluminum foil shade net with 45% shading rate.
Avoid direct sunlight to crops in summer, reduce the loss of indoor moisture; slow down heat loss in winter.
