Packaging Details：EXPORT PACKING Port： Any port of China
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
China
-
Model Number:
-
ZAY7032G
-
Weight (KG):
-
365 KG
-
Applicable Industries:
-
others
-
Processing:
-
Drilling and milling
-
Usage:
-
General
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Automatic Grade:
-
Semiautomatic
Quick Details
-

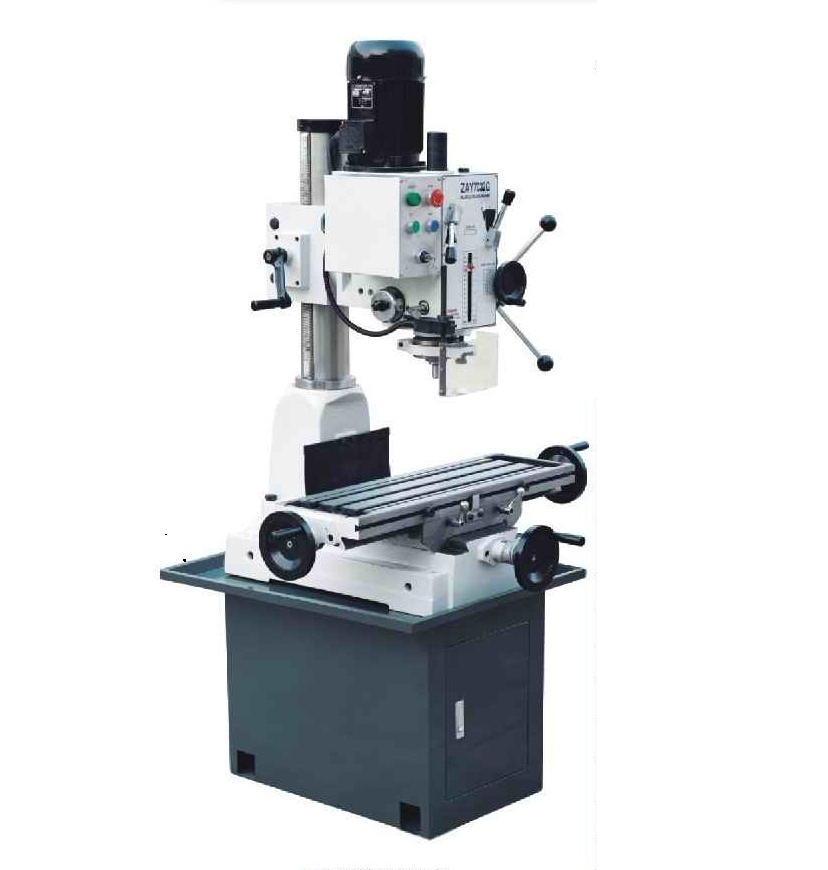

type:
-
Drilling & Milling Machine
-
Max. Drilling Dia. (mm):
-
32
-
Range of Spindle Speed(r.p.m):
-
80 - 1250 r.p.m
-
Place of Origin:
-
China
-
Model Number:
-
ZAY7032G
-
Weight (KG):
-
365 KG
-
Applicable Industries:
-
others
-
Processing:
-
Drilling and milling
-
Usage:
-
General
-
Precision:
-
Precision
-
Processing Types:
-
Metal
-
Automatic Grade:
-
Semiautomatic
Products Description
Packaging & Delivery
|
ITEM
|
ZAY7032G
|
|
Drilling capacity
|
32mm
|
|
Face milling capacity
|
63mm
|
|
End milling capacity
|
20mm
|
|
Distance from spindle nose to table
|
440mm
|
|
Min.distance from spindle axis to column
|
272.5mm
|
|
Spindle travel
|
130mm
|
|
Spindle taper
|
M.T.3 or R8
|
|
Step of spindle speed
|
6
|
|
Range of spindle speed 50Hz
|
80-1250 r.p.m
|
|
60Hz
|
95-1500 r.p.m
|
|
Swivel angle of headstock(horizontally/perpendicularly)
|
360°/±90°
|
|
Table size
|
800×240mm
|
|
Forward and backward travel of table
|
175mm
|
|
Left and right travel of table
|
500mm
|
|
Motor power
|
0.75KW(1HP)
|
|
Voltage/frequency
|
As customer's requirement
|
|
Net weight/gross weight
|
315kg/365kg
|
|
Packing size
|
770×880×1160mm
|
|
Loading amount
|
36pcs/20container
|
Company information
Customer Review
FAQ
Q1: How long guarantee period you offer?/ how is warranty?
A1:
12 month
guarantee after machine on board.
Q2: What services are available during the guarantee period?
A2:
Free replacing parts
available in the warranty period.
Cost-value replacing parts
available beyond the warranty period.
Quick action
and reply for the technical questions at any time.
Q3: Can you provide training for operation CNC machines?
A3: Yes,
free training
in our factory or engineer overseas service available as customer requirements(relative cost born
by customer.
Q4: Can you provide customized machine or Special purpose machine?
A4: Yes, we provide
different kinds processing solutions
for customers, in order to meet different requirements.
Q5: Can we visit your factory before order?
A5: Sure, we warmly welcome you to
visit our factory at any time
. The more you know us, the more you trust us! So you can rest assured on our
quality products
and our
best services
.
Q6: Where is your factory located?
A6: Our factory is located in Kunming city, Yunnan province, in the southwest of China.
