Quick Details
-
Input Speed:
-
1400RPM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WanXin
-
Model Number:
-
NMRV/NRV
-
main material:
-
025-105(aluminium),110-150(cast iron)
-
Ratio:
-
7.5-100 (5,7.5,10,15,20,25,30,40,50,60,80,100)
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001:2008
Quick Details
-
Gearing Arrangement:
-
Worm
-
Output Torque:
-
2.6N.m~2379N.m
-
Rated Power:
-
0.06KW~7.5KW
-
Input Speed:
-
1400RPM
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
WanXin
-
Model Number:
-
NMRV/NRV
-
main material:
-
025-105(aluminium),110-150(cast iron)
-
Ratio:
-
7.5-100 (5,7.5,10,15,20,25,30,40,50,60,80,100)
-
Warranty:
-
1 Year
-
Certification:
-
ISO9001:2008

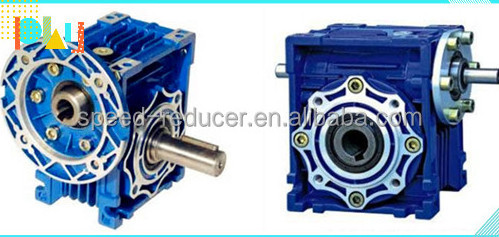

Worm gearboxes contain a worm/screw gear on the input shaft, and a mating worm/spur gear on the output shaft. Worm gearboxes also change the drive direction by 90°. Our gearboxes utilize C-face mounting interfaces for C-face motors.
Aluminum gearboxes feature hollow-shaft outputs (all the way through from one side to the other). For the aluminum gearboxes we also offer optional single and double output shafts, output flanges, torque arms, and output covers.
The highest quality materials are tested, certified, and used in the manufacturing process. Strict adherence to and compliance with the toughest international testing standards and manufacturing procedures assure you the highest quality products.
Features
5:1 to 100:1 ratios
Box sizes 30 to 75mm
Aluminum alloy housing for lightweight design
Hardened worm shaft for increased durability
Two bearings on input and output shafts
All units filled with Mobil SHC634 synthetic oil
No vent plug or breather needed; maintenance-free reducer
Double lip oil seals prevent leakage
Multiple mounting holes for all angle mounts
Epoxy paint applied to inside and outside of reducer to protect against corrosion
Hollow output bores with available plug-in output shafts
Mountable in any direction (except motor pointing up)
One year warranty
Applications
Use gearboxes with aluminum housings for applications that require lighter weight and/or less frequent run rate or service life.
Use with electric motors for reducing output speed, increasing torque, changing drive direction, or running two loads from one motor.
Use for conveyors, packaging machines, rotary tables, etc.
Our main products:
WR, WF, WK, WS series modular gear speed reducer with brake motor;
H,B series standard industrial gearbox;
P series planetary gear speed reducer;
T series spiral bevel gearbox;
ZDY, ZLY, ZSY, ZFY parallel shaft series;
DBY, DCY, DFY vertical shaft series hardened gear reducer;
NGW planetary hardened gear speed reducer.
1,We are ready to provide you with technical advices and support.
2,Before product acceptance, we will answer all of your questions in a timely manner, provide technical support.
3,Our technical services group will provide technical support for products repair and maintenance.
4,Our commitment is to create even more value for you, keep a close contaction relationship with our customers.
We sincerely thanks for the trust and support from all our customers. In order to continuously improve the quality of our products and services, enhance the customer satisfaction, we would like to receive your feedback when you view our products online. Meanwhile, we eagerly look forward to get your valuable comments and suggestions on our work.
1,Do you have any questions about our products specifications?
2,Do you have problems about how to select the suitable gearbox for your machine or equipment?
3, Do you have any technical questions to get support or consult?
4,What's your opinion about our products quality and services?
5,What's your opinion about our products performance?
