Quick Details
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1050*540*2.5mm
-
Panel Efficiency:
-
20%
-
Application:
-
Boat RV Camping
-
Product name:
-
100w Flexible Solar Panel
-
Power:
-
100W
-
OEM:
-
Acceptable
-
Solar cell:
-
Sunpower Maxeon
-
Cell Efficiency:
-
20%-24%
-
Front cover:
-
ETFE
-
Number of Cells:
-
40pcs
-
Output cable:
-
2.5mm2 Length 90mm
-
Connector:
-
MC4
Quick Details
-
Cell size:
-
125mmx125mm
-
Brand Name:
-
TIENREK
-
Model Number:
-
TR-100SP
-
Place of Origin:
-
Guangdong, China
-
Panel Dimensions:
-
1050*540*2.5mm
-
Panel Efficiency:
-
20%
-
Application:
-
Boat RV Camping
-
Product name:
-
100w Flexible Solar Panel
-
Power:
-
100W
-
OEM:
-
Acceptable
-
Solar cell:
-
Sunpower Maxeon
-
Cell Efficiency:
-
20%-24%
-
Front cover:
-
ETFE
-
Number of Cells:
-
40pcs
-
Output cable:
-
2.5mm2 Length 90mm
-
Connector:
-
MC4

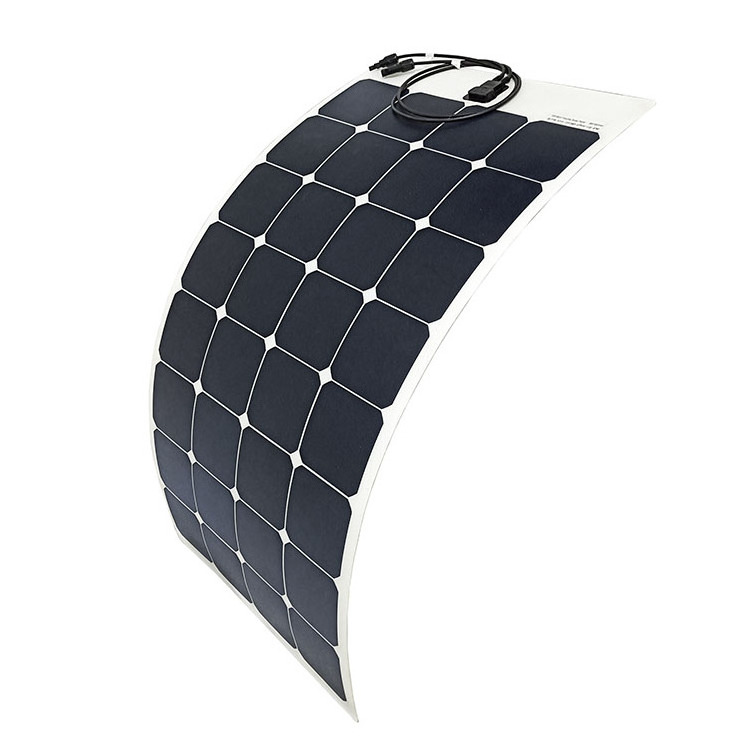

Products Description
Sunpower Cell 125x125 4x8 Semi Flexible 110w 120w ETFE Solar Panel 100 Watt For Caravans
Can be customized LOGO, Power, Voltage, Size, Shape, Color, Junction Box, Connector
Details Images
Product Paramenters
|
Power
|
100 Watt
|
110 Watt
|
||
|
Solar Cell
|
Sunpower 125*125mm
|
|
||
|
No. of Cell
|
32 (4*8)
|
|
||
|
Size
|
1050*540*2.5mm (back side junction box)
1120*540*2.5mm (front side junction box)
|
|
||
|
Operating Voltage (Vmp)
|
17.6V
|
18.05V
|
||
|
Current (Imp)
|
5.68A
|
6.66A
|
||
|
Open Circuit Voltage (Voc)
|
21.12V
|
21.66V
|
||
|
Short Circuit Current (Isc)
|
6.20A
|
6.70A
|
||
|
Structure
|
ETFE surface, TPT backsheet
|
|
||
|
Junction box
|
IP67, 0.9m PV cable + MC4 Connector
|
|
||
|
Measured at STC Condition: Irradiance 1000w/m2 AM1.5 Spectrum Temperature 25℃
|
|
|
||
Advantage
【
Wide range of application
】It is very suitable for 12-volt battery charging. Multiple panels can be connected in series to charge 24/48 volt batteries. It needs to be used with the controller to protect the battery, and the solar panel can be easily connected to the solar controller/regulator.
【
Good bendability
】The solar panel can be curved to a maximum 30 degree arc, allowing to be mounted on an RV, boat, cabin, tent, car, trucks, trailers, yacht, motorhome, Roofs, or any other irregular surface.
【
High conversion efficiency
】High efficient monocrystalline solar cell, adopt unique back contact technology and remove electrodes on the solar cell surface that block the sunshine to increase the solar panel conversion efficiency up to 50% more efficiency than ordinary.
【
High-quality material
】The solar panel is made of ETFE. ETFE material has higher light transmittance and longer service life than ordinary materials. ETFE materials ensure the best performance day after day. The backplane adopts TPT, which is good for heat dissipation, waterproof, high temperature resistance and easy to clean.
【
Light weight & easy to install
】It can be afixed by adhesives, silicon glues, double sticky tapes, zip ties or velcro, perfect for non-permanent installations.
If need custom other specification, please
"Click Here"
contact with us.
