Quick Details
-
Brand Name:
-
Green Energy
-
Model Number:
-
TNS
-
Usage:
-
SVC
-
Certification:
-
ISO9001
-
Frequency:
-
50/60Hz
-
Input Voltage:
-
260-450V/500V
-
Output voltage:
-
380V
-
Capacity:
-
30 KVA
-
Display:
-
LCD
-
Type:
-
SERVO MOTOR
-
Efficiency:
-
98 %
Quick Details
-
Phase:
-
Three Phase
-
Current Type:
-
DC
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Green Energy
-
Model Number:
-
TNS
-
Usage:
-
SVC
-
Certification:
-
ISO9001
-
Frequency:
-
50/60Hz
-
Input Voltage:
-
260-450V/500V
-
Output voltage:
-
380V
-
Capacity:
-
30 KVA
-
Display:
-
LCD
-
Type:
-
SERVO MOTOR
-
Efficiency:
-
98 %
Products Description

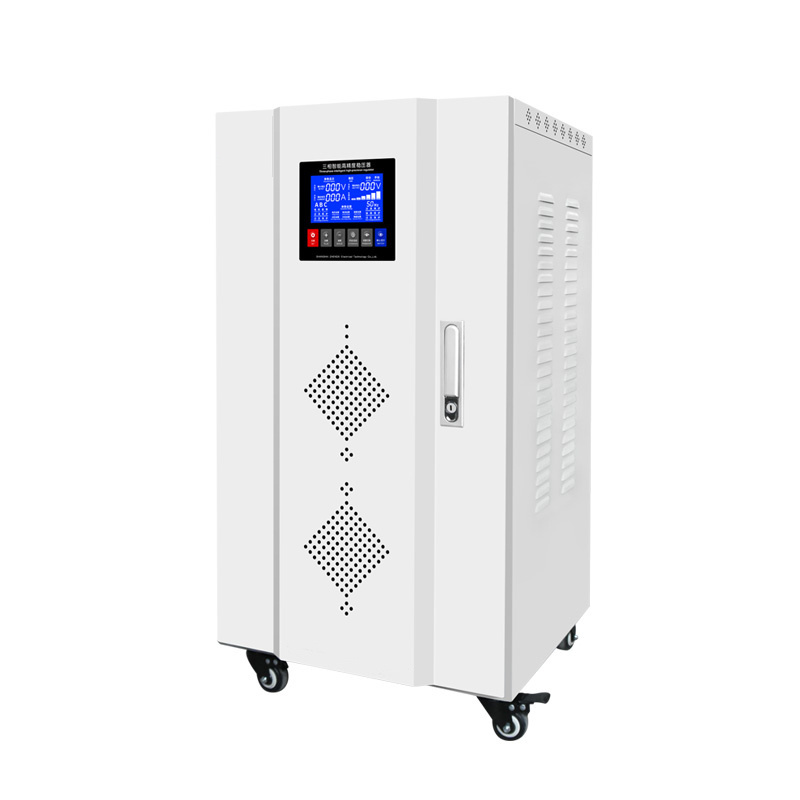

TNS Voltage Stabilizer
TNS Series single and three phase high precision automatic AC voltage regulator is composed of contact type auto voltage regulator, servo motor and automatic control circuit. When the grid voltage is unstable for the load changes, the automatic sampling control circuit sends a signal to drive the servo motor, adjust the position of the auto-coupler carbon brush, adjust the output voltage to the rated value and reach a steady state.
TNS series high-precision AC voltage regulator has the function of direct power supply. It has many advantages such variety, fully specifications and beautiful appearance. It has the advantages of no waveform distortion, high efficiency, reliable performance, long-term operation, etc. It has short delay, overvoltage and other protection functions. It can add long delay and undervoltage protection according to the needs of users. The product can be widely used in any place of electricity, it is an ideal regulated power supply to ensure the normal operation of your electrical equipment.
TNS series high-precision automatic three phase AC regulated power supply is composed of single phase TND series high precision automatic regulated power supply. Three phase and phase to phase adjustment ensures stable and safe voltage of each phase. The grid input is three phase four wire system. Star(Y-shaped) connection, the output can be used three-phase four wire system or three phase three wire system.
TNS series high-precision AC voltage regulator has the function of direct power supply. It has many advantages such variety, fully specifications and beautiful appearance. It has the advantages of no waveform distortion, high efficiency, reliable performance, long-term operation, etc. It has short delay, overvoltage and other protection functions. It can add long delay and undervoltage protection according to the needs of users. The product can be widely used in any place of electricity, it is an ideal regulated power supply to ensure the normal operation of your electrical equipment.
TNS series high-precision automatic three phase AC regulated power supply is composed of single phase TND series high precision automatic regulated power supply. Three phase and phase to phase adjustment ensures stable and safe voltage of each phase. The grid input is three phase four wire system. Star(Y-shaped) connection, the output can be used three-phase four wire system or three phase three wire system.
|
Input voltage
|
Regular models 260-450V/500V, Customized ultra low voltage models
|
|
Output voltage
|
380V
|
|
Voltage regulation accuracy
|
3%
|
|
Frequency
|
50Hz/60Hz
|
|
Overvoltage protection value
|
Output voltage 430V±4V
|
|
Undervoltage protection value
|
Output voltage 320V±4V, regularly not set undervoltage protection
|
|
Load power factor
|
0.8
|
|
Adjust time
|
When the voltage change by10%<1S
|
|
Waveform distortion
|
No additional waveform distortion
|
|
Dielectric strength
|
1500V/1min
|
|
Insulation resistance
|
Three phase >2MΩ
|
|
Insulation class
|
Class E
|
|
Working environment
|
Temperature :-10℃ to +40℃, Humidity: <95%
|
|
Effectiveness
|
>95%
|
|
Temperature rise
|
<60℃
|
Production Details
|
Model
|
Voltage regulation range
|
Product size
|
Package dimension
|
Net
weight KGS |
Gross weight KGS
|
|
TNS-1500VA
|
260V-450V
|
485*320*170mm
|
530*355*225mm
|
13
|
15.5
|
|
TNS-3000VA
|
260V-450V
|
485*320*170mm
|
530*355*225mm
|
17.5
|
20
|
|
TNS-4500VA
|
260V-450V
|
485*320*170mm
|
530*355*225mm
|
18
|
20.6
|
|
TNS-6KVA
|
260V-450V
|
275*307*673mm
|
330*360*760mm
|
26.1
|
30.8
|
|
TNS-10KVA
|
260V-450V
|
310*330*760mm
|
375*385*850mm
|
37
|
43
|
|
TNS-15KVA
|
260V-450V
|
340*360*855mm
|
400*420*950mm
|
46
|
53
|
|
TNS-20KVA
|
260V-450V
|
460*422*880mm
|
470*505*970mm
|
92.8
|
102
|
|
TNS-30KVA
|
260V-450V
|
460*422*880mm
|
470*505*970mm
|
102
|
111
|
|
TNS-40KVA
|
260V-450V
|
460*422*880mm
|
470*505*970mm
|
114.5
|
123.5
|
|
TNS-50KVA
|
260V-500V
|
550*455*1160mm
|
610*510*1310mm
|
141
|
150
|
|
TNS-60KVA
|
260V-500V
|
550*455*1160mm
|
610*510*1310mm
|
161
|
172
|
|
TNS-80KVA
|
260V-500V
|
620*520*1330mm
|
680*580*1470mm
|
185
|
195
|
|
TNS-100KVA
|
260V-500V
|
620*520*1330mm
|
680*580*1470mm
|
205
|
215
|
