Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CSOT
-
Product Name:
-
LCD Dispaly Screen
-
Panel Type:
-
a-Si TFT-LCD , CELL
-
Pixel Format:
-
1366*768(RGB), WXGA 49PPI
-
Dot Pitch:
-
0.51075*0.17025 (H*V)
-
Active Area:
-
697.685(W)*392.256(H) mm
-
Outline Dim.:
-
712.185(W)*410.52(H)*1.34(D) mm
-
Glass Depth:
-
0.50+0.50 mm
-
Contrast Ratio:
-
3000:1 (Typ.) (TM)
-
Response Time:
-
6.5 (Typ.)(G to G)
-
Transmittance:
-
7.0% (Typ.)(with Polarizer)
Quick Details
-
Type:
-
lcd display screens
-
Display Size:
-
32 Inch
-
Supplier Type:
-
Agency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CSOT
-
Product Name:
-
LCD Dispaly Screen
-
Panel Type:
-
a-Si TFT-LCD , CELL
-
Pixel Format:
-
1366*768(RGB), WXGA 49PPI
-
Dot Pitch:
-
0.51075*0.17025 (H*V)
-
Active Area:
-
697.685(W)*392.256(H) mm
-
Outline Dim.:
-
712.185(W)*410.52(H)*1.34(D) mm
-
Glass Depth:
-
0.50+0.50 mm
-
Contrast Ratio:
-
3000:1 (Typ.) (TM)
-
Response Time:
-
6.5 (Typ.)(G to G)
-
Transmittance:
-
7.0% (Typ.)(with Polarizer)

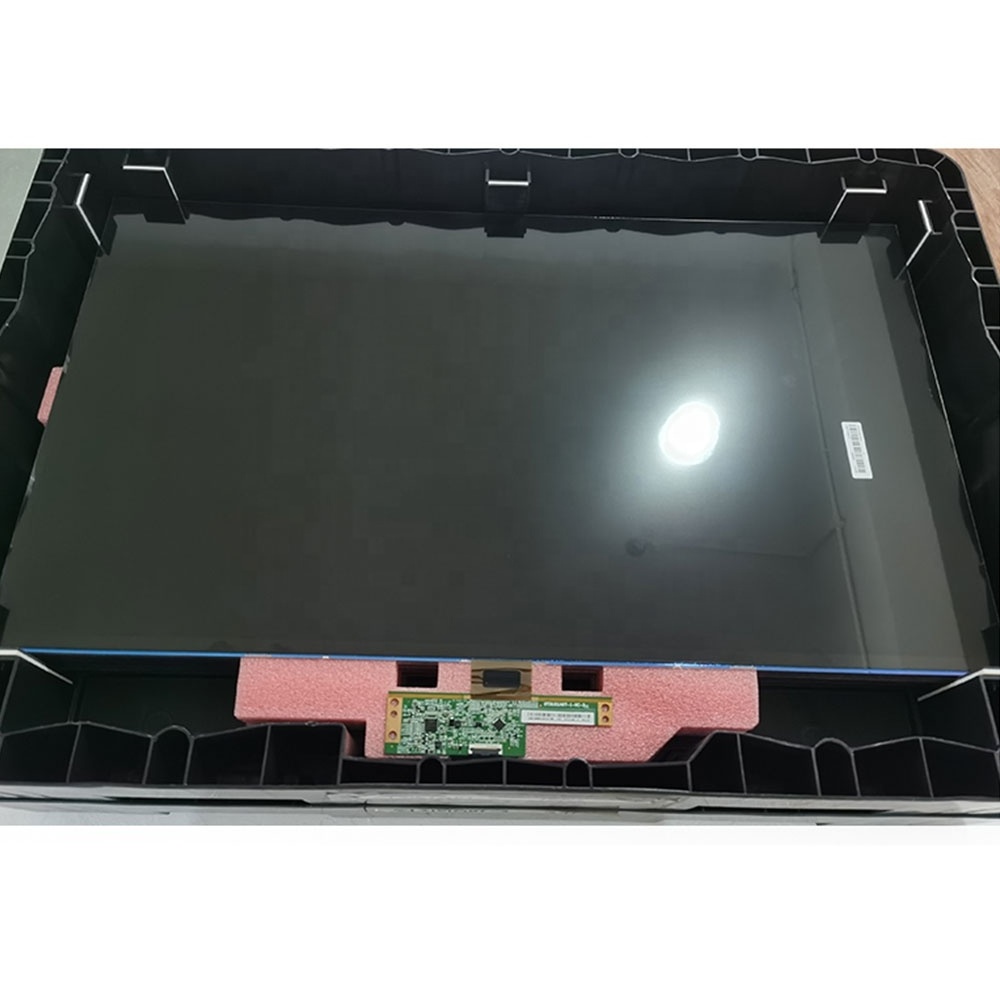

CSOT ST3151A07-2 32 Inch Lcd Panel Open Cell Tv Panel Lcd Panels Replacement For Tv
Product Description
|
Product Specification
|
|
|
|
|
||||
|
Basic Information :
|
Brand
|
CSOT
|
Model
|
ST3151A07-2
|
||||
|
|
Type
|
a-Si TFT-LCD , CELL
|
Screen Size
|
32 inch
|
||||
|
Environment :
|
Storage Temp.
|
-20 ~ 60 °C
|
Operating Temp.
|
0 ~ 50 °C
|
||||
|
Pixel
Features :
|
Pixel Format
|
1366×768(RGB), WXGA
|
Dot Pitch(mm)
|
0.51075×0.17025 (H×V)
|
||||
|
|
Configuration
|
RGB Vertical Stripe
|
Pixel Pitch(mm)
|
0.51075×0.51075 (H×V) [49PPI]
|
||||
|
Mechanical Size :
|
Active Area(mm)
|
697.685(H) × 392.256(V)
|
Bezel Area(mm)
|
-
|
||||
|
|
Outline Dim.(mm)
|
712.185(H) × 410.52(V)
|
Depth(mm)
|
1.34 (Typ.)
|
||||
|
Outline Features :
|
Form Style
|
Flat Rectangle
|
Plate Thickness
|
0.50+0.50 mm
|
||||
|
|
Aspect Ratio
|
16:9 (H:V)
|
Orientation
|
Landscape type
|
||||
|
Other Spec :
|
Weight
|
-
|
Surface
|
Antiglare (Haze 2%), Hard coating (3H)
|
||||
|
Basic
Information :
|
Luminance(cd/m²)
|
0
|
Contrast Ratio
|
3000:1 (Typ.) (Transmissive)
|
||||
|
|
Viewing Angle
|
89/89/89/89 (Typ.)(CR≥10)
|
Display Mode
|
HVA, Normally Black, Transmissive
|
||||
|
|
Best View on
|
Symmetry
|
Response(ms)
|
6.5 (Typ.)(G to G) ms
|
||||
|
Color Performance :
|
Color Numbers
|
16.7M (8-bit)
|
Uniformity
|
-
|
||||
|
|
Chromaticity
|
X:0.275; Y:0.298
|
Color Temperature
|
10087K
|
||||
|
1931
Color Gamlt :
|
NTSC Ratio
|
64%
|
sRGB
|
90% coverage
|
||||
|
|
Adobe RGB
|
67% coverage
|
DCI-P3
|
67% coverage
|
||||
|
|
Rec.2020
|
48% coverage
|
Remarks
|
sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
|
||||
|
Dispaly Performance :
|
Outdoor Visibility
|
No
|
Transmissivity
|
7.0% (Typ.)(with Polarizer)
|
||||
|
Signal
Electrical :
|
Voltage Supply
|
12.0V (Typ.)
|
Current Supply
|
0.29/0.39A (Typ./Max.)
|
||||
|
|
Signal Systerm
|
LVDS (1 ch, 8-bit)
|
Frame Rate :
|
60Hz
|
||||
|
Package Box :
|
Quantity
|
24 pcs / box
|
Box Size
(L×W×H)
|
830×656×126 mm
|
||||
