Quick Details
-
Table Travel (Y) (mm):
-
300
-
Dimension(L*W*H):
-
2200X1900X2200mm
-
Weight (T):
-
1.8 T
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
200 kg
-
Feed Speed(mm/min):
-
1 - 6000 mm/min
-
Rapid Feed Speed(m/min):
-
15
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ELSEN
-
Voltage:
-
380V,50Hz
-
Marketing Type:
-
Hot Product
-
Warranty of core components:
-
2years
-
Product name:
-

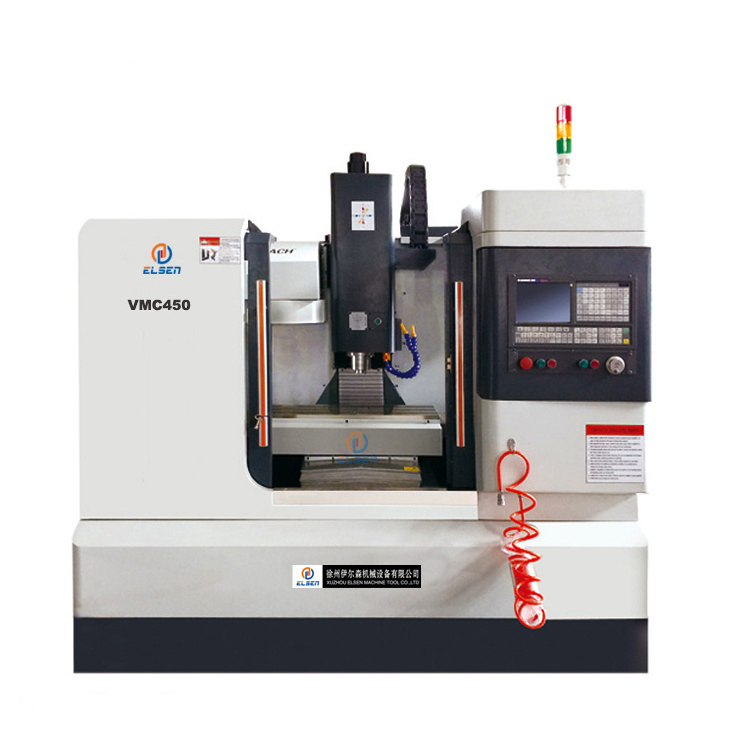

CNC VMC 450 CNC Vertical Milling Machine VMC450 vmc machine
-
Machine Type:
-
CNC Vertical Machining Center
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK
-
Spindle Speed:
-
6000rpm
-
Guideways:
-
Taiwan Linear Guideways
-
Spindle power:
-
2.2KW
-
Spindle:
-
Taiwan Spindle
-
Lubrication:
-
Auto Lubrication
-
Tool Changer:
-
12 Tools Changer
-
Function:
-
Drilling Tapping Milling
Quick Details
-
Table Size (mm):
-
650x260
-
Number of Axes:
-
3, 4
-
Table Travel (X) (mm):
-
450
-
Table Travel (Y) (mm):
-
300
-
Dimension(L*W*H):
-
2200X1900X2200mm
-
Weight (T):
-
1.8 T
-
Range of Spindle Speed(r.p.m):
-
1 - 6000 r.p.m
-
Spindle Motor Power(kW):
-
2.2
-
Max. Table Load(kg):
-
200 kg
-
Feed Speed(mm/min):
-
1 - 6000 mm/min
-
Rapid Feed Speed(m/min):
-
15
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ELSEN
-
Voltage:
-
380V,50Hz
-
Marketing Type:
-
Hot Product
-
Warranty of core components:
-
2years
-
Product name:
-
CNC VMC 450 CNC Vertical Milling Machine VMC450 vmc machine
-
Machine Type:
-
CNC Vertical Machining Center
-
CNC Controller:
-
Fanuc Siemens Syntec KND GSK
-
Spindle Speed:
-
6000rpm
-
Guideways:
-
Taiwan Linear Guideways
-
Spindle power:
-
2.2KW
-
Spindle:
-
Taiwan Spindle
-
Lubrication:
-
Auto Lubrication
-
Tool Changer:
-
12 Tools Changer
-
Function:
-
Drilling Tapping Milling
Products Description
FEATURES:
CNC system controller
High quality machine base
Taiwan famous brad spindle
Taiwan famous brand ball screw
High pressure cylinder
Taiwan linear railway
Japanese bearing
Automatic lubrication system
The fourth axis and Chip conveyor at optional
|
Specifications
|
Unit
|
VMC450
|
|
X-axis travel
|
mm
|
450
|
|
Y-axis travel
|
mm
|
300
|
|
Z-axis travel
|
mm
|
400
|
|
Distance between spindle nose and worktable
|
mm
|
90-520
|
|
Distance from spindle axis to column surface
|
mm
|
360
|
|
Table size
|
mm
|
650x260
|
|
T slot(size-number-pitch)
|
|
14-3-80
|
|
Max. table load
|
kg
|
200
|
|
Max tool weight
|
kg
|
8kg
|
|
Max. tool size
|
mm
|
130x300
|
|
Change tool time
|
s
|
12
|
|
Spindle taper
|
|
BT40
|
|
Max.spindle speed
|
rpm
|
6000
|
|
Main motor power
|
kw
|
2.2
|
|
Cutting speed
|
Mm/min
|
1-6000
|
|
Fast speed(X/Y/Z)
|
M/min
|
15
|
|
Positioning accuracy
|
mm
|
±0.015
|
|
Repeat Positioning accuracy
|
mm
|
±0.0075
|
|
Dimension of machine( L x W x H)
|
mm
|
2200×1900×2200
|
|
Machine weight
|
kg
|
1800
|
Machine Details
