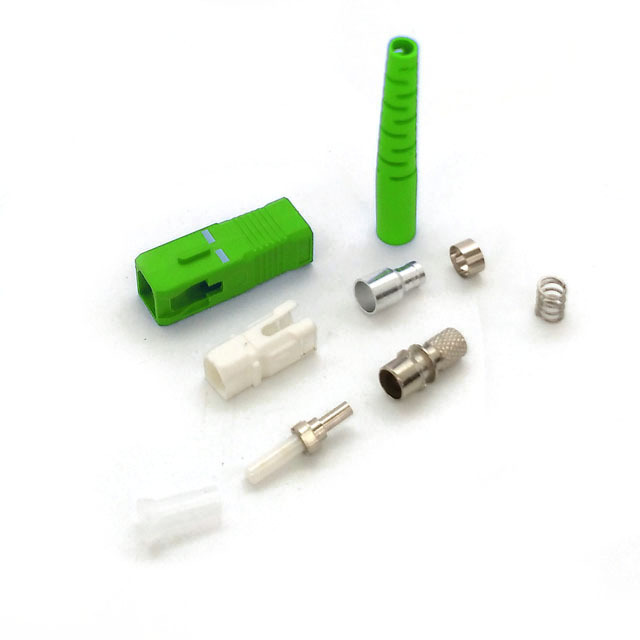

Fiber Patch cord Assocaries SC LC ST FC Fiber Optic Connector

Fiber Patch cord Assocaries SC LC ST FC Fiber Optic Connector

FOB Reference Price: Get Latest Price

≥20 Pieces

US $0.2

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Fiber patch cord assocaries

Application:: FTTH FTTB FTTX Network

Certification:: CE RoHS FCC

Color:: blue ,green ,beige ,aqua

Mode:: SM

Material:: Plastic

Manufacturer:: Yes

Warranty:: 2 year

Quick Details

Type:: Fiber optic patch cord

Model Number:: FOC-003, SC PC connector

Place of Origin:: China

Product name:: Fiber patch cord assocaries

Application:: FTTH FTTB FTTX Network

Certification:: CE RoHS FCC

Color:: blue ,green ,beige ,aqua

Mode:: SM

Material:: Plastic

Manufacturer:: Yes

Warranty:: 2 year

Fiber Patch cord Assocaries SC LC ST FC Fiber Optic Connector

Product Description

Features

1) Superior qualified standard polishing;

2) 100% optic test: Insertion Loss: ≤ 0.3 (PC); ≤ 0.2 (APC); ≤ 0.2 (UPC); ≤ 0.3 (SPC);

3) 100% optic test: Return Loss: ≥ 45 (PC); ≥ 60 (APC); ≥ 55 (UPC); ≥ 50 (SPC);

4) φ 0.9mm, φ 2.0mm, φ 3.0mm cable optional

5) Simplex and duplex connector available;

6) Good exchange ability and good durability;

7) Available in fiber bunch, ribbon fan-out, pigtail available;

8) Meets ISO9001, ROHS and Bell core GR 326-core standards;

9) Customized specifications are welcomed.

Application

* Telecommunication

* CATV

* LAN & WAN

* Network

* Broadband

* FTTH

Specification

Parameter	Unit	FC,LC,SC				ST,MU
		SM			MM	SM		MM
		PC	UPC	APC	PC	PC	UPC	PC
Insertion loss(typical)	dB	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3
Return loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥30
Operating wavelength	nm	1310,1510				1310,1510
Exchangeability	dB	≤0.2				≤0.2
Vibration	dB	≤0.2				≤0.2
Operating temperature	°C	-40~+75				-40~+75
Storage temperature	°C	-45~+85				-45~+85
Cable diameter	mm	Φ3.0,Φ2.0,Φ0.9				Φ3.0,Φ2.0,Φ0.9
