Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve
Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve
Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve
Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve
Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve
Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve
Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve
Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve

Air petroleum oil liquid bronze L9BP/L9-LBP water PTFE oring angle way Safety Valve

FOB Reference Price: Get Latest Price
≥1 Pieces
US $18.92
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Structure:
Safety
Place of Origin:
Taiwan, China
Brand Name:
Bowling
Model Number:
L9BP/ L9-LBP
Port Size:
1/2"~2"
Standard or Nonstandard:
Standard
Valve Seat:
Forging Brass
Spring:
Steel
Stem:
Brass
Safety/ Quality Approvals:
ISO 9001 Certificate
Disc:
Forging Brass

Quick Details

Type:
Safety Relief Valves, Adjustable Relief Valves, Pressure Regulators
Application:
General
Power:
Automatic
Structure:
Safety
Place of Origin:
Taiwan, China
Brand Name:
Bowling
Model Number:
L9BP/ L9-LBP
Port Size:
1/2"~2"
Standard or Nonstandard:
Standard
Valve Seat:
Forging Brass
Spring:
Steel
Stem:
Brass
Safety/ Quality Approvals:
ISO 9001 Certificate
Disc:
Forging Brass

Product Name:

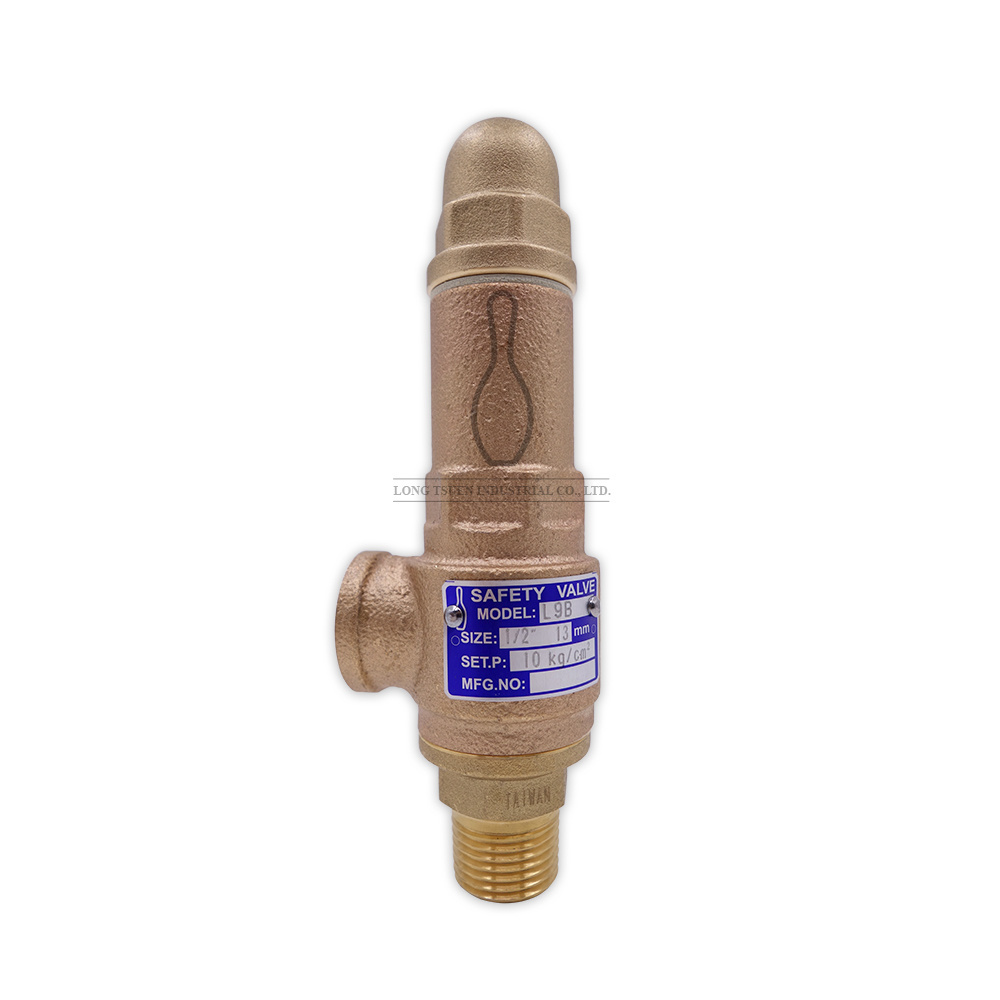

Model L9BP Bronze Safety Valves, With Sealing, PTFE Seal, Low Lift

Model L9-LBP Bronze Safety Valves, With Lever, PTFE Seal , Low Lift

Specification:

Size: 1/2” ~ 2”

Valve Body: Cast Bronze

Valve Seat: Forging Brass

Disc: Forging Brass

Soft Seal: PTFE

Spring: Steel

Stem: Brass

Working Pressure: 2-10 kgf/cm 2 , 11-20 kgf/cm 2

Working Temp.: -45°C to 185°C

Working Fluid:

Noncorrosive Gas, Noncorrosive Liquid, Air, Steam, Water, Oil (Model L9BP)

Noncorrosive Gas, Corrosive Gas, Air, Steam (Model L9-LBP)

Dimensions (Unit:mm)

L9BP

Inlet

B

Outlet

C

Valve Seat Orifice

D

E

F

Lift

Wt.

kg

L9-LBP

Wt.

kg

1/2”

145

1/2”

1/2”

13

29

49

0.52

0.50

1/2”

168

0.6

3/4”

167

3/4”

3/4”

19

36

55

0.76

0.80

3/4”

190

0.9

1”

202

1”

1”

25

40

67

1.00

1.30

1”

223

1.4

1-1/4”

233

1-1/4”

1-1/4”

32

50

79

1.28

2.20

1-1/4”

248

2.2

1-1/2”

257

1-1/2”

1-1/2”

38

54

86

1.52

2.90

1-1/2”

272

2.9

2”

283

2”

2”

50

66

96

2.00

4.70

2”

299

5.0

Safety/ Quality Approvals:

ISO 9001 Certificate
