- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Sinotruk Hohan
-
Market Segement:
-
Hazardous chemicals transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Onsite Installation
-
Size:
-
6800x2496x2958
-
Gross Vehicle Weight:
-
25000 kg
Quick Details
-
Condition:
-
New
-
Horsepower:
-
150 - 250hp
-
Emission Standard:
-
Euro 2
-
Brand Name:
-
Sinotruk Hohan
-
Market Segement:
-
Hazardous chemicals transportation
-
Engine Capacity:
-
> 8L
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Onsite Installation
-
Size:
-
6800x2496x2958
-
Gross Vehicle Weight:
-
25000 kg
♣ 1.Production Description
Main specifications of SINOTRUK Hohan 4X2 tractor head small mini tractor truck
|
Item |
Sinotruk Hohan 4X2 tractor head small mini tractor truck |
|
|
Chassis model |
ZZ4185N3616 2018 New Truck | |
|
Driving type |
Left hand drive (LHD) | |
|
Color |
Optional (yellow, red, black, white, blue, grey, green) |
|
|
Engine |
Model |
SINOTRUK brand, MC11.36-4,360hp, Euro IV , Diesel. |
|
Type |
Six cylinders inline, water cooling, 4 stroke, supercharge intercooler | |
|
Engine net weight (kg) |
955 |
|
|
Rated Power (kw/rpm) |
265/2200 |
|
|
Maximum Torque (Nm) |
1800N.m |
|
|
Maximum Torque speed |
1000~1400RPM | |
|
Compression ratio |
19:01 |
|
|
Bore X Stroke |
120x155mm | |
|
Displacement L |
10.518 |
|
|
Lgnition order |
1-5-3-6-2-4 | |
|
Cabin |
H18, German BENZ Technology, extended cab with two sleepers (berths), air-conditioner, damping comfortable seat, dash board with LCD, MP3, safety belts, curtain, electrical window regulator, adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorber devices etc. |
|
|
Transmission |
HW19710, 10 F and 2 R, manual. Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction. |
|
|
Front Axle |
HF7, rated load 7000kg, drum brake. |
|
|
Rear Axles |
MCY11, rated load 16000kgx2, Speed ratio: 4.11 |
|
|
Steering |
D50, power steering with hydraulic system. |
|
|
Brake system |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
|
Tires |
12R22.5 Steel radial tires, plus one spare tire (totally 11 units) |
|
|
Max. speed |
102km/h |
|
|
Fuel tank |
400L volume |
|
|
Lifting Model |
Ventral Lifting, strengthen T model |
|
|
External dimension |
6175x 2500x3700mm |
|
|
Loading Capacity |
30T |
|

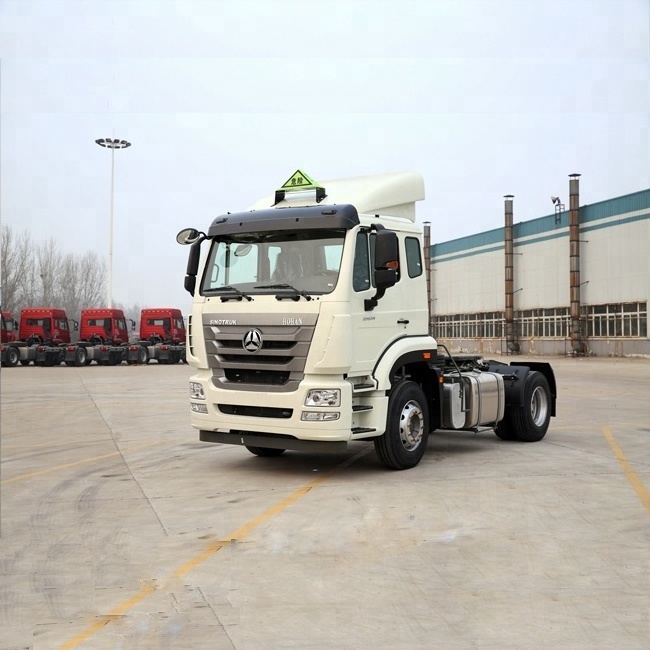

Photos of SINOTRUK Hohan 4X2 tractor head small mini tractor truck
