Quick Details
-
Brand Name:
-
ACS
-
Product name:
-
nfc BT reader
-
Power source:
-
Rechargeable Lithium-ion Battery
-
Speed:
-
1Mbps
-
Interface:
-
BT
-
Standard:
-
ISO 14443 Type A,
-
Operating Frequency:
-
13.56 MHz
-
Operating distance:
-
Up to 25mm
-
Color:
-
White
-
Dimensions:
-
60mm(L)47.98mm(W)12mm(H)
-
Weight:
-
20g
Quick Details
-
Frequency:
-
13.56Mhz
-
Protocol:
-
ISO 14443A
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACS
-
Product name:
-
nfc BT reader
-
Power source:
-
Rechargeable Lithium-ion Battery
-
Speed:
-
1Mbps
-
Interface:
-
BT
-
Standard:
-
ISO 14443 Type A,
-
Operating Frequency:
-
13.56 MHz
-
Operating distance:
-
Up to 25mm
-
Color:
-
White
-
Dimensions:
-
60mm(L)47.98mm(W)12mm(H)
-
Weight:
-
20g
Products Description
|
Dimensions
|
60mm(L)×47.98mm(W)×12mm(H)
|
Weight
|
20g
|
|
Color
|
White
|
Temperature
|
0℃-50℃
|
|
Humidity
|
Max.90%(non-condensing)
|
MTBF
|
500,000 hrs
|
Support credit card payment,NFC reader，EMV certificates ，There are more ACR readers for you to choose from, if you want to know more,
please click here

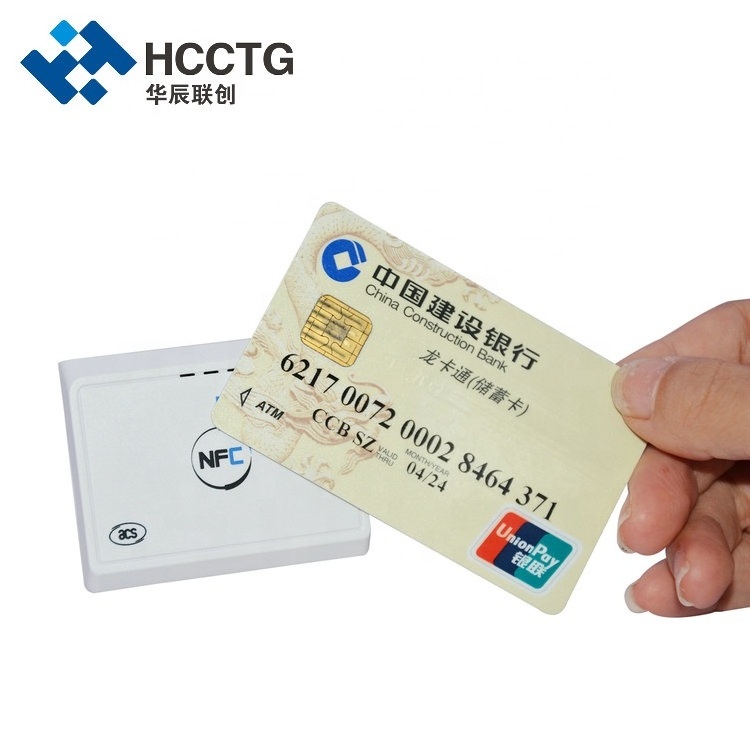

ACR1311U-N2 BT NFC Reader combines the latest 13.56 MHz contactless technology with BT Smart connectivity for on-the-go smart card and NFC applications.
|
USB Interface
|
|
|
|
|||
|
Protocol
|
USB Full Speed
|
Type
|
Four Line:+5V,GND,D+ and D-
|
|||
|
Connector Type
|
Micro USB
|
Power Source
|
From USB Port
|
|||
|
Speed
|
USB Full Speed (12 Mbps)
|
Cable Length
|
1 m (Datachable)
|
|||
|
Firmware
|
Upgradeable through USB Interface
|
|
|
|||
|
Contactless Smart Card Interface
|
|
|
|
|||
|
Standard
|
ISO 14443 Type A,MIFARE,DESFIRE
|
Protocol
|
ISO 14443 T=CL for ISO14443-4 compliant cards, and T+CL Emulation for MIFARE Classic 1k/4k and NFC tags
|
|||
|
Operating Frequency
|
13.56MHz
|
Operating Distance
|
Up to 25mm(depending on tag type)
|
|||
|
Smart Card Read/ Write Speed
|
106Kbps,212Kbps,424Kbps
|
Antenna Size
|
28.00mm×32.00mm
|
|||
|
Built-in Peripherals
|
|
|
|
|||
|
LED
|
2bi-color, Red and Blue,Red and Green
|
Buzzer
|
Monotone
|
|||
|
Application Programming Interface
|
|
|
|
|||
|
PC-link Mode
|
PC/SC
CT-API(through wrapper on top of PC/SC) |
Certifications/Compliance
|
EN60950/IEC 60950,ISO 14443,USB Full Speed,BT Smart, PC/SC,CCID,RoHS 2, REACH, Microsoft® WHQL
|
|||
|
Device Driver Operating System Support
|
Windows®ME,Windows®98,Windows®2000,Windows®XP,Windows®Vista,Windows®7,Windows®8,Windows®8.1,Windows®10,Windows®Server2003,Windows
®Sever2008,Windows,®Sever2008R2,Windows ®Sever2012,Windows®Sever2012R2,Linux®,Mac OS®, Android, IOS |
|
|
|||
Feature
1.USB 2.0 full speed interface
2.BT 4.0 smart interface
3.Plug and Play – CCID support brings utmost mobility
4.USB Firmware Upgradeability
5.Smart Card Reader
6.Application Programming Interface
7.Supports Android™ 4.3 and above
8.Supports iOS 5.0 and later
9.Built-in Peripherals
HOT ACR card reader
OEM Company
OEM
Handheld Pos
,
Retail Desktop Pos
,
Bus validator
,
Barcode scanner
,
BT printer
,
Smart card reader
Most of our products have passed CE, FCC, RoHS international standard, and also approved by Unionpay, EMV, PCI, Visa, MasterCard Industry Professional Certifications, which greatly ensure the highest level safety and quality of our products.
