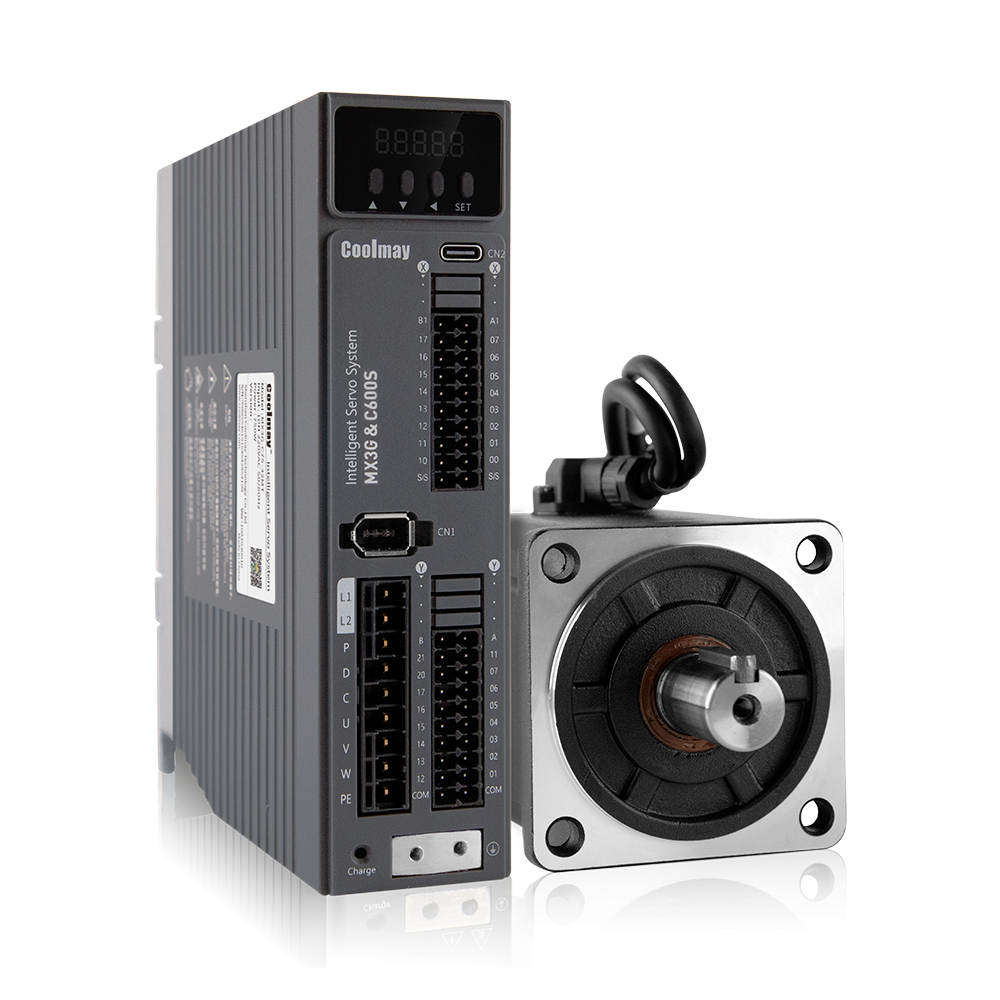

AC Servo Motor 2.3kw and Drive 850w AC Motor Speed Controller

FOB Reference Price: Get Latest Price

≥2 Pieces

US $85

Free Inquiry

Customized Request

Quick Details

Product Description

Specification

Model	MX3G-C40-32MT	MX3G-C75-32MT
Dimension	16013542 mm
Installation dimension	150*27 mm
Output power	0.05KW-0.4KW	0.75-1KW
Input power	Main circuit power supply: single-phase AC220V, voltage range 200V~240V, 50/60Hz Control loop power supply: internal conversion, no external power supply
PLC logic power supply voltage	DC24V
Communication type	RS485 (supports ModBUS and RS protocols)
Drive motor	Linear (DDL), torque (DDR), voice coil, brushless, brushless servo motor
Control mode	Motion sequence, point to point, electronic gear, position, speed, torque control mode
Encoder feedback	17 bit single loop absolute value encoder
Operation mode	Independent programmable control (PLC), external control (step pulse, PWM, encoder A/B), or distributed network control (Modbus/RS communication)
Input /output signal	16 photoelectric isolated inputs 16 photoelectric isolated outputs, of which three high-speed pulses are programmable and general-purpose
Rated power	0.45KW	0.75KW
Rated current range of adaptive motor (A)	2.5A	3A
Program capacity	16K /step
Data register	D0~D3999, 4000 points in total
Vibration/ shock	4.9 (m/s2) /19.6 (m/s2 )
Comprehensive protection design	Overcurrent, short circuit, grounding, overvoltage, undervoltage, I2t, control error
