Quick Details
-
Brand Name:
-
FIBERCAN
-
Use:
-
FTTA
-
Warranty Time:
-
20 year
-
Product name:
-
R&M licenced, RoHS, Reach. ISO
-
Model:
-
e2000/apc-LC/APC DX
-
advantage:
-
R&M office licenced/ factory direct price
-
cable OD. type:
-
3.0mm or customized
-
Fiber Type:
-
SM 9/125 optional
-
cable jacket material:
-
yellow LSZH CPR Cca grade
-
Insertion loss:
-
IL<0.2dB
-
Application:
-
FTTH FTTB FTTC
-
Standards:
-
IEC, Telcordia-GR-326-Core
-
OEM welcome:
-
special price for big order
Quick Details
-
Type:
-
Fiber optic patch cord
-
Model Number:
-
e2000/apc
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
FIBERCAN
-
Use:
-
FTTA
-
Warranty Time:
-
20 year
-
Product name:
-
R&M licenced, RoHS, Reach. ISO
-
Model:
-
e2000/apc-LC/APC DX
-
advantage:
-
R&M office licenced/ factory direct price
-
cable OD. type:
-
3.0mm or customized
-
Fiber Type:
-
SM 9/125 optional
-
cable jacket material:
-
yellow LSZH CPR Cca grade
-
Insertion loss:
-
IL<0.2dB
-
Application:
-
FTTH FTTB FTTC
-
Standards:
-
IEC, Telcordia-GR-326-Core
-
OEM welcome:
-
special price for big order

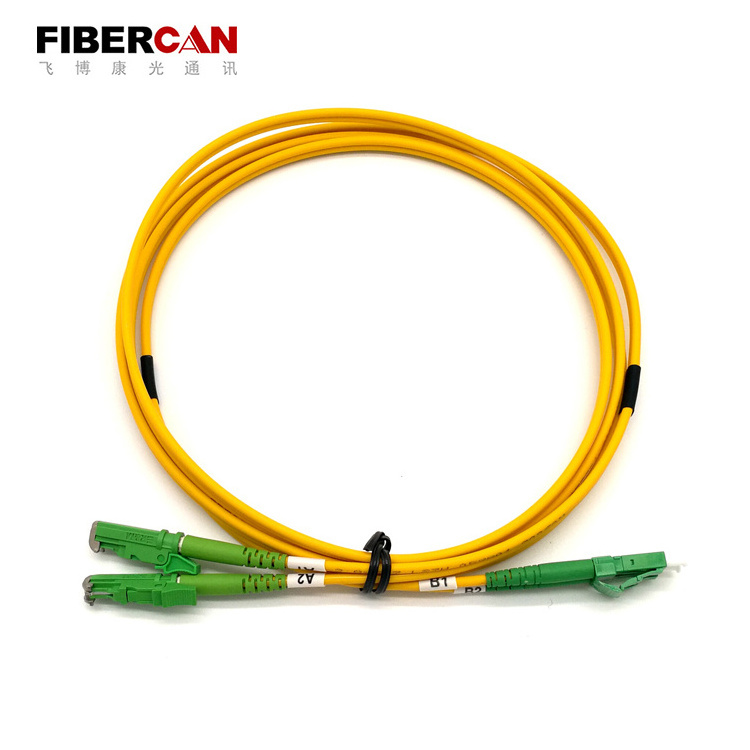

FIBERCAN factory Licenced E2000/APC-LC/APC patch cord DX 3.0mm LSZH
Pls contact us for R&M offical licened certifiates if needed.
FIBERCAN fiber connectors are coming with utility patents, high-efficienct assemling craft design, save 30% assembling time and labour, high standard quality, environment-friendly metal hardwares and plastic parts, fire resistant material, strictly quality control. T otally unique!!!
FIBERCAN design, develop moulds and produce various of kinds of Single Mode and Multimode fiber optic connectors for ST, SC, FC, LC, and MTRJ applications. Each fiber optic connector is functionally tested before shipping and is covered by a lifetime warranty.
|
Product Name : |
Licenced E2000/APC-LC/APC patch cord DX 3.0mm LSZH |
|
1. A end connector |
Licenced E2000/APC 3.0mm or customized |
|
2. B end connector |
DX LC/APC 3.0mm or customized |
|
3. Fiber Count |
DX 3.0mm G657A2 or customized |
|
4.Cable Jacket |
yellow LSZH CPR Cca grade or customized |
|
5. Cable Length |
1m or customized 1.5m, 2m etc.. |
|
6. Cable O.D. |
3.0mm or customized 3.0mm, 2.0mm, 1.2mm, 0.9mm |
|
7. Fiber brand |
Fiber brand : YOFC O=OFS, etc. |
Cable construction:
Features and base specification :
1.Comply with IEC61754-20, Telcordia-GR-326-CORD.
2.Insertion loss≤ 0.2dB(SM&MM); Return loss: S M≥ 50 dB , APC≥ 60dB
3.Tesile strength:70N
4. Mating durablity ≤ 0.2dB(500 times);
5. RoHS copmliant.
6. Pre-assembled one piece designed to reduce aessembling time
7. Optical performance 100% factory tested.
8. Different housing colors option
Application :
1: Telecommunication networks;
2: Local area networks; CATV;
3: High density data center system networks;
Hot Adapter compatible with Corning Optitap, clink below picture.
Our factory
FIBERCAN has mold workshop and more than 30 set injetion machine, can offer a full range of fiber connectors, adapters, wall boxes, splice trays and so on. Strong company power to support OEM and ODM services.
