Quick Details
-
Mounting size:
-
71(W)*29(H)mm
-
Product size:
-
75(W)*34.5(H)*85(D)mm
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Elitech
-
Model Number:
-
STC-9200
-
Mounting size:
-
71(W)*29(H)mm
-
Product size:
-
75(W)*34.5(H)*85(D)mm

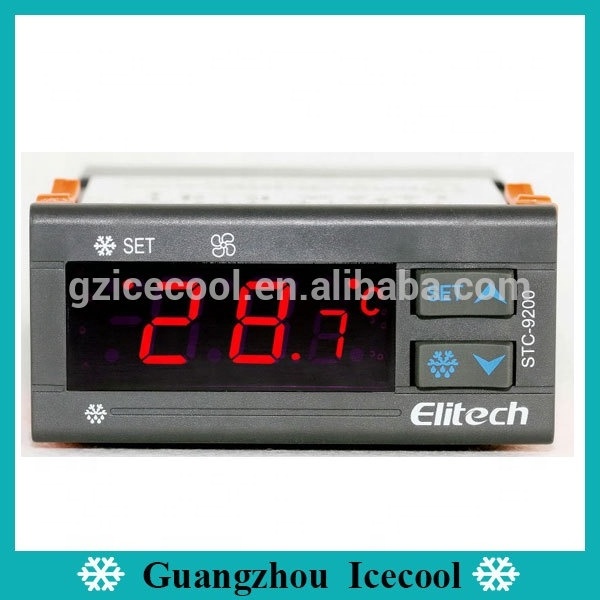

Elitech microcomputer temperature controller STC-9200 for cold storage /Freezer/refrigerator
-Product Specification:
Product Overview
The ntc temperature sensor is widely used in all kinds of cold storage, low-temperature freezer, kitchen refrigerator
Main functions and features:
1.Multi-control mode among refrigeration,defrost,fan,etc.
2.User menu and administrator menu can be set separately. Not only convenient for user operation, but also left enough space for the adjustment of high-level management.
3.Differential control mode, and the resolution of temperature display is 0.1
o
C
4.Multi-protection and alarm mode optional
5.COPYKEY function.
Main functions and features:
1.Multi-control mode among refrigeration,defrost,fan,etc.
2.User menu and administrator menu can be set separately. Not only convenient for user operation, but also left enough space for the adjustment of high-level management.
3.Differential control mode, and the resolution of temperature display is 0.1Degrees Celsius
4.Multi-protection and alarm mode optional
5.COPYKEY function.
Parameters:
Power supply: 110V, 220VAC±10%, 50/60Hz
Temperature measuring and controlling range: -50~+50°C
Resolution: 0.1
Accuracy: ±1°C
Relay capacity of Compressor, defrost and fan: 8A/220VAC
Sensor type: NTC (2M)
Shell: gray ABS flame retardant material
Specifications:
Mounting size: 71(W) * 29 (H) (mm)
Products size: 74 (W) * 34.5 (H) * 85 (D) (mm)
