Factory Cheap Steel Vertical Factory Lifting Automatic Sliding Warehouse Overhead Industrial Door

Factory Cheap Steel Vertical Factory Lifting Automatic Sliding Warehouse Overhead Industrial Door

FOB Reference Price: Get Latest Price

≥2 Square meters

US $500

≥10 Square meters

US $400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Outdoor

Design Style:: Industrial

Place of Origin:: Zhejiang, China

Brand Name:: OEM

Model Number:: QT-1

Opening Method:: ELECTRIC LIFT

Door description:: Heavy-duty Industrial Sectional Overhead Doors

Door sections:: 500mm high sandwich sections 42mm thk

Insulation foam:: CFC-free process injected polyurethane foam

Counterbalancing springs:: Helically wound oil tempered stress relieved torsion springs

Drive:: Direct or via sprocket and chain driven by side-mounted gearmotor

Door tracks:: 2.0mm thk rolled-formed galvanised steel track

Opening direction:: Auto Lift

Certificate:: CE

MOQ:: 1sets

Quick Details

Door Material:: Steel+PU forming

Feature:: Waterproof

Main Material:: Plastic-Steel

Application:: Outdoor

Design Style:: Industrial

Place of Origin:: Zhejiang, China

Brand Name:: OEM

Model Number:: QT-1

Opening Method:: ELECTRIC LIFT

Door description:: Heavy-duty Industrial Sectional Overhead Doors

Door sections:: 500mm high sandwich sections 42mm thk

Insulation foam:: CFC-free process injected polyurethane foam

Counterbalancing springs:: Helically wound oil tempered stress relieved torsion springs

Drive:: Direct or via sprocket and chain driven by side-mounted gearmotor

Door tracks:: 2.0mm thk rolled-formed galvanised steel track

Opening direction:: Auto Lift

Certificate:: CE

MOQ:: 1sets

Product Overview

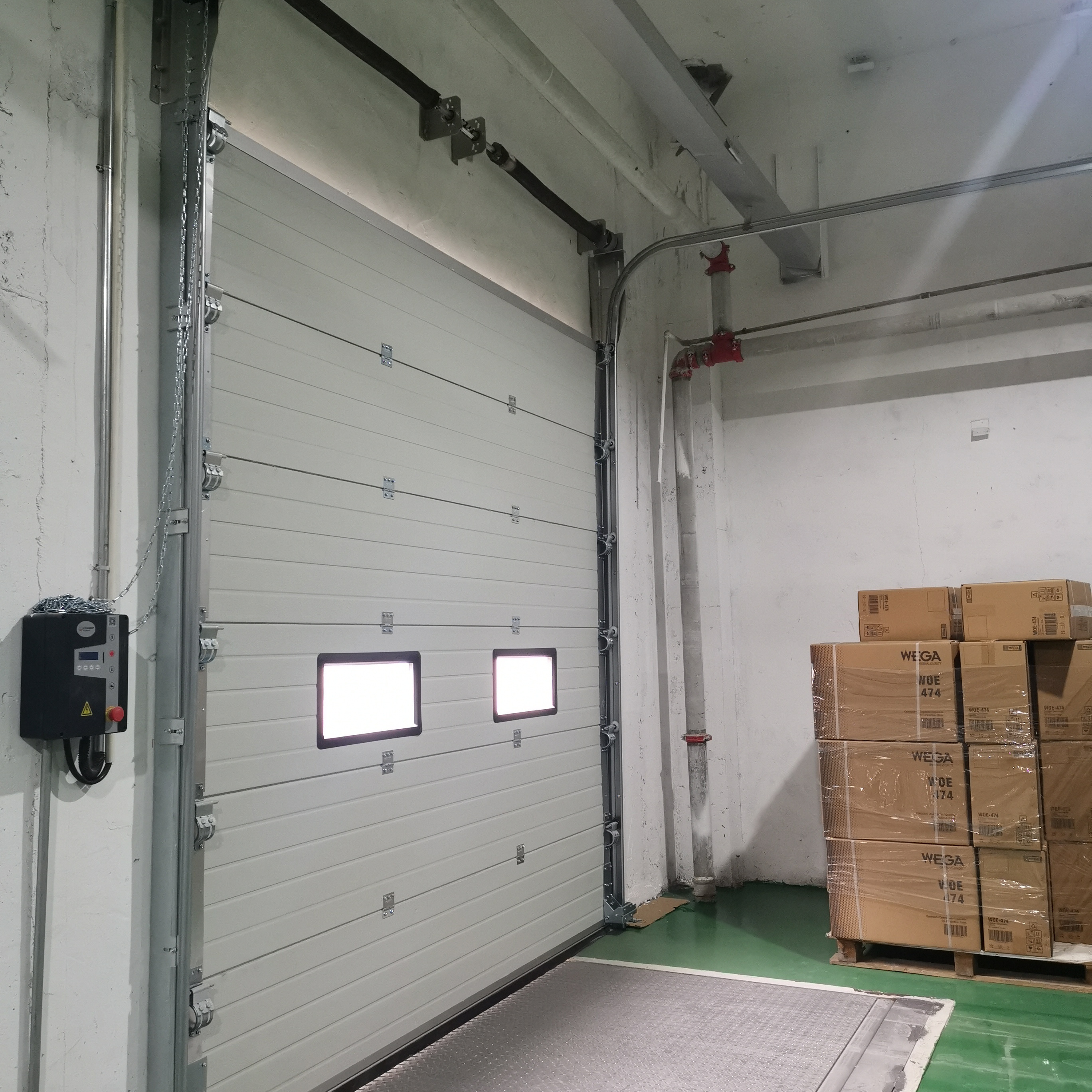

Industrial Overhead sectional door

Cutedoor inustional overhead sectional door, used in industrial buildings, with a dynamic balance system, the door body two sides of the roller along the guide rail up and down the whole of the door.

FEATURES AT A GLANCE

Excellent performance of heat preservation

Wind resistance

Sealing and anti-theft

Low failure rate

Less maintenance cost

A variety of safety protection

Long service life and other characteristics

Materials of Door Plank

Thermal insulation door plank

The thickness of the door plate can be made according to the size of the door body, 40-50mm thickness ;Double-sided color steel plate 0.5mm, poly through polyurethane high pressure foaming, foaming uniform dense, density of 48±2kg/m3 using Germany "Bayer" polyurethane foaming material, environmental protection, freon free (FCKW) Foaming materials include black material, white material, foaming agent, catalyst.

PRODUCT SPECIFICATIONS

	QT-1	QT-2	QT-3	QT-10
	Insulated Sectional Doors	Single Sectional Doors	Wind Rated sectional Door	Commercial Aluminum Full View Doors
Max.dimensions	W5000mm x H5000mm	W11000mm x H7000mm	W11000mm x H5000mm	W5000mm x H5000mm
Opening speed Closing speed	0.2m/s	0.2m/s	0.2m/s	0.2m/s
Drum	Shaft- Ø 26mm	Shaft- Ø 26mm	Shaft- Ø 32mm	Shaft- Ø 26mm
Panel thickness	500mm high sandwich sections 42mm thk injected polyurethane foam, with 0.5mm thk stucco-embossed steel outer and inner skins	Aluminium framewrok 2.0mm +0.7mm thk plating	Density of 48kg/m3 PU foam 50mm+back bar thinckness 80mm	Single or Double transparent PC 3~5mm+aluminium framework 2.0mm
Plating thickness	Steel plate 0.5mm	Aluminium plate 0.7mm	Steel plate 0.5mm	PC 3~5mm
Wind load	Class 3	Class 3	Class 4	Class 3
Vertical Track and Angle	2.0mm thk folded steel, galvanised before cutting and folding.	2.0mm thk folded steel, galvanised before cutting and folding.	2.0mm thk folded steel, galvanised before cutting and folding.	2.0mm thk folded steel, galvanised before cutting and folding.
Driver	Direct or via shaft or sprocket and chain driven by side-mounted motor,IP54	Direct or via shaft or sprocket and chain driven by side-mounted motor,IP54	Direct or via shaft or sprocket and chain driven by side-mounted motor,IP54	Direct or via shaft or sprocket and chain driven by side-mounted motor,IP54
Standard detectors	Safety airbag edge protection.(Option:Infrared barrier: 300 mm from the floor.)	Safety airbag edge protection.(Option:Infrared barrier: 300 mm from the floor.)	Safety airbag edge protection.(Option:Infrared barrier: 300 mm from the floor.)	Safety airbag edge protection.(Option:Infrared barrier: 300 mm from the floor.)
Sealer	All round rubber sealer	All round rubber sealer	All round rubber sealer	All round rubber sealer
Actuation options	Push Buttons,Remote	Push Buttons,Remote	Push Buttons,Remote	Push Buttons,Remote
Power supply Frequency	3phase-220/380v,50-60 Hz	3phase-220/380v,50-60 Hz	3phase-220/380v,50-60 Hz	3phase-220/380v,50-60 Hz
Double and triple glazed windows of various configurations and designs, trip free threshold wicket personnel doors, safety equipment, operator options, bespoke graphic advertising.

Installation Dimension

Production Line

Our Servise

Servise

Our factory can support curtain and steel for free to confirm quality without freight cost.After any inquiry, our customer will get effect drawing.Contact us without hesitation now , Cutedoor regards the provision of reliable and responsive service as a critical part of our business.
