2. Polish nails by nail polishing machines
3. Pack nails
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Shenda
-
Weight (KG):
-
1300
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Product Overview

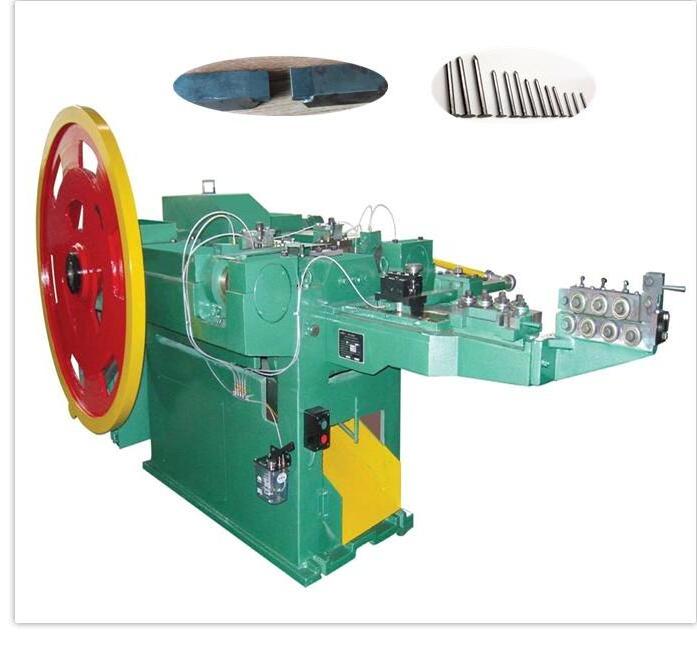

New Automatic Wire Nail and Screw Making Machines to Make Nails/Nail Production Machine
Wuxi Shenda Nail Machinery Factory is a expenrienced factory, specializing in exporting various machines and equipments since 1995.
Our main products include:
1. Nail Making Machine Production Line,
2. Wire Drawing Machine Production Line,
3. High-speed Screw Rolling Machine,
4. High-speed Coil Nail Machine.
FEATURES AT A GLANCE
Main nail making process
1. Produce nails by nail making machines
The machine purpose:
It can make nails below:
1. wire nail,
2. cloud nail,
3. U nail,
4. Double-head nail,
5. Roofing nail,
6. Concrete nail,
7. Rivet nail
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
Model
|
Z94-2C
|
Z94-3C
|
Z94-4C
|
Z94-5.5C
|
|
1. Nail Dia
|
1.2-2.5mm
|
1.8-3.4mm
|
2.8-4.5mm
|
3.7-5.5mm
|
|
2. Nail Length
|
16-50mm
|
30-75mm
|
50-100mm
|
80-150mm
|
|
3. Motor Power
|
2.2kw
|
2.2kw
|
4kw
|
5.5kw
|
|
4. Nail Speed
|
350pcs/min
|
320pcs/min
|
280pcs/min
|
200pcs/min
|
|
5. Mesure Size
|
1.6*1.1*1.3m
|
1.8*1.26*1.46m
|
2.2*1.54*1.59m
|
2.4*1.6*1.6m
|
|
6. Weight
|
1200Kg
|
1400Kg
|
2000Kg
|
2500Kg
|
PRODUCT CONFIGURATION
High Quality Gear
Compact Machine Structure
Nail Punching System
Nail spare parts
Nail mould: Clamp the wire,
Nail knife: Cut the wire to make nail top,
Punch pin: Make nail head
Grinding wheel
It is installed in cutter grinder machine to resharp nail knife
Drawing dies
drawing dies: It is used during the wire drawing production line.
It is to change the wire diameter.
Nail Polishing Machine
It is used to polish nail after making nail by nail making machine
It can make nails clean and bright
It can make nails clean and bright
Nail cutter grinder machine
Re-sharpe the nail knife after nail knife is pointless
Successful Project
Project in Thailand
Project in Kenya
Project in Ethiopia
SIMILAR PRODUCTS
Wire drawing machine
Wire drawing machine includes water seal cooling system, so the machine temperature will not be high, it is safe to the worker.
For example, in nail making factory, if we need 4mm nail, then we need wire drawing machine to draw raw steel wire 6.5mm to 4mm first.
FAQ
* Q1:How long is the machine delivery time?
* Q2:Why can choose us for establishing further business relations?
A2:Diversified products,high-quality equipments and rich-experienced factory with 26 years.
A1:Usually 10 days for normal machine.
* Q2:Why can choose us for establishing further business relations?
A2:Diversified products,high-quality equipments and rich-experienced factory with 26 years.
