Quick Details
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
4.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
IGOLDENCNC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000*3000*200mm
-
Weight (KG):
-
1600
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Key word:
-
cnc machine
-
working area:
-
2000*3000*200mm
-
spindle power motor:
-
4.5kw
-
spindle speed:
-
0-24000rpm/min
-
table structure:
-
vacuum table with T slot
-
XYZ structure:
-
XY Rack pinion ,Z Ball Screw
-
System:
-
DSP
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
2000×4000
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.05 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
4.5kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
IGOLDENCNC
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2000*3000*200mm
-
Weight (KG):
-
1600
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training
-
Key word:
-
cnc machine
-
working area:
-
2000*3000*200mm
-
spindle power motor:
-
4.5kw
-
spindle speed:
-
0-24000rpm/min
-
table structure:
-
vacuum table with T slot
-
XYZ structure:
-
XY Rack pinion ,Z Ball Screw
-
System:
-
DSP
-
Certification:
-
CE

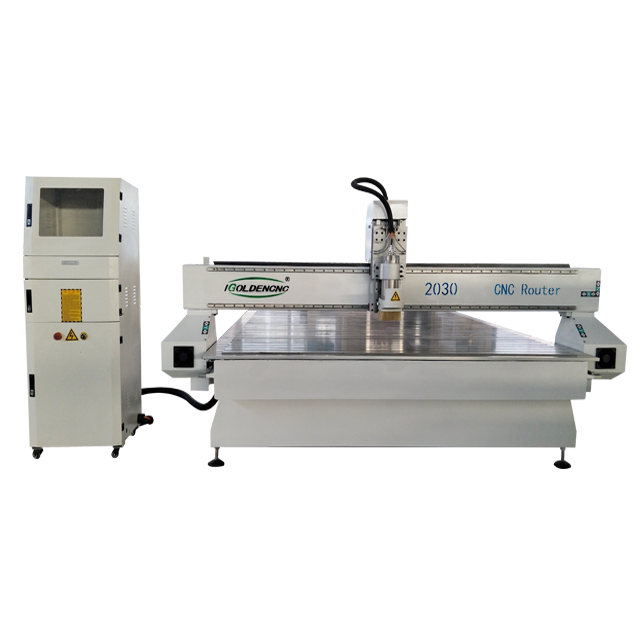

wood working machine cnc wood carving machine cnc router igoldencnc 2030
NEW DESIGN
|
Model |
IGW-1325 |
|
|
Working areas |
X Travel |
1300mm |
|
Y Travel |
2500mm |
|
|
Z Travel |
200mm |
|
|
Drive and transmission |
X Y |
Helical Rack and pinion , Taiwan square guide rail/ Japan PDF brand |
|
Z |
Germany ballscrew, Taiwan square rail |
|
|
Motor |
china step motor |
|
|
Spindle
|
Power |
4.5kw |
|
Cooling type |
HQD brand air cooled/ | |
|
speed |
0 -18 000rpm |
|
|
Machine body |
welded steel structure |
|
|
Table size |
1300mm*2500mm |
|
|
Table type |
Vacuum suction table |
|
|
Working Voltage |
AC220V/50HZ AC380V/ 50Hz |
|
|
Idling Speed |
0- 3 5 m/min |
|
|
Engraving speed |
0-30m/min |
|
|
Reposition Accuracy |
0.03mm |
|
|
Control System |
DSP |
|
|
File format |
G code |
|
|
Compatible software |
ArtCAM |
|
|
Tooling Diameter |
3.175-12.7mm |
|
|
Certificate |
CE |
|
IGW -1325 is a most popular mode cnc router for its High configuration & Competitive price.
It is widely used in cutting, engraving, milling, drilling, etc.
1 . Germany Helical racks and china famous guide rails more stable and has much higher precision than the common rack and rails .
2. China HQD AND ITALY HSD SPINDLES for optional,can choose the one suit for you best.
3. Automatic loading and unloading table for optional
4. Free dust collector to collecting wood dust, which makes sure the workshop clean and provide convenience for you .
wood, aluminum, plastic, density board, MDF, wave board, PVC, acrylic, crystal, light marble and other nonmetal materials and light metal material.
1. Woodworking Industry:wooden door, various furniture product , Wooden crafts. Etc
2. Advertising Industry: PVC, PCB, Double color boards, acrylic, plastic , etc
3. Other industry: such as tombstone, music instrucment, mould makeing ,etc
Please feel free to tell us your detailed requests, then we can recommend you the most suitable machine!
The price will be different with different configurations.
