- Product Details
- {{item.text}}
Quick Details
-
Raw material:
-
garri
-
Capacity:
-
500kg/h
-
Certification:
-
CE ISO
-
Suitable for:
-
food factory
Quick Details
-
Place of Origin:
-
Henan, China
-
After-sales Service Provided:
-
Online support
-
Product name:
-
food processing machinery garri processing equipment for cassava garri
-
Raw material:
-
garri
-
Capacity:
-
500kg/h
-
Certification:
-
CE ISO
-
Suitable for:
-
food factory
food processing machinery garri processing equipment for cassava garri making machine
Introduction of Garri production line
Garri is a popular West African food made from cassava tubers. To make garri, cassava tubers are peeled, washed and grated or crushed to produce a mash. The mash is placed in a non-water proof bag and allowed to ferment for one or two days, while weights are placed on the bag to press the water out. It is then sieved (or sifted) and roasted by heating in a bowl. The resulting dry granular garri can be stored for long periods. If you need to make fine flour, you need a milling machine to be crushed or ground.

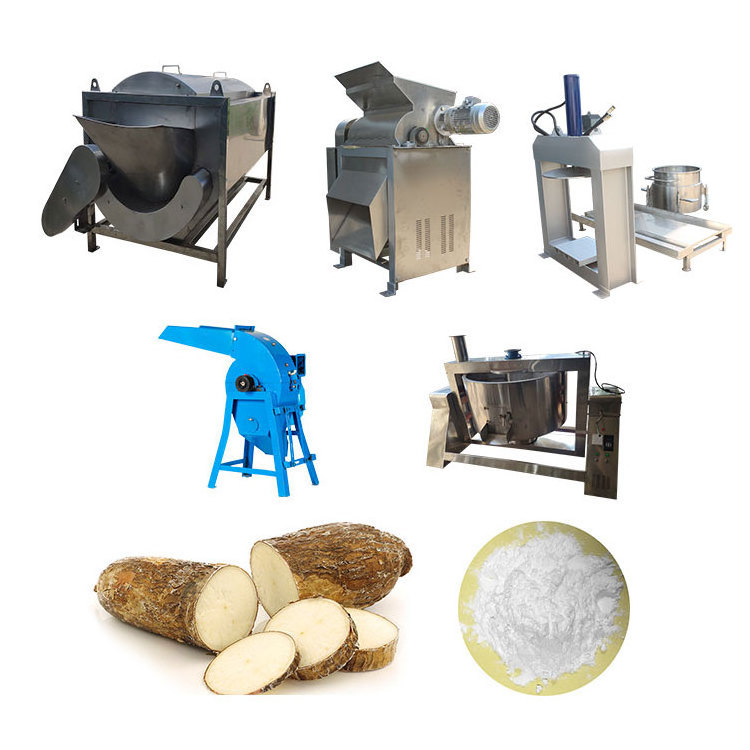

A complete garri production line requires a total of seven machines: a
cassava cleaning and peeling machine, a machine for crushing cassava into pulp and slag, a machine for hydraulic dewatering of cassava residue, a machine for cassava grinding into powder, a
fryer
, and a fine sieve. The garri powder machine, the last one is the packaging machine.
In this production line, the packaging machine is reduced, and the customer can sell the ground powder directly or manually into a bag.
The machine equipped with this small garri production line is a necessary machine for the production line. If the customer's required output is relatively small, the screening machine can use manual sieving. If the fineness of the garri powder is not very high, then it can be used. Screening machine.
This simple garri production line is mainly suitable for individuals. The cassava cleaning and peeling machine can be purchased or replaced by manual. In total, only three machines, such as crushing, dewatering machine and grinding, can be used.
Introduction of cassava washing and peeling machine
Our cassava cleaning and peeling machine is made of all stainless steel, and the peeling is clean and thorough, and the peeling rate can reach over 95%.
Parameters of cassava peeling and washing machine
|
Model |
Capacity(t/h) |
Power(kw) |
Dimension (mm) |
Weight(kg) |
|
TZWP-40 |
0.5-1 |
3 |
3250*1050*1100 |
1200 |
|
TZWP-60 |
1-2 |
5.5 |
4250*1050*1100 |
2000 |
|
TZWP-80 |
3-4 |
7.5 |
5250*1050*1100 |
3000 |
Parameters of cassava hydraulic dehydrator
|
Model |
Capacity(kg/h) |
Diameter(mm) |
Power(kw) |
Pressure(MPa) |
|
DY-500 |
500-1000 |
500 |
3.0 |
≤20 |
Parameters of garri frying machine
|
Model |
Diameter (mm) |
Depth(mm) |
S tirring Power(kw) |
Capacity (kg/h) |
|
GF-300 |
1000 |
390 |
1.5 |
40 |
|
GF-400 |
1000 |
420 |
1.5 |
60 |
|
GF-500 |
1000 |
450 |
1.5 |
100 |
|
GF-600 |
1000 |
450 |
3 |
150 |
A
1. About the machine and service?
If you have any problems after receiving the machine or during use (machine installation, use method, replacement parts, how to maintain, precautions, etc.), please feel free to contact me, we will provide the best solution. 24 hours online service to solve any problem. Your satisfy is our pursuit. Sincerely hope our cooperation .
2. If we have problems when using this machine , what should we do?
If you have any problem, just contact us, we will help you to solve it, and if necessary, we will arrange our engineers to help you in your country.
3. Does your company accept customization?
We have excellent design team,and we can accept OEM.
4. How to identify 304 stainless steel and 201 stainless steel?
Once you buy our machine, we will give you a stainless steel identification solution to meet your requirements.
5 . Can you guarantee your quality?
Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
