Quick Details
-
Brand Name:
-
Sunrise Machinery
-
Weight:
-
430kgs
-
Dimension(L*W*H):
-
1500*700*1300mm
-
Certification:
-
ISO, CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product:
-
individual straw
-
straw:
-
paper straw
-
wrapping material:
-
paper or bopp film
-
sealing type:
-
3 sides sealing
-
print color:
-
1 or 2 colors
-
blades:
-
alloy steel
-
production time:
-
30 days
-
guarantee:
-
one year
Quick Details
-
Voltage:
-
220v-440v
-
Power:
-
0.75kw
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Sunrise Machinery
-
Weight:
-
430kgs
-
Dimension(L*W*H):
-
1500*700*1300mm
-
Certification:
-
ISO, CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
product:
-
individual straw
-
straw:
-
paper straw
-
wrapping material:
-
paper or bopp film
-
sealing type:
-
3 sides sealing
-
print color:
-
1 or 2 colors
-
blades:
-
alloy steel
-
production time:
-
30 days
-
guarantee:
-
one year

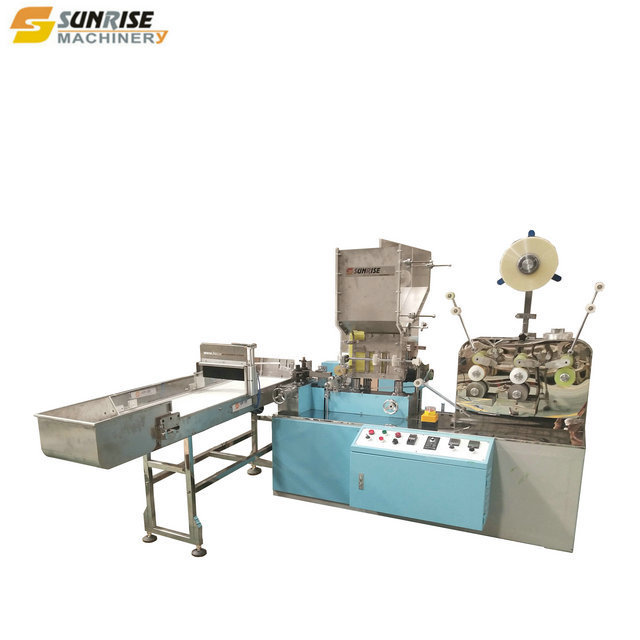

Drinking Straw Paper Wrapping Machine
Straw packing machine (single pcs ) LG-51Y series is an automatic straw packing machine, suitable for packing the straight straw and flexible straw. Wrapping material can be paper or bopp film.
2 . Characteristics:
1-Single pcs straw feeding, printing, filling, packing, cutting finished at once.
2-If the raw material is paper, it can printing 1 colour,2 colour on the wrapping paper.
3-Automatic counting, and batch alarm.
4-The packing speed can be adjustment
5-The breaker ,AC contactor and knob switch brand is SCHNEIDER
6-The inverter brand is DELTA
|
motor |
0.75kw(speed controled by inverter) |
|
Capacity |
paper/ film pack without print: 700-830pcs/min
|
|
Sealing type |
Three sides sealing |
|
Printing colors
|
1-2colors (For paper only)
|
|
Specification of straw |
Outer diameter:φ4-φ12mm |
|
Length:150-265mm |
|
|
The specification can be customized |
|
|
Dimension |
2040*1250*1470mm |
Stainless Steel cover Electric control box
sealing parts :
conveyor belt :
Samples:
some parts for reference :
After the machine finished ,we will note the cutstomers the testing day ,send the video and pictures to confirm ,if all ok ,we will arrange the shippment .but if you have any change , please tell us in advance!!
Confirmed all .We will pack the each quip as the loading quantity by the shrinking film .the parts all packed by wooden case or boxes . you can see the shipping loading pictures in container .in each step we all done very well to avoid any demage when arrived the destination port .
