- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
45*12*6.5M
-
Year:
-
2023
-
Power (kW):
-
200 kW
-
Weight (KG):
-
30000 KG
-
Name:
-
tire recycling machine
-
Raw material:
-
less than 1200 mm radial steel tire
-
Machine Type:
-
Automatic
-
Capacity:
-
1000kg/h
-
Certification:
-
CE,ISO
-
Output size:
-
20 -100 mesh rubber powder
-
Function:
-
recycling waste tire to make rubber powders
-
Color:
-
Customers' Demand
-
Usage of rubber powders:
-
making rubber tiles
-
Application:
-
tire recycling rubber powder machine
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sumac
-
Voltage:
-
Customer Request
-
Dimension(L*W*H):
-
45*12*6.5M
-
Year:
-
2023
-
Power (kW):
-
200 kW
-
Weight (KG):
-
30000 KG
-
Name:
-
tire recycling machine
-
Raw material:
-
less than 1200 mm radial steel tire
-
Machine Type:
-
Automatic
-
Capacity:
-
1000kg/h
-
Certification:
-
CE,ISO
-
Output size:
-
20 -100 mesh rubber powder
-
Function:
-
recycling waste tire to make rubber powders
-
Color:
-
Customers' Demand
-
Usage of rubber powders:
-
making rubber tiles
-
Application:
-
tire recycling rubber powder machine
Recycled Rubber Tile Tyre Powder Making Machinery Production Line Rubber Tire Recycling Machine
Products Description
Introduction

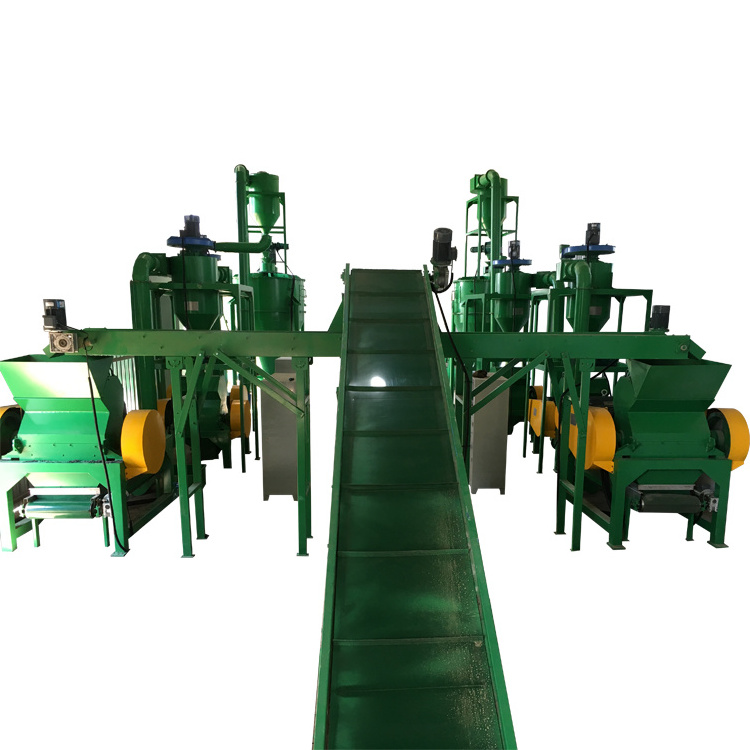

Tire recycling machine is used to recycling the whole waste tire to final 1-5mm rubber granules. We will crush the whole tires, separate the steel,and nylon fiber from the rubber.
Environmental protection and energy saving, Market Prospect Broadness.
The rubber granules can be used to produce many rubber products, such as reclaim rubber sheet, rubber tile, playground, etc. Good reputation and best technology service.
Flow Chart
Main tire recycling machine of the plant
LS-1200 Double Hook Tire Debeader
Use: The tire debeader is used to remove the steel wire ring of the waste tire.
|
Model
|
LS-1200
|
|
Capacity(pc/h)
|
20-40
|
|
The outer diameter (mm)
|
<=1200
|
|
Power(Kw)
|
11
|
|
Pulling Force(T)
|
13
|
|
Weight(Kg)
|
1400
|
|
Dimension(mm)
|
3000x800x1000
|
ZPS-1200 Tire Shredder
Use: Shred the waste tire to 50x50mm tire shreds
|
Model
|
ZPS-1200
|
|
Capacity
|
2000-4000Kg/h
|
|
Outer diameter
|
<=1200
mm
|
|
Power
|
90Kw
|
|
Output size
|
50x50mm
|
|
Weight
|
18T
|
|
Dimension
|
4100x3100x3500mm
|
PSJ-900 Rubber rotating crusher
Use: Shredding the tire shreds to 8-12mm rubber granules
|
Model
|
PSJ-900
|
|
Capacity
|
1000-1500Kg/h
|
|
Input size
|
50x50mm tire blocks
|
|
Power
|
58Kw
|
|
Output size
|
8-12mm
|
|
Movable Knives
|
54pcs
|
|
Fixed Knives
|
6pcs
|
|
Weight
|
4500Kg
|
|
Dimension
|
2000x1550x2406mm
|
CSJ-600/800 Rubber Crusher
Use: Crush the 8-12mm rubber granules to 1-4mm
|
Model
|
CSJ-600/800
|
|
Capacity
|
300-400/500-800Kg/h
|
|
Input size
|
8-12
mm
|
|
Power
|
30/37Kw
|
|
Output size
|
1-4mm
|
|
Weight
|
1200/1600Kg
|
|
Dimension
|
1650x1360x1500mm/ 1750x1640x1900mm
|
XFJ-1100 Fiber Separator
Use: Separate the fibers from the rubber granules
|
Model
|
XFJ-1100
|
|
Capacity
|
300-500Kg/h
|
|
Number of lamina
|
8 piece
|
|
Rotate speed of main axis
|
400r/min
|
|
Motor power
|
4Kw
|
|
Weight
|
1500Kg
|
|
Dimension
|
1600x1600x4500mm
|
Advantages of tire recycling machine
Iron/steel removing ratio>99.5%, fiber removing ratio>98%;
Compact structure ensure running safety, easy maintenance;
Low energy consumption;
Adopt automatic control system for whole line, reduce labor cost;
No sewage and waste gas discharge, environment protection;
Available capacity range of our tire recycling lines at present: 500~4000kg/h;
Available finial rubber granules size: 1-5mm;
Adopts SIEMENS and Chinese famous brand electrical elements.
1. Are you a manufacturer, trading company or a third party?
We are a manufacturer, and we have builded up our company since 2011.
2. Where is your factory located?
Our factory address is : No.165 Yungu Road Zhutang Town Jiangyin City, Jiangsu Province, China.
3. How can i get to your factory?
Our factory is near shanghai Airport, we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
6. Which level of quality are your products?
We have got CE, ISO, SGS, TUV so far.
7. What is the delivery time of your machine?
In general, the delivery time of our machine is about 60 working days, customized machine will be delivered as the negotiation with our clients.
8. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
9. As the shipping period will take long time, how can you make sure the machine won’t be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
10. May i know which payment will be accepted by your company?
30% to be paid by T/T in advance, balance to be paid by T/T against testing video before shipment.
11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
12. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.
We are a manufacturer, and we have builded up our company since 2011.
2. Where is your factory located?
Our factory address is : No.165 Yungu Road Zhutang Town Jiangyin City, Jiangsu Province, China.
3. How can i get to your factory?
Our factory is near shanghai Airport, we can pick you up in the airport.
4. If i will need to stay in your place for few days, is that possible to book the hotel for me?
It’s always my pleasure, hotel booking service is available.
5. What is your minimum order quantity, can you send me samples?
Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog, warmly welcome you to come visit our company.
6. Which level of quality are your products?
We have got CE, ISO, SGS, TUV so far.
7. What is the delivery time of your machine?
In general, the delivery time of our machine is about 60 working days, customized machine will be delivered as the negotiation with our clients.
8. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
9. As the shipping period will take long time, how can you make sure the machine won’t be broken?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
10. May i know which payment will be accepted by your company?
30% to be paid by T/T in advance, balance to be paid by T/T against testing video before shipment.
11. About the after-sale service, how can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally 12 months, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
12. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.
