Quick Details
-
Application:
-
Villa
-
Type:
-
Ac Motor Dual Arms Kit
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-07
-
Motor:
-
AC220V
-
Power supply:
-
220V/50Hz
-
Current:
-
1.5A
-
Motor speed:
-
1450RPM/min
-
Protect Class:
-
IP54
-
Max.Weight of each gate:
-
500 kgs
-
Max.Width of each gate:
-
4m
-
Thrust:
-
3000N
-
Name:
-
Automatic Door Operators 07 model
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
NONE
-
Application:
-
Villa
-
Type:
-
Ac Motor Dual Arms Kit
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CHISUNG
-
Model Number:
-
CSSGO-07
-
Motor:
-
AC220V
-
Power supply:
-
220V/50Hz
-
Current:
-
1.5A
-
Motor speed:
-
1450RPM/min
-
Protect Class:
-
IP54
-
Max.Weight of each gate:
-
500 kgs
-
Max.Width of each gate:
-
4m
-
Thrust:
-
3000N
-
Name:
-
Automatic Door Operators 07 model
Heavy Duty Electric Automatic Swing Linear Actuator Gate Opener With Control Board
Product Description
Technical specifications
| Power Supply | 230VAC/50Hz |
| Electric motor | 220V |
| Absorbeb Power | 220W |
| Current | 1.5A |
| Motor speed | 1450RPM/min |
| Thrust | 3000N |
| Travel | 12s |
| Proetection Class | IP45 |
| Temperature | -20 degree to 50 degree |
| Max Weight | 500KG |
| Max Width | 4m |

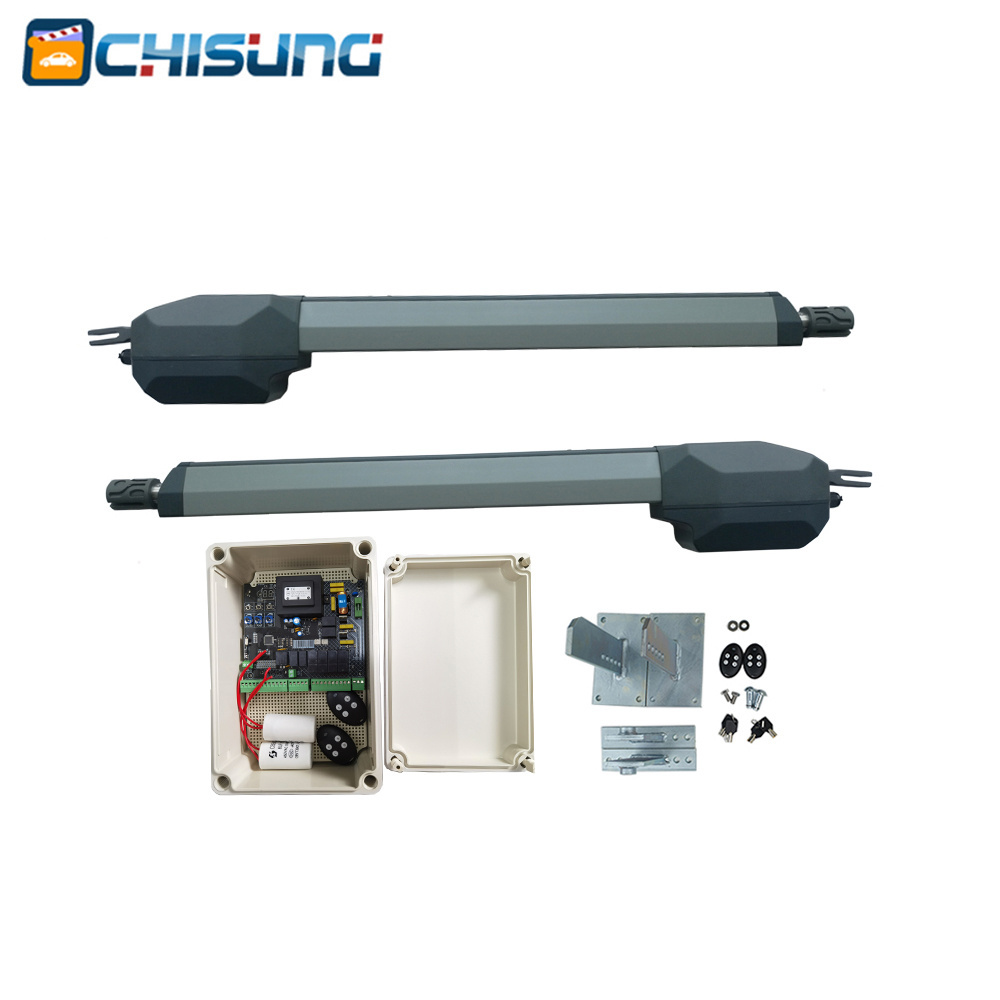

| Each kit includes |
2 motors
1 control panel(board+box) 2 remote control 1 user manual and mounting brackets (This model has the limit switch ) |
| Arms Color | Grey,Black Optional |
| Features | Strong, wind and rain resistant |
Product display
DESCRIPTION
1)Optional Multi-model
07 is based on improvement from 06 , suitable for more wide doors. Divided into com-mon type and lengthened , available in different widths sit flat on the courtyard,
in addition the appearance of color can choose gray ,red base on preferences and other products with a release device ,easy to use , suitable for small or medium width door,
the biggest single door up to five meters wide, can be used for heavy doors 500KGS.
2)
Safe to use,Hight reliablity
Anti-extrusion electronic security protection is installedd in the electronic sensing means to ensure the control panel directly driving torque control operation in case of emergency manual operation of the door to release the key .
3)Low noise,Easy to use
Mechanical strusture electronic security protection is installed in the electronic sensing means to ensure the control panel directly driving torque control operation is case of emergency manual operation of the door to release the key .
