Quick Details
-
Product name:
-
50M HDMI KVM+IR Extender
-
Input:
-
Transmitter: 1* HDMI Type A Receiver: 1* RJ45, 1* AUX , 2* USB Type A
-
Resolution:
-
1920*1080@60Hz ( For 60M UTP cable)
-
Output:
-
Transmitter: 1* RJ45, 1* USB Type B, 1* AUX,Receiver: 1* HDMI Type A
-
Data rate:
-
10.2 Gbps
-
Material:
-
Aluminum Alloy
-
Power supply:
-
DC 5V 1A
-
Keyword:
-
HDMI Extender
-
transmission distance:
-
50M
Quick Details
-
Model Number:
-
HKE0511A10
-
Brand Name:
-
TESmart
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
50M HDMI KVM+IR Extender
-
Input:
-
Transmitter: 1* HDMI Type A Receiver: 1* RJ45, 1* AUX , 2* USB Type A
-
Resolution:
-
1920*1080@60Hz ( For 60M UTP cable)
-
Output:
-
Transmitter: 1* RJ45, 1* USB Type B, 1* AUX,Receiver: 1* HDMI Type A
-
Data rate:
-
10.2 Gbps
-
Material:
-
Aluminum Alloy
-
Power supply:
-
DC 5V 1A
-
Keyword:
-
HDMI Extender
-
transmission distance:
-
50M
Features

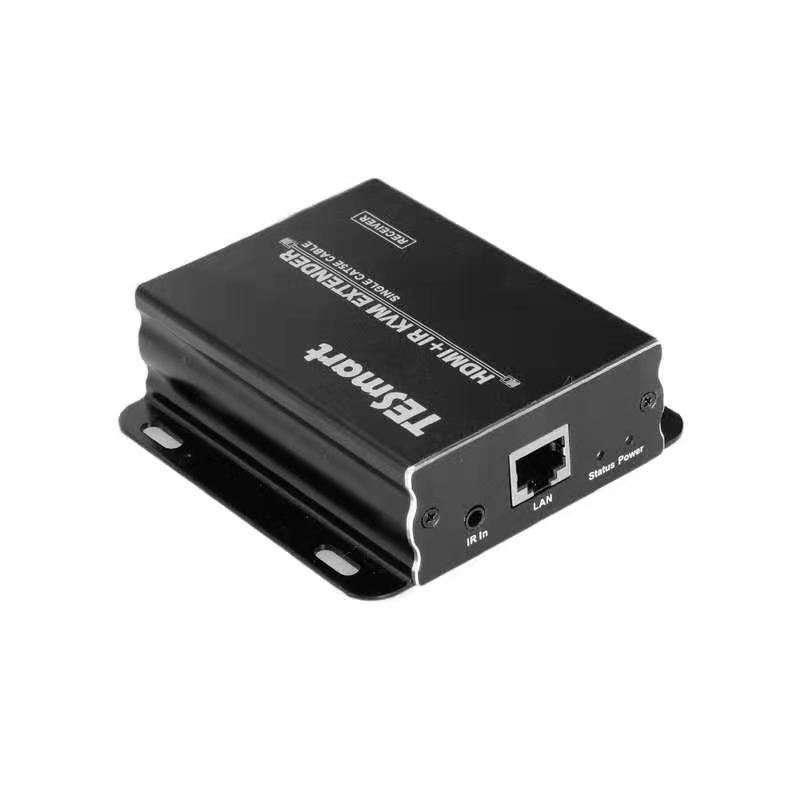

50M HDMI KVM+IR Extender
# HKE0511A10
HDMI KVM Extender with IR pass though, uses single UTP LAN cable CAT5e/6 to substitute HDMI cable to achieve longer transmission distance, The transmission distance extend up to 50 meters for 1920*1080@60Hz.
●
Resolution up to 1920*1080@60Hz (For 50M UTP)
●
Support
USB2.0 function
●
Support EDID pass through via LAN, for best compliance with most display devices
●
Support IR signal pass through via LAN
●
By transmitting keyboard and mouse data via LAN, it is easy to control PC remotely
●
By
transmission distance up to 50m via CAT 5e/6.
Specification
|
HKE0511A10
|
50M HDMI KVM+IR Extender
|
|
||
|
Technical
|
|
|
||
|
Data rate
|
10.2 Gbps
|
|
||
|
Max. Resolution
|
1920*1080@60Hz ( For 50M UTP cable)
|
|
||
|
ESD protection
|
Human body model - ±8kV (Air-gap discharge)
|
|
||
|
Input
|
Transmitter: 1* HDMI Type A
Receiver: 1* RJ45, 1* AUX (For IR in), 2* USB Type A (Keyboard & mouse) |
|
||
|
Transmitter: 1* HDMI Type A
Receiver: 1* RJ45, 1* AUX (For IR in), 2* USB Type A (Keyboard & mouse) |
|
|
||
|
Output
|
Transmitter: 1* RJ45, 1* USB Type B, 1* AUX(for IR out)
Receiver: 1* HDMI Type A |
|
||
|
Mechanical
|
|
|
||
|
Material
|
Aluminum Alloy
|
|
||
|
Power supply
|
DC 5V
|
|
||
|
Operating/Storage temperature
|
0 to 70 degree/-40 to 85 degree
|
|
||
|
Operating Humidity
|
10 to 90% RH
|
|
||
|
Product
|
Dimension
|
RX:93(L) x 90(W) x 29(H)mm
TX:93(L) x 90(W) x 29(H)mm |
||
|
|
Weight
|
RX:143.4g
TX:142.5g |
||
