Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SGOCONN
-
Model Number:
-
SGD-BM-05-050P-10-G1-1
-
Certification:
-
ISO 9001, RoHS
-
Temperature Range:
-
-45℃~85℃
-
Pins:
-
50P
-
Pitch:
-
0.5MM
Quick Details
-

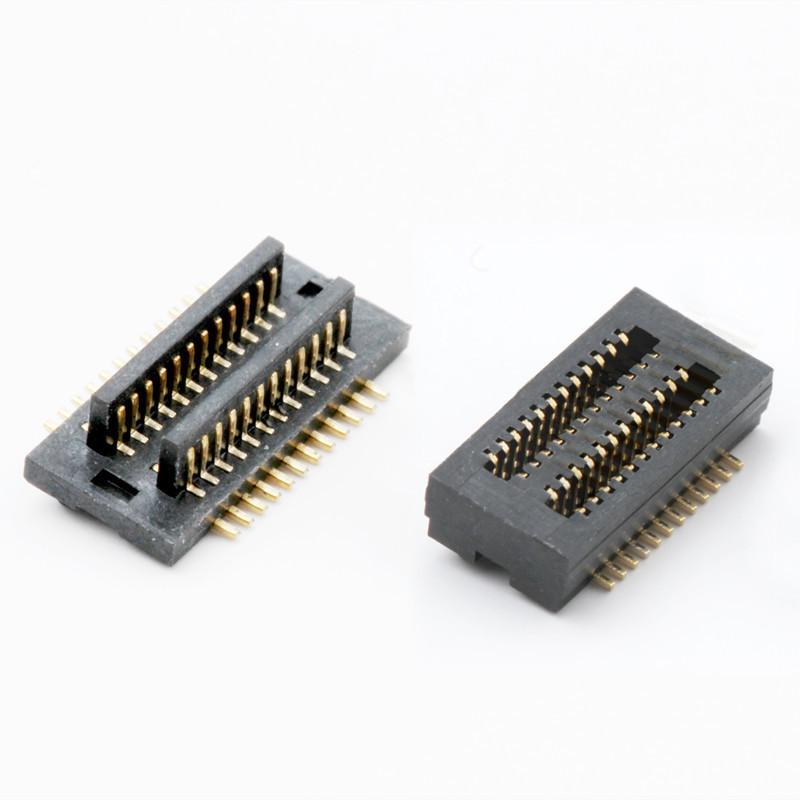

Type:
-
Board To Board connector
-
Application:
-
PCB
-
Gender:
-
Male
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SGOCONN
-
Model Number:
-
SGD-BM-05-050P-10-G1-1
-
Certification:
-
ISO 9001, RoHS
-
Temperature Range:
-
-45℃~85℃
-
Pins:
-
50P
-
Pitch:
-
0.5MM
Product Description
Specification
|
Vlotag Rating:
|
50V AC(rms)/DC
|
|
Current Rating:
|
0.5A AC(rms)/DC
|
|
Contact Resistance:
|
50mΩ Max
|
|
Insulation Resistance:
|
100MΩ min
|
|
Dlelectric Withstanding Voltage:
|
200V AC r.m.s
|
|
Contact:
|
Phosphor Bronae,Gold Plating
|
|
Soldering Temperature:
|
+260℃
|
|
Operting Temperature:
|
-40℃~+85℃
|
