Quick Details
-
EINECS No.:
-
215-154-6
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCT
-
Model Number:
-
QF-1000L
-
Type:
-
Liquid Glue
-
Vacuum, heating, cooling:
-
-0.096MPa, 0~ 250 °
-
Machine Type:
-
Mixer
-
Product Type:
-
adhesive
-
Up cover method:
-
up cover method
-
Heating method:
-
agitation heating
-
Agitation heating:
-
380V
-
Touch material:
-
ss304
-
Accessories:
-
accessories
-
Material:
-
stainless steel
-
Package:
-
wooden package
Quick Details
-
CAS No.:
-
8030-30-6
-
Other Names:
-
HMPSA
-
MF:
-
Mixture
-
EINECS No.:
-
215-154-6
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCT
-
Model Number:
-
QF-1000L
-
Type:
-
Liquid Glue
-
Vacuum, heating, cooling:
-
-0.096MPa, 0~ 250 °
-
Machine Type:
-
Mixer
-
Product Type:
-
adhesive
-
Up cover method:
-
up cover method
-
Heating method:
-
agitation heating
-
Agitation heating:
-
380V
-
Touch material:
-
ss304
-
Accessories:
-
accessories
-
Material:
-
stainless steel
-
Package:
-
wooden package
JCT contact adhesive neoprene glue making machine
1. Introduction of JCT contact adhesive neoprene glue making machine
Dispersion Machine is a powerful and efficient multi-function mixer. It can meet the requirements o users operating in rapidly changing operating process to meet the high and low viscosity material mixing machines can be customized according to customer requirements.
1) Operation
Strong disperser kettle has three to four different types of mixers.
One in the kettle body runs around the axis, the other two rotate around its own axis in the different high speed.
Material in the kettle crshes intricately and strongly sheared and rubbed.
Yamagata blade in the tank runs around the axis, can scrape the material glued to the wall and bottom to join into the mixing
Kettle has special seal structure to vacuum, so that the exhaust can be well expelled
2) Discharge
Pressure fed, cover lifts by hydraulic, and cylinder is free to move
3) Suit for industries
Adhesives: DOW Corning sealant, Silicone sealant, color sealant
Rubber: Silicone Rubber, RTV rubber, etc.
4) Widely used
Adhesives , cosmetics, chemical products, batteries, food, plastics industries and etc.
2. Technical Parameter of JCT contact adhesive neoprene glue making machine
Example: QF-100L
QF means the Planetary mixer series, 100L means te design volume is 100 liter, 0.1 tons.
The effect volume is about 60%~80% of the design volume.
| type | full volume | loading volume | lower speed (kw) | high speed (kw) | lower speed (rpm) | high speed (rpm) |
| QF-5 | 5 | 3 | 0.75 | 0.75*2 | 27 | 0-1500 |
| QF-20 | 20 | 12 | 1.1 | 1.1-1.5*2 | 27 | 0-1500 |
| QF - 50 | 50 | 30 | 1.5-3 | 2.2-4*2 | 27 | 0-1500 |
| QF -100 | 100 | 60 | 2.2-4 | 4-5.5*2 | 27 | 0-1500 |
| QF-200 | 200 | 120 | 3-5.5 | 5.5-11*2 | 27 | 0-1500 |
| QF -300 | 300 | 180 | 5.5 - 11 | 7.5-15*2 | 27 | 0-1500 |
| QF-500 | 500 | 300 | 7.5-15 | 15-22*2 | 27 | 0-1500 |
| QF - 1000 | 1000 | 600 | 15-22 | 22-37*2 | 23 | 0-1500 |
| QF-1500 | 1500 | 900 | 18.5-22 | 30-37*2 | 23 | 0-1500 |
| QF-2000 | 2000 | 1200 | 18.5-30 | 30-45*2 | 23 | 0-1000 |
| QF-3000 | 3000 | 1800 | 30-37 | 37-55*2 | 23 | 0-1000 |
| QF-4000 | 4000 | 2400 | 37-45 | 45-55*2 | 23 | 0-1000 |
Character:
1.The Planetary mixer is a good choices, which designed for mixing, vulcanization, nitration, sulfonation,
hydrogenation, dehydration in viscous fluid.
2.There are 3 blades and 1 automatic scraper blade. Each paddle rotate on its own axis, the same time the
3 blades make planetary motion(revolution) on the center axis of the machine.
3.The planetary mixer will use thickness board to board so as to resistant the vacuum & heating.

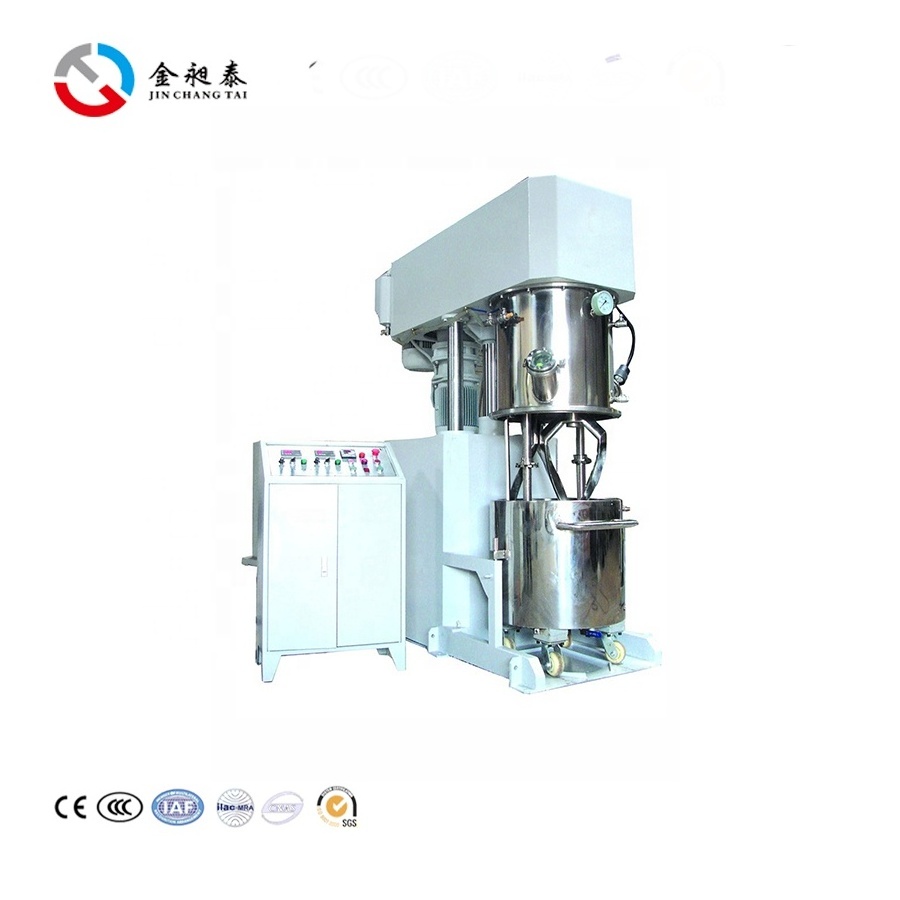

3. Pictures of JCT contact adhesive neoprene glue making machine
