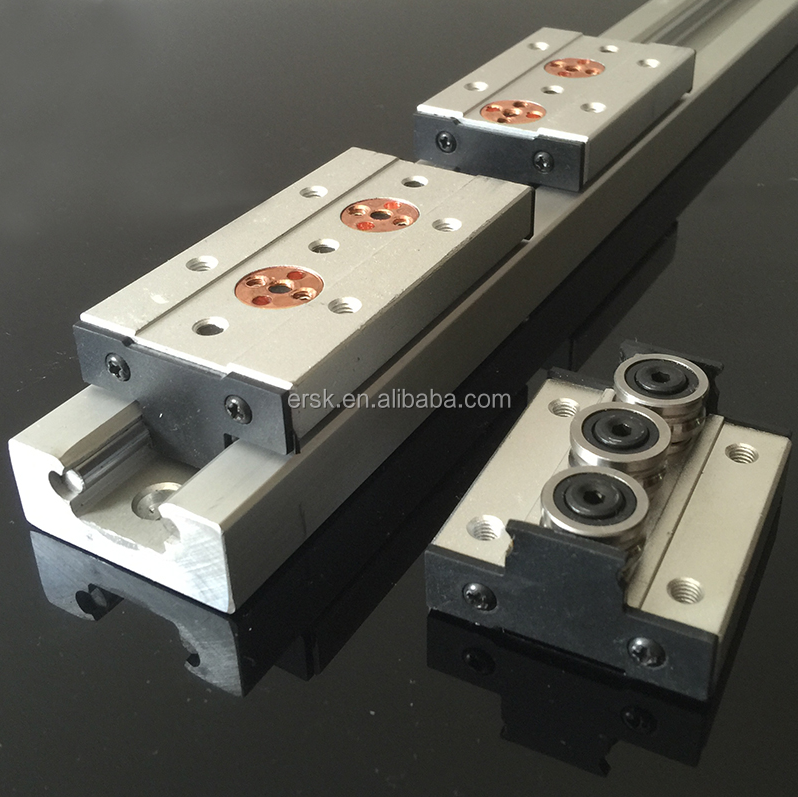

Heavy Duty Linear Guide Rails With Guide Block SGR15-3UU

SGR Double-Axis Guide Rail Advantages

1. Adjustable pressure: "zero" interval standard

2. Lower sensitive style of dust

3. Grind surface to install rail

4.We can change the length of round linear guide according to your requirements.

5. Quality quarante for accuracy and repetition

6.Guide rail or slide board and wheel can added according to the needs of customers

7. Higher speed noise volume

8. Higher speed target

Material : basically made of high quality aluminum alloy with oxidation treatment on surface, the optical axis is with chrome plated treatment on surface.

Built-in Double Axis Linear Guideway Model NO.As Below:

(1) SGR10    SGB10-3UU

(2) SGR15    SGB15-3UU / SGB15-4UU / SGB15-5UU

(3) SGR15N  SGB15N-3UU / SGB15N-4UU / SGB15N-5UU

(4) SGR20     SGB20-3UU / SGB20-4UU / SGB20-5UU

(5) SGR20N   SGB20N-3UU / SGB20N-4UU / SGB20N-5UU

(6) SGR25     SGB25-3UU / SGB25-4UU / SGB25-5UU

(7) SGR35     SGB35-3UU / SGB35-4UU / SGB35-5UU

External Double Axis Linear Guideway Model NO.As Below:

(1) LGD6      LGB6-60L-4UU

(2) LGD8      LGB8-70L-4UU / LGB8-100L-4UU

(3) LGD12    LGB12-60L-2UU / LGB12-100L-4UU / LGB12-100L-6UU / LGB12-140L-4UU /

LGB12-140L-6UU / LGB12-160L-8UU

(4) LGD16    LGB16-150L-4UU / LGB16-150L-6UU / LGB16-180L-4UU / LGB16-180L-6UU
