Product name:
-
Digital catv ip qam modulator with scrambler
-
Input:
-
UDP RTP SPTS MPTS
-
input interface:
-
2GE(RJ45)
-
MUX scrambling:
-
16 frequencies
-
Modulation QAM Channel:
-
16 frequencies
-
RF Output:
-
16 in 1 dvb-c rf out
-
Application:
-
Digital cable tv headend system
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Colable
-
Model Number:
-
COL5416
-
Product name:
-
Digital catv ip qam modulator with scrambler
-
Input:
-
UDP RTP SPTS MPTS
-
input interface:
-
2GE(RJ45)
-
MUX scrambling:
-
16 frequencies
-
Modulation QAM Channel:
-
16 frequencies
-
RF Output:
-
16 in 1 dvb-c rf out
-
Application:
-
Digital cable tv headend system

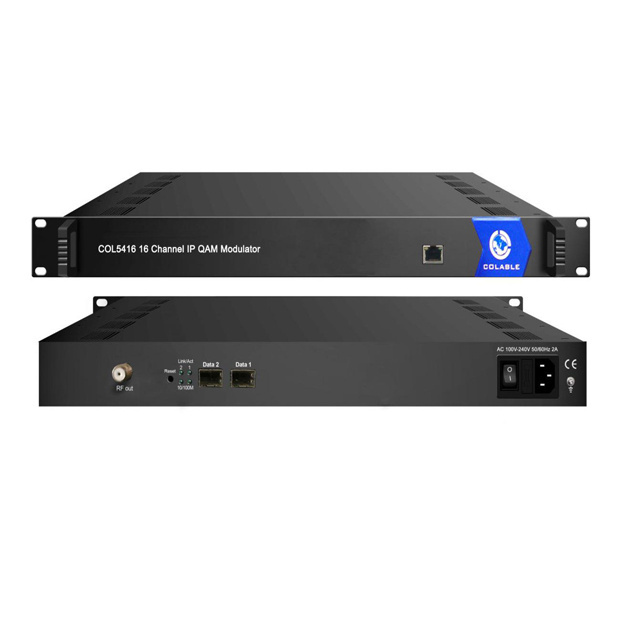

Digital cable tv system IP Qam modulator 16ch COL5416
Outline
COL5416 IP Mux-Scrambling modulator is our latest generational Mux & scrambling and modulating all-in-one device. It has 16 multiplexing channels, 16 scrambling channels and 16 QAM (DVB-C) modulating channels, and supports maximum 1024 IP input through the GE port and 16 non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The device is also characterized with high integrated level, high performance and low cost. This is very adaptable to newly generation CATV broadcasting system.
Features
ü 2 GE input, SFP interface
ü Supports up to 1024 channels TS over UDP/RTP, unicast and multicast, IGMP v2v3
ü Max 840Mbps for each GE input
ü Supports accurate PCR adjusting
ü Supports CA PID filtering, remapping and PSI/SI editing
ü Supports up to 180 PIDS remapping per channel
ü Support DVB general scrambling system (ETR289), simulcrypt standards ETSI 101 197 and ETSI 103 197
ü Support 16 multiplexed or scrambled TS over UDP/RTP/RTSP output
ü 16 non-adjacent QAM carriers output, compliant to DVB-C (EN 300 429) and ITU-T J.83 A/B
ü Supports RS (204,188) encoding
ü Support Web-based Network management
Inner Principle Chart
Specifications
|
Input |
Input |
512×2 IP input, 2 100/1000M Ethernet Port |
|
Transport Protocol |
TS over UDP/RTP/RTSP, unicast and multicast, IGMP V2/V3 |
|
|
Transmission Code |
Max 840Mbps for each GE input |
|
|
Mux |
Input Channel |
1024 |
|
Output Channel |
16 |
|
|
Max PIDs |
180 per channel |
|
|
Functions |
PID remapping(auto/manually optional) |
|
|
PCR accurate adjusting |
||
|
PSI/SI table automatically generating |
||
|
Scrambling Parameters |
Max simulscrypt CA |
4 |
|
Scramble Standard |
ETR289, ETSI 101 197, ETSI 103 197 |
|
|
Connection |
Local/remote connection |
|
|
Modulation Parameters |
QAM Channel |
16 non-adjacent carrier |
|
Modulation Standard |
EN300 429/ITU-T J.83A/B/C |
|
|
Symbol Rate |
5.0~7.0Msps, 1ksps stepping |
|
|
Constellation |
16, 32, 64 , 128, 256QAM |
|
|
FEC |
RS (204, 188) |
|
|
RF Output |
Interface |
1 F typed output port for 16 carriers, 75Ω impedance |
|
RF Range |
50~960MHz, 1kHz stepping |
|
|
Output Level |
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping |
|
|
MER |
≥ 40dB |
|
|
ACLR |
-60 dBc |
|
|
TS output |
16 IP output over UDP/RTP/RTSP, unicast/multicast, 2 100/1000M Ethernet Ports |
|
|
System |
Network management software (NMS) supporting |
|
|
General |
Demission |
420mm×440mm×44.5mm (WxLxH) |
|
Weight |
3kg |
|
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
|
Power Supply |
AC 100V±10%, 50/60Hz or AC 220V±10%, 50/60Hz |
|
|
Consumption |
15.4W |
|
