Quick Details
-
Dimension(L*W*H):
-
300*3450*2460mm
-
Weight (KG):
-
1500
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Travel of X-axis:
-
800mm
-
Travel of Y-axis:
-
630mm
-
Travel of U-axis:
-
±75
-
Travel of V-axis:
-
±75
-
Travel of Z-axis:
-
350mm
-
Work Table Size:
-
1070*825mm
-
Max. cutting thickness:
-
260mm
-
Max. workpiece size:
-
1460*1100*350mm
-
Surface Roughness:
-
Ra≤0.6
-
Certification:
-
ISO9001,CE
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HITECH
-
Voltage:
-
380V/50Hz
-
Dimension(L*W*H):
-
300*3450*2460mm
-
Weight (KG):
-
1500
-
Warranty:
-
1 Year
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Travel of X-axis:
-
800mm
-
Travel of Y-axis:
-
630mm
-
Travel of U-axis:
-
±75
-
Travel of V-axis:
-
±75
-
Travel of Z-axis:
-
350mm
-
Work Table Size:
-
1070*825mm
-
Max. cutting thickness:
-
260mm
-
Max. workpiece size:
-
1460*1100*350mm
-
Surface Roughness:
-
Ra≤0.6
-
Certification:
-
ISO9001,CE
Intro
Electrical discharge machining is a machining method primarily used for hard metals or those that would be very difficult to machine with traditional techniques.
Main Parameters
|
Travel of X-axis
|
800mm
|
|
Travel of Y-axis
|
630mm
|
|
Travel of U-axis
|
±75mm
|
|
Travel of V-axis
|
±75mm
|
|
Travel of Z-axis
|
350mm
|
|
Worktable size(L*W)
|
1070×825mm
|
|
Max. cutting thickness
|
260mm
|
|
Max. workpiece size
|
1460*1100*350mm
|
|
Max. workpiece weight
|
1000kg
|
|
Max. cutting taper
|
±15°/100mm
|
|
Wire electrode moving speed
|
1-12m/min
|
|
Wire electrode diameter range
|
0.15-0.3mm (standard 0.25)
|
|
Cutting accuracy
|
≤±0.005
|
|
Surface roughness
|
Ra≤0.6
|
Illustration

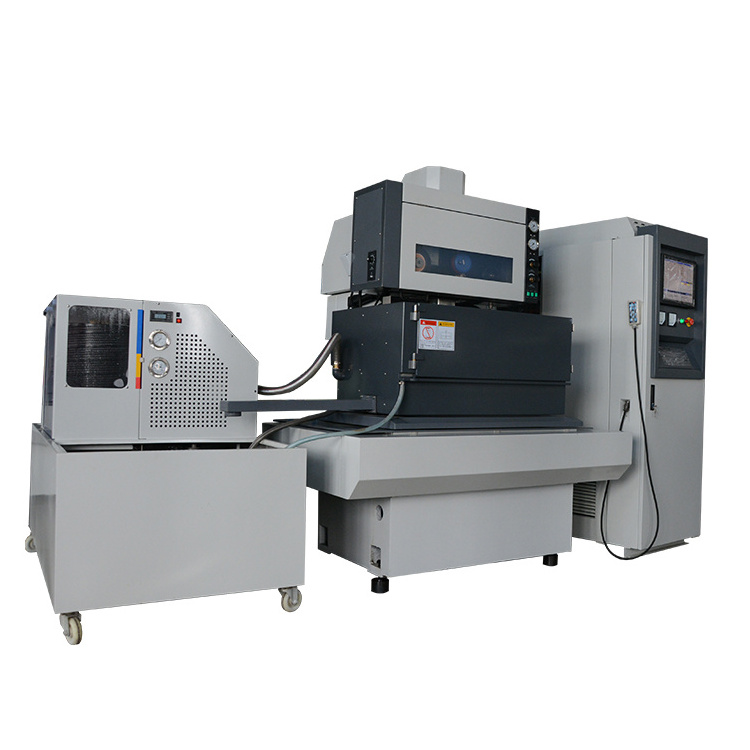

Real photos of our EDM wire cutting machines.
Payment Terms
T/T, L/C, D/A, D/P, also can provide Trade Assurance service.
After Sales Service
One year from the date when goods are shipped from China port. If the machines have any problem during the using process in guarantee period, firstly buyer could ask for help by telephone, fax or email, seller will assist to solve within 48 hours, if the problem still could not be solved, seller could send maintenance staffs to buyer site for free maintenance.
