01.Diameter range:DN50~1000
02.Nominal pressure:normal PN10bar, special PN6, 16bar, air source pressure:3~8bar
03.Valve body material: Grey Cast Iron(code:C), Cast Steel WCB(code:C), SS304( code:B), SS316(code:R)
04.Control mode:QZ11---Single Acting NC
QZ12---Single Acting NO
QZ2---Double Acting Control
QZ114X---Single Acting NC Regulating Type
QZ124X---Single Acting NO Regulating Type
QZ24X---Double Acting Regulating Type
Note: X=1 refers to the regulating type 4 ~ 20mA.DC input and no signal output (normal)
X=2 refers to the regulating type 4 ~ 20mA.DC input and output (special)
05.Special configuration:QZ-Ds---with top mounted handwheel
QZ-◆---with position limit switch(valve position signal output)
06.The flow direction of medium should be consistent with the arrow direction on the valve body
07.Mounted at any angle, keep cylinder vertically upward&installed horizontally which may extend life span
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
QZ-C-DXZ43
-
Brand Name:
-
BEST
-
product name:
-

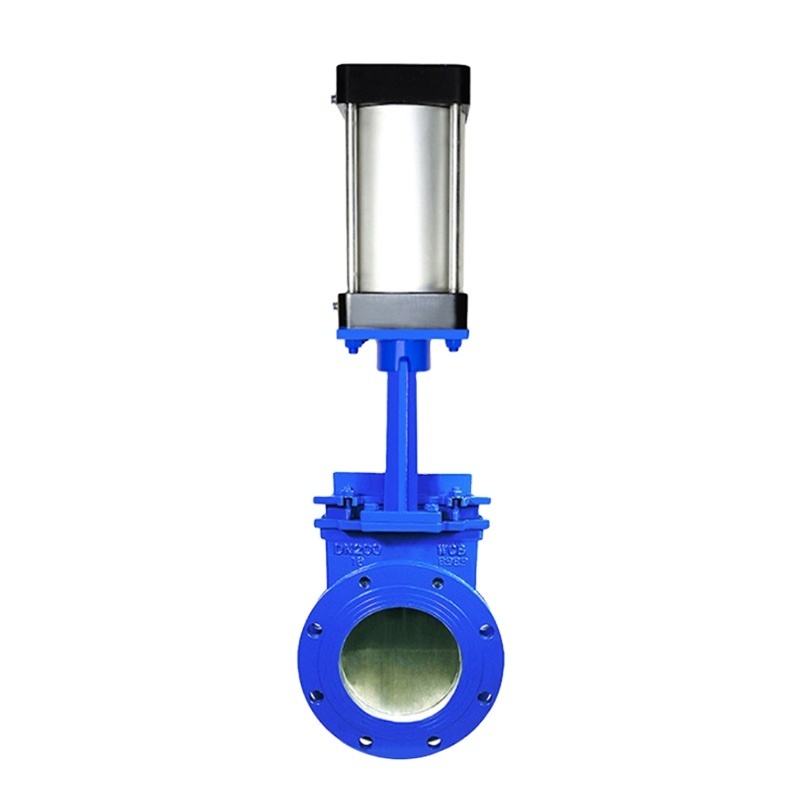

pneumatic rising stem type knife gate valve
-
working pressure:
-
0~16bar
-
air source pressure:
-
0~8bar
-
connection:
-
flange, wafer
-
function:
-
open closed type
-
body material:
-
carbon steel
-
valve position signal:
-
contact or analog signal
-
analog signal:
-
4~20mA.DC,0~10V.DC,1~5V.DC
-
valve stem packing:
-
PTFE ,flexible graphite
-
MOQ:
-
1
Quick Details
-
Port Size:
-
DN50~1000
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
QZ-C-DXZ43
-
Brand Name:
-
BEST
-
product name:
-
pneumatic rising stem type knife gate valve
-
working pressure:
-
0~16bar
-
air source pressure:
-
0~8bar
-
connection:
-
flange, wafer
-
function:
-
open closed type
-
body material:
-
carbon steel
-
valve position signal:
-
contact or analog signal
-
analog signal:
-
4~20mA.DC,0~10V.DC,1~5V.DC
-
valve stem packing:
-
PTFE ,flexible graphite
-
MOQ:
-
1
More Products
|
Manufacturer
|
Item
|
Size
|
Customized support
|
Place of Origin
|
|
BEST
|
pneumatic valve
|
DN50~1000
|
OEM
|
Shanghai,China
|
