Roll Press Heated Laminating Machine Roll To Roll Heat Press Machine 16 Roller Heat Transfer Machine Blanket Manufacturers

Roll Press Heated Laminating Machine Roll To Roll Heat Press Machine 16 Roller Heat Transfer Machine Blanket Manufacturers

FOB Reference Price: Get Latest Price

≥1 Sets

US $12500

≥5 Sets

US $11500

≥10 Sets

US $11000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimensions(L*W*H):: 4500*2460*1200

Weight:: 1400 KG

Name:: Sublimation Calendar Heat press machine

Drum type:: Double layer drum

Heating oil percent:: 100%

Blanket Material:: 100% Nomex blanket

Max process Width:: 1900mm

Speed:: 80-120m/h

Temperature Range:: 0-400 ℃

Noise:: 30 QB

Roll diameter:: 420mm

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Number one

Voltage:: 380V 3 Phase 4 wires

Dimensions(L*W*H):: 4500*2460*1200

Weight:: 1400 KG

Name:: Sublimation Calendar Heat press machine

Drum type:: Double layer drum

Heating oil percent:: 100%

Blanket Material:: 100% Nomex blanket

Max process Width:: 1900mm

Speed:: 80-120m/h

Temperature Range:: 0-400 ℃

Noise:: 30 QB

Roll diameter:: 420mm

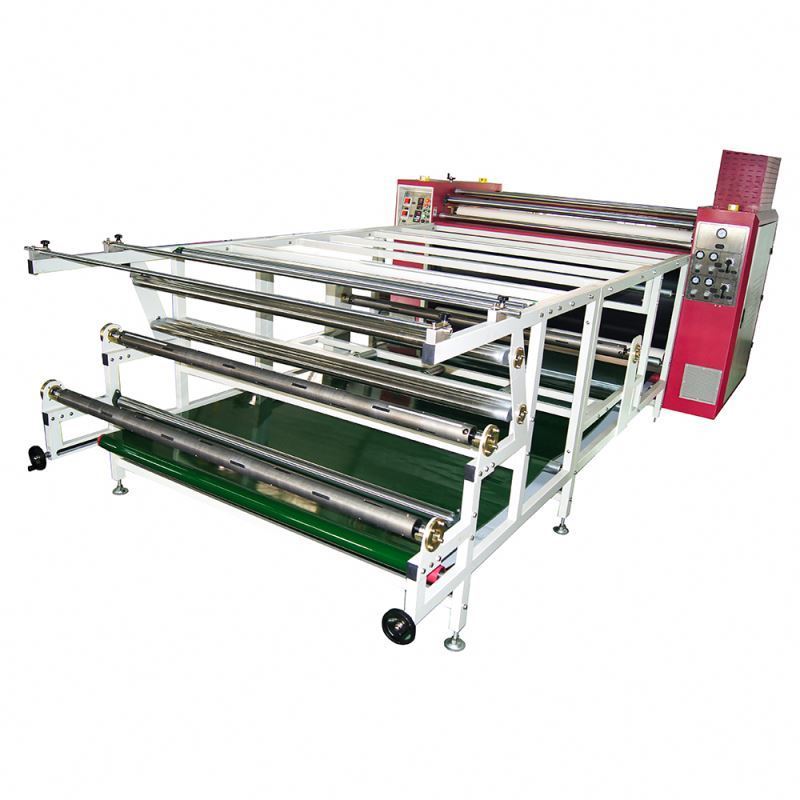

High Performance Large Format Sublimation Calendar Rotary Heat press machine

This is a customized Long work table design sublimation digital printing use FULL oil filled drum roll to roll rotary heat press machine.

Unique Key features:

1. Simple & easy operation long worktable design for fabric and sublimation paper spreading.

2. Well designed wasted sublimation collecting system.

3. Well designed fabric rolls rear collecting design.

4. Excellent sublimation color transfer output. Finished fabrics with bright color.

Left view of machine

Easy setting, easy operation control panel design

Right view of machine

Durable Switch control Pneumatic pressurization design.

Rear view of machine

Well designed finished fabric rolls collecting at machine rear.

Product Description

Product Application

Applicable to all kinds of clothing, home textiles, handbags, umbrellas, straw mats, shoes and hats, crafts, gifts, toys, advertising supplies, hot stamp, heat press machine, calender ans so on.

SPECIFICATIONS FOR ROLLER DIAMATER ZS-BA 420MM
Item	420*1200	420*1700	420*1900
Roll diameter	420mm
Width	1200mm	1700mm	1900mm
Speed	90-120m/h
Power	21.6kw	27kw	27kw
Number of heating elements	18
Voltage	220V/380V
Installation size	380018001200mm	380024001200mm	380027001200mm
Packing size	180012001400mm	240012001400mm	270012001400mm
Worktable Longth	2.5m/3.5m/5.0m
Heat Method	Oil heating

Main Features

1)Oil-heated cylinder with 2 proportional electronic thermostats, one for checking the oil and one
2)for the exterior of the cylinder
3)Safety bar and reverse control
4)Cylinder diameter 37 cm/42cm/48cm/60cm
5)Adjustable belt tension
6)Brushless motor
7)Dynamic electro-pneumatic control of the belt
8)Automatic cylinder cooler timer
9)3 unwinds and rewinds
10)Optional loading table
11)Adjustable speed control
12)The machine requires a compressed air connection
13)Explosion-proof devices and unique recycling waste gas system
14)also can print piece-piece and roll-roll fabric.
15) sublimation fabric heat transfer machine

Detailed Images

Machine Parts

Name: Blanket

Brand: Dupont

Original: Germany

"Dupont" rawmaterials blanket with the thickness of 10mm, It is imported from the United Ststes, which not only has good transfer effects bus also long service life.

Main Features

Name: Cylinder
Brand: China
Original:China
The roller inner/outer circular cylindrical precision machining, Precision grinding machine, Plating washighly Teflon, no color uniform heating drum.

Machine Parts

Name: Heating pipes
Brand:
Original: Taiwan
Imported from Taiwan stainless steel heating pipe and heat transfer oil, because it directly heat oil, the temperature can rise to 200 degree in 45 minutes or so.

Main Features

Name: Collect ring
Brand:
Original:
Carbon brush connects collector ring by the electric conduction directly, which not only has good conductive performance but low maintenance costs, enjoying a long service life.

Printing Process

1.7mts Rotary heat transfer roll type heat press sublimation printing machine

Roll digital textile printing machine.

1. Putting Protecting Paper 2. Collecting Protecting Paper 3.Collecting Transfer Paper 4. Putting Fabric 5.Putting Transfer Paper

Our Service

Packing & Delivery 2

Packaging
Size	2900(L) * 1500(W) * 1600 (D)
Weight	2500KG
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Packing Details:

Heat transfer printing machine packing will be made according to customers’ requirements.
Here is safe packing method as below:
Machine will have PVC bag and foam inside ,iron frame outside.
Iron frame is used for all parts of the machine together and protect the macine .

RFQ

RFQ:
Q: How long is your delivery time?
A: Generally it is 10-15 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? Is it free or extra ?
A: Yes, we provide sample free, if you want the sample at your country then you need to bear door to door shipping cost of sample piece. If you want sample piece delivery in China then you need to bear sample piece cost and door to door delivery charges.

Q: What is your terms of payment ?
A: Order value<1000 USD, 100% in advance. Payment>1001 USD, 30% Advance and balance before despatch.

Q: Do you provide inspection report before despatch?
A:Yes, we do provide the inspection report before despatch.
Q6): Roll heat sublimation transfer machines
