Quick Details
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
2000lm
-
Color Temperature(CCT):
-
6500K
-
Input Voltage(V):
-
3
-
Lamp Luminous Efficiency(lm/w):
-
1000
-
Working Time (hours):
-
2
-
Product Weight（kg）:
-
0.13
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Convoy
-
Model Number:
-
C8+ / SR-FL0017
-
Brand:
-
Convoy
-
Mode:
-
C8+
-
Emitters:
-
Luminus SST40
-
Emitters Quantity:
-
1
-
Luminous Flux:
-
2000 LM
-
Circuitry:
-
Max 5A
-
Color Temperature:
-
3000 / 4000 / 5000 / 6500
-
Feature:
-
Lightweight
-
Switch Location:
-
Tail Cap
-
Certification:
-
ce
Quick Details
-
Battery Type:
-
1x18650
-
Use:
-
Emergency
-
Power Source:
-
rechargeable battery
-
Lamp Body Material:
-
Aluminum Alloy
-
Lamp Luminous Flux(lm):
-
2000lm
-
Color Temperature(CCT):
-
6500K
-
Input Voltage(V):
-
3
-
Lamp Luminous Efficiency(lm/w):
-
1000
-
Working Time (hours):
-
2
-
Product Weight（kg）:
-
0.13
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Convoy
-
Model Number:
-
C8+ / SR-FL0017
-
Brand:
-
Convoy
-
Mode:
-
C8+
-
Emitters:
-
Luminus SST40
-
Emitters Quantity:
-
1
-
Luminous Flux:
-
2000 LM
-
Circuitry:
-
Max 5A
-
Color Temperature:
-
3000 / 4000 / 5000 / 6500
-
Feature:
-
Lightweight
-
Switch Location:
-
Tail Cap
-
Certification:
-
ce

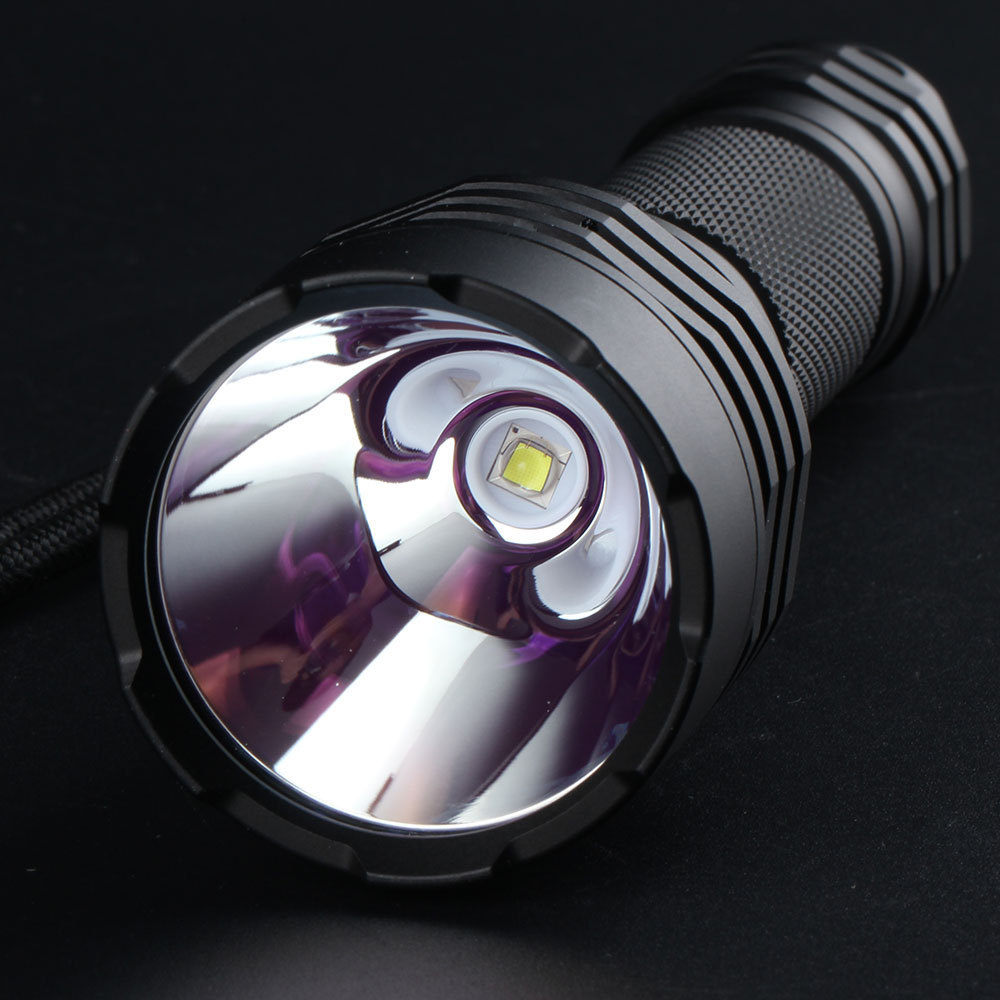

Convoy C8 + Met Luminus SST40 Koper DTP Board En Ar-coated Binnen 2000lm LED Flashlight
Main Features:
•
Aluminum alloy
Made of high quality aluminum alloy for excellent scratch and corrosion resistance
•
High quality lamp beads
SST40 lamp beads, no stroboscopic
• IPX8 waterproof rating ( Can not dive )
Specification
• Material: aluminum alloy
• Lamp beads: SST40
• Power: 15W
• Lumens: 2000lm
• Color temperature: 6500K
•
Power supply: 1 x 18650 battery ( without battery )
• Voltage: input voltage 3 - 4.2V
• Range: 300 - 500 meters
• Can remember the gear position
• Waterproof rating: IPX8
• Battery life: about 1 hour ( depending on battery capacity )
• Switch type and position: reverse switch, tail press
• Light cup: smooth cup
• Lens: double-coated glass lens
Mode instructions:(ramping driver)
Note:
1. The speed of half-press should be fast
2.flashlight flashes once per 6seconds at low voltage (3V or so),and shut down later
3.No temperature protection management,pls pay attention to the heat,
2.Driver instructions:(4modes)
Now we offer another driver version, which has a simple 4 modes for switching, which is very suitable for ordinary users.
modes : 0.1%-3%-30%-100% max current output is 5000mA
Its biggest advantage is that no frequency can be seen in any mode, and there is temperature management.
It can control the flashlight temperature not to exceed 55 degrees Celsius,
If the flashlight temperature is below 55 degrees Celsius, it will output full current. If it is above 55 degrees Celsius, it will constantly adjust the current so that the flashlight will not overheat.
