Quick Details
-
Brand Name:
-
SEA / DIJIANG / ZHONGJIANG
-
Model Number:
-
B668 2*1000mm
-
Product name:
-
Paddle Wheel Flow Switch
-
Material:
-
Plastic
-
Medium:
-
Liquid, water
-
Working temperature:
-
-40-150℃
-
Switch Voltage:
-
5-220V
-
Wire Length:
-
20CM
Quick Details
-
Type:
-
Water Flow Switch
-
Warranty:
-
No Warranty
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SEA / DIJIANG / ZHONGJIANG
-
Model Number:
-
B668 2*1000mm
-
Product name:
-
Paddle Wheel Flow Switch
-
Material:
-
Plastic
-
Medium:
-
Liquid, water
-
Working temperature:
-
-40-150℃
-
Switch Voltage:
-
5-220V
-
Wire Length:
-
20CM

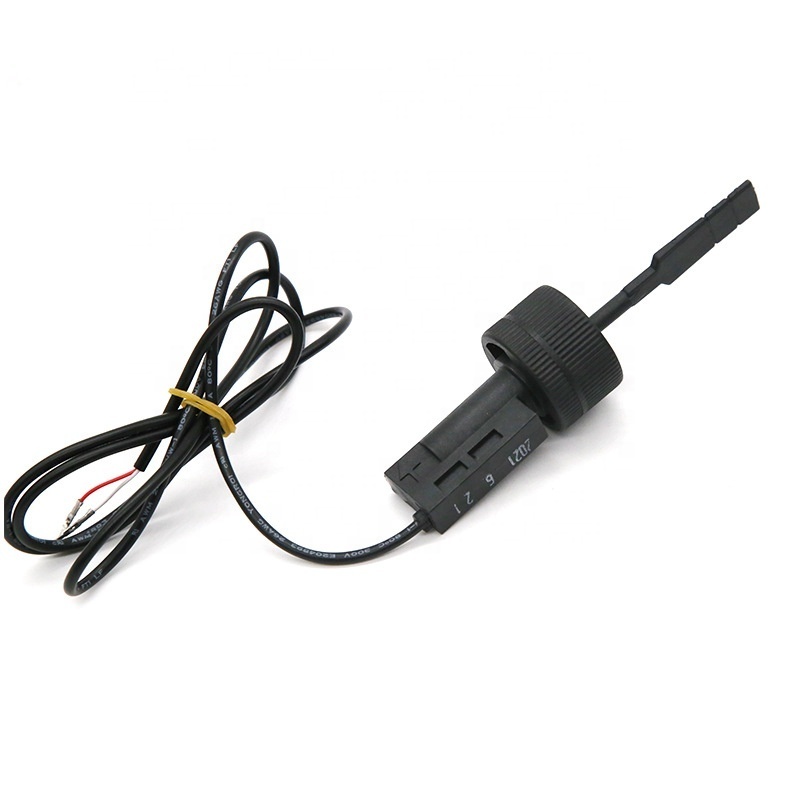

High Quality Mini Pump Water Heater Flow Sensor Switch Plastic Auto Control Switch 100V G3/4 Paddle Wheel Water Flow Switch B668
Product Name:Paddle Wheel Flow Switch Model No.:B668
1, Usage
2, Working Principal
When there is water flowing in the water flow switch, when the water flow rate is ≥1.0L/min, the magnetic core in the water flow switch is driven to be displaced by the water flow, and the magnetic core displacement drives the magnetic source to generate a magnetic control action to make the water flow switch output a “on” signal. The signal input device control system realizes the control function through the control system. When the water flow rate is less than the startup flow rate, the water flow switch outputs a “off” signal. The control system produces the opposite control effect as described above.
3, Working Parameter
| No. | Attribute | Parameter |
| 1 | Model No. | B668 |
| 2 | Product Name | Plastic ow Switch |
| 3 | Port Diameter | G3/4 |
| 4 | Switching Current | 0.5A |
| 5 | Switching Power | 10W |
| 6 | Switching Voltage | 100VDC |
| 7 | Switching Flow Range | 0.75-3L/min |
| 8 | Working temperature | 0-80℃ |
| 9 | Maximum water pressure | 300PSI |
| 10 | Service Life | 100,000 times |
4, Product Information
